Fulmination

04-24-2008, 11:05 PM

FULMINATION
by HINDYhat

(complies with the JESP standard)

Description:

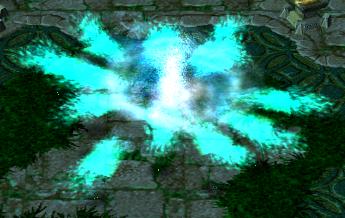

The hero explodes into 12 controllable and invulnerable water particles. After a certain time, each particle moves to a medium point and reforms the concerned hero.

Level 1 - Explodes at 400 units per second. Lasts 4 seconds.
Level 2 - Explodes at 550 units per second. Lasts 4.5 seconds.
Level 3 - Explodes at 700 units per second. Lasts 5 seconds.

Credits/Thanks to:

HINDYhat for scripting this spell.
redscores for being a good competitor.
Earth-Fury for teaching me alot about vJass.
All of the coders/assemblers who participated in the creation of Jass NewGen Pack.

Changelog

REMEMBER to adjust mana cost and cooldown to your needs. I left them null here for testing reasons!

IMPORTANT : This spell requires JassNewGenPack for vJass syntax! Click here to download JassNewGenPack : http://www.wc3campaigns.net/showthread.php?t=90999

Spell code:

scope Fulmination

    globals

        private constant integer ABILITY_RAWCODE = 'A000'
        // The rawcode of the casted Fulmination ability.
        private constant integer DUMMY_RAWCODE   = 'e000'
        // The "Water Particle"'s rawcode.

        private constant real FRAMERATE          = 40.0
        // The framerate (frames per second) of the main function.

        private constant real GRAVITY_ACCEL      = -600.0
        // Gravity's acceleration in wc3units per second per second.

        private constant integer PARTICLE_AMOUNT = 12
        // The amount of particles created per cast.

        private constant real INITIAL_VELOCITY   = 250.0
        // The initial velocity of each particle.
        private constant real INCR_VELOCITY      = 150.0
        // The increment in velocity of each particle based on hero level.

        private constant real INITIAL_DURATION   = 3.5
        // The initial duration of the spell.
        private constant real INCR_DURATION      = 0.5
        // The increment in duration of the spell based on hero level.

        private constant real FRICTION_COEFF     = 0.95
        // The coefficient in velocity par particles during ground collision.

        private constant real RESTITUTE_DURATION = 2.0
        // The time required for all particles to reassemble.

        private constant real INITIAL_HEIGHT     = 50.0
        // The initial created height offset for particles.

        private constant real PT_TARGET_SPEED    = 500.0
        // The speed at which particles are propulsed on point target orders.

        private constant real AOA_MINIMUM        = bj_PI/6.0
        // The minimum angle of attack towards which particles are projected on cast.
        private constant real AOA_MAXIMUM        = bj_PI/2.5
        // The maximum angle of attack towards which particles are projected on cast.

        private constant real COLLISION_RADIUS   = 4.0
        // The collision radius for particles and the ground.
        private constant string PARTICLE_FX      = "Abilities\\Weapons\\SeaElementalMissile\\SeaElementalMissile.mdl"
        // The particle model effect.
        private constant string ONCAST_FX        = "Objects\\Spawnmodels\\Naga\\NagaDeath\\NagaDeath.mdl"
        // The model effect displayed on the caster on cast.
        private constant string ONRESTITUTE_FX   = "Objects\\Spawnmodels\\Naga\\NagaDeath\\NagaDeath.mdl"
        // The model effect displayed on the caster on reassembly of particles.

    endglobals

//-----------------------------------------------------//
// ~~~~~~~~~~~~~~~~ DO NOT EDIT BELOW ~~~~~~~~~~~~~~~~ //
//-----------------------------------------------------//

private function Conditions takes nothing returns boolean
    return GetSpellAbilityId() == ABILITY_RAWCODE
endfunction

globals
    private location tloc
    private location tloc2
    private real minX
    private real minY
    private real maxX
    private real maxY
    private timer T
endglobals

private keyword main

private struct particleGroup
    unit caster
    effect array e[PARTICLE_AMOUNT]
    unit array dummy[PARTICLE_AMOUNT]
    real array xP[PARTICLE_AMOUNT]
    real array yP[PARTICLE_AMOUNT]
    real array zP[PARTICLE_AMOUNT]
    real array xV[PARTICLE_AMOUNT]
    real array yV[PARTICLE_AMOUNT]
    real array zV[PARTICLE_AMOUNT]
    trigger pointTarget
    real duration
    integer ID
    static particleGroup array P
    static integer COUNT = 0
    static particleGroup array P_D
    static integer COUNT_D = 0

    method onDestroy takes nothing returns nothing
        local integer i = 0
        loop
            exitwhen i >= PARTICLE_AMOUNT
            call DestroyEffect(this.e[i])
            set this.xV[i] = 0.0
            set this.yV[i] = 0.0
            call KillUnit(this.dummy[i])
            call ShowUnit(this.dummy[i], false)
            set i = i + 1
        endloop
        call DestroyTrigger(this.pointTarget)
        set particleGroup.COUNT = particleGroup.COUNT - 1
        set particleGroup.P[this.ID] = particleGroup.P[particleGroup.COUNT]
        set particleGroup.P[this.ID].ID = this.ID
        if particleGroup.COUNT == 0 then
            call PauseTimer(T)
        endif
    endmethod

    static method pointOrder takes nothing returns boolean
        local unit u = GetTriggerUnit()
        local particleGroup p = particleGroup(GetUnitUserData(u))
        local integer i = 0
        local real x = GetOrderPointX()
        local real y = GetOrderPointY()
        if p.duration > 0.0 then
            loop
                exitwhen i >= PARTICLE_AMOUNT
                if p.dummy[i] == u then
                    call MoveLocation(tloc, x, y)
                    set p.xV[i] = x - p.xP[i]
                    set p.yV[i] = y - p.yP[i]
                    set p.zV[i] = GetLocationZ(tloc) - p.zP[i]
                    set y = PT_TARGET_SPEED/(SquareRoot(p.xV[i]*p.xV[i] + p.yV[i]*p.yV[i] + p.zV[i]*p.zV[i])*FRAMERATE + 0.01)
                    set p.xV[i] = p.xV[i]*y
                    set p.yV[i] = p.yV[i]*y
                    set p.zV[i] = p.zV[i]*y
                    return false
                endif
                set i = i + 1
            endloop
        endif
        set u = null
        return false
    endmethod

    static method onInit takes nothing returns nothing
        set tloc = Location(0.0, 0.0)
        set tloc2 = Location(0.0, 0.0)
        set minX = GetRectMinX(bj_mapInitialPlayableArea)
        set minY = GetRectMinY(bj_mapInitialPlayableArea)
        set maxX = GetRectMaxX(bj_mapInitialPlayableArea)
        set maxY = GetRectMaxY(bj_mapInitialPlayableArea)
        set T = CreateTimer()
    endmethod

endstruct

private function main takes nothing returns nothing
    local integer i = 0
    local integer k = 0
    local particleGroup p
    local real x
    local real y
    local real z
    loop
        exitwhen i >= particleGroup.COUNT
        set p = particleGroup.P[i]
        if p.duration <= -1.0 then
            loop
                exitwhen k >= PARTICLE_AMOUNT
                set p.xP[k] = p.xP[k] + p.xV[k]
                set p.yP[k] = p.yP[k] + p.yV[k]
                set p.zP[k] = p.zP[k] + p.zV[k]
                call SetUnitX(p.dummy[k], p.xP[k])
                call SetUnitY(p.dummy[k], p.yP[k])
                call MoveLocation(tloc, p.xP[k], p.yP[k])
                set z = GetLocationZ(tloc)
                if p.zP[k] > z then
                    call SetUnitFlyHeight(p.dummy[k], p.zP[k] - z, 0.0)
                endif
                set k = k + 1
            endloop
            set p.duration = p.duration - 1.0/FRAMERATE
            if p.duration <= -1.0 - RESTITUTE_DURATION then
                call SetUnitPosition(p.caster, p.xP[0], p.yP[0])
                call ShowUnit(p.caster, true)
                if GetLocalPlayer() == GetOwningPlayer(p.caster) then
                    call ClearSelection()
                    call SelectUnit(p.caster, true)
                endif
                call DestroyEffect(AddSpecialEffectTarget(ONRESTITUTE_FX, p.caster, "origin"))
                set particleGroup.P_D[particleGroup.COUNT_D] = p
                set particleGroup.COUNT_D = particleGroup.COUNT_D + 1
            endif
        else
            loop
                exitwhen k >= PARTICLE_AMOUNT
                set p.zV[k] = p.zV[k] + GRAVITY_ACCEL/(FRAMERATE*FRAMERATE)
                set p.xP[k] = p.xP[k] + p.xV[k]
                set p.yP[k] = p.yP[k] + p.yV[k]
                set p.zP[k] = p.zP[k] + p.zV[k]
                if p.xP[k] < minX or p.yP[k] < minY or p.xP[k] > maxX or p.yP[k] > maxY then
                    set p.xP[k] = p.xP[k] - p.xV[k]
                    set p.yP[k] = p.yP[k] - p.yV[k]
                    set p.xV[k] = 0.0
                    set p.yV[k] = 0.0
                endif
                call MoveLocation(tloc, p.xP[k], p.yP[k])
                set z = GetLocationZ(tloc)
                call SetUnitX(p.dummy[k], p.xP[k])
                call SetUnitY(p.dummy[k], p.yP[k])
                call SetUnitFlyHeight(p.dummy[k], p.zP[k] - z, 0.0)
                if z > p.zP[k] then
                    set p.zP[k] = z
                    call MoveLocation(tloc, p.xP[k] - COLLISION_RADIUS, p.yP[k])
                    call MoveLocation(tloc2, p.xP[k] + COLLISION_RADIUS, p.yP[k])
                    set x = GetLocationZ(tloc) - GetLocationZ(tloc2)
                    call MoveLocation(tloc, p.xP[k], p.yP[k] - COLLISION_RADIUS)
                    call MoveLocation(tloc2, p.xP[k], p.yP[k] + COLLISION_RADIUS)
                    set y = GetLocationZ(tloc) - GetLocationZ(tloc2)
                    set z = -2.0*(p.xV[k]*x + p.yV[k]*y + p.zV[k]*2.0*COLLISION_RADIUS)/(x*x + y*y + 4.0*COLLISION_RADIUS*COLLISION_RADIUS)
                    set p.xV[k] = FRICTION_COEFF*(p.xV[k] + x*z)
                    set p.yV[k] = FRICTION_COEFF*(p.yV[k] + y*z)
                    set p.zV[k] = FRICTION_COEFF*(p.zV[k] + 2.0*COLLISION_RADIUS*z)
                endif
                set k = k + 1
            endloop
            set p.duration = p.duration - 1.0/FRAMERATE
            if p.duration <= 0.0 then
                set x = p.xP[0]
                set y = p.yP[0]
                set k = 1
                loop
                    exitwhen k >= PARTICLE_AMOUNT
                    set x = x + p.xP[k]
                    set y = y + p.yP[k]
                    call IssueImmediateOrder(p.dummy[k], "stop")
                    call UnitAddAbility(p.dummy[k], 'Aloc')
                    set k = k + 1
                endloop
                set x = x/PARTICLE_AMOUNT
                set y = y/PARTICLE_AMOUNT
                call MoveLocation(tloc, x, y)
                set z = GetLocationZ(tloc)
                set k = 0
                loop
                    exitwhen k >= PARTICLE_AMOUNT
                    set p.xV[k] = (x - p.xP[k])/(RESTITUTE_DURATION*FRAMERATE)
                    set p.yV[k] = (y - p.yP[k])/(RESTITUTE_DURATION*FRAMERATE)
                    set p.zV[k] = (z + INITIAL_HEIGHT - p.zP[k])/(RESTITUTE_DURATION*FRAMERATE)
                    set k = k + 1
                endloop
                set p.duration = -1.0
            endif
        endif
        set k = 0
        set i = i + 1
    endloop
    set i = 0
    loop
        exitwhen i >= particleGroup.COUNT_D
        call particleGroup.P_D[i].destroy()
        set i = i + 1
    endloop
    set particleGroup.COUNT_D = 0
endfunction

private function Actions takes nothing returns nothing
    local particleGroup p = particleGroup.create()
    local integer i = 0
    local unit caster = GetTriggerUnit()
    local player owner = GetOwningPlayer(caster)
    local integer level = GetUnitAbilityLevel(caster, ABILITY_RAWCODE)
    local real speed = (INITIAL_VELOCITY + level*INCR_VELOCITY)/FRAMERATE
    local real yaw
    local real aoa
    local real cos
    local real x = GetUnitX(caster)
    local real y = GetUnitY(caster)
    local real z
    call MoveLocation(tloc, x, y)
    set z = GetLocationZ(tloc)
    set p.pointTarget = CreateTrigger()
    call SelectUnit(caster, GetLocalPlayer() != owner)
    loop
        exitwhen i >= PARTICLE_AMOUNT
        set yaw = i*360.0/PARTICLE_AMOUNT
        set p.dummy[i] = CreateUnit(owner, DUMMY_RAWCODE, x, y, yaw)
        set p.xP[i] = x
        set p.yP[i] = y
        call UnitAddAbility(p.dummy[i], 'Amrf')
        call UnitRemoveAbility(p.dummy[i], 'Amrf')
        call UnitAddAbility(p.dummy[i], 'Aloc')
        call ShowUnit(p.dummy[i], false)
        call UnitRemoveAbility(p.dummy[i], 'Aloc')
        call ShowUnit(p.dummy[i], true)
        call SelectUnit(p.dummy[i], GetLocalPlayer() == owner)
        call SetUnitFlyHeight(p.dummy[i], INITIAL_HEIGHT + GetUnitFlyHeight(caster), 0.0)
        set p.e[i] = AddSpecialEffectTarget(PARTICLE_FX, p.dummy[i], "origin")
        set p.zP[i] = z + GetUnitFlyHeight(p.dummy[i])
        set aoa = GetRandomReal(AOA_MINIMUM, AOA_MAXIMUM)
        set cos = Cos(aoa)*speed
        set yaw = yaw*bj_DEGTORAD
        set p.xV[i] = cos*Cos(yaw)
        set p.yV[i] = cos*Sin(yaw)
        set p.zV[i] = Sin(aoa)*speed
        call TriggerRegisterUnitEvent(p.pointTarget, p.dummy[i], EVENT_UNIT_ISSUED_POINT_ORDER)
        call SetUnitUserData(p.dummy[i], integer(p))
        set i = i + 1
    endloop
    call TriggerAddCondition(p.pointTarget, Filter(function particleGroup.pointOrder))
    set p.caster = caster
    call ShowUnit(caster, false)
    call DestroyEffect(AddSpecialEffect(ONCAST_FX, x, y))
    set p.duration = INITIAL_DURATION + level*INCR_DURATION
    set p.ID = particleGroup.COUNT
    set particleGroup.P[particleGroup.COUNT] = p
    set particleGroup.COUNT = particleGroup.COUNT + 1
    if particleGroup.COUNT == 1 then
        call TimerStart(T, 1.0/FRAMERATE, true, function main)
    endif
endfunction

public function InitTrig takes nothing returns nothing
    local trigger trig = CreateTrigger()
    call TriggerRegisterAnyUnitEventBJ(trig, EVENT_PLAYER_UNIT_SPELL_EFFECT)
    call TriggerAddCondition(trig, Condition(function Conditions))
    call TriggerAddAction(trig, function Actions)
    call Preload(PARTICLE_FX)
    call Preload(ONCAST_FX)
    call Preload(ONRESTITUTE_FX)
endfunction

endscope

Attached Files

Fulmination.w3x (51.7 KB)

04-25-2008, 06:54 PM	#3
Rising_Dusk	Spherical coordinates in a WC3 spell, man, this is going to be a blast to go through this weekend.

04-25-2008, 11:21 PM	#4
HINDYhat	I hope that was a good thing xD

05-01-2008, 04:17 PM

Rising_Dusk

JASS:

struct particleGroup

You should use a private struct. Otherwise, I have MUI concerns that I'll have to test when I get home, but it looks pretty clean and well-made. If it passes the MUI concern when I get home, I can move it on.

Oh, and does this comply with the JESP Manifest? It looks like it does, all you'd need is to put the JESP manifest into your map in a disabled trigger. I think all spells should comply with JESP if they can since it's a great and maleable standard for spells.

05-01-2008, 05:43 PM

HINDYhat

Yes it does comply with the standards. I'll update it now.

About the private struct, I simply forgot xD. I also think it's MUI, but I haven't tested it to death.

EDIT: Hmmm, making the struct private forbids me from referring to a particleGroup type object inside function main. I placed function main below the struct, and made a keyword for it. Works now. Also, tested the MUI part, and it works fine.

05-02-2008, 02:44 PM	#7
Rising_Dusk	Works for MUI, runs clean, JESP manifest in testmap, read me and implementation instructions check... I dare say approved, good sir.

05-02-2008, 06:08 PM	#8
HINDYhat	That was quick! :D Thanks for the approval.

05-02-2008, 07:50 PM	#9
Na_Dann_Ma_GoGo	Woah such a nice spell. This is pretty awesome And so many units are moved without any lag, and they bounce and stuff. Really, really nice. How about adding a damage function at the point where the unit is recreated?

05-02-2008, 08:24 PM

#10

moyack

Quote:

Originally Posted by Na_Dann_Ma_GoGO

Woah such a nice spell. This is pretty awesome

And so many units are moved without any lag, and they bounce and stuff. Really, really nice. How about adding a damage function at the point where the unit is recreated?

That's overcomplicating the spell... as is is very good, because it's mainly focused for escaping or fast displacement, and spells of this type are not common in the database.

05-03-2008, 09:32 AM

#11

grim001

Cool spell concept. I have a few minor suggestions.

1.) When the water bits reform, you should automatically reselect the elemental.

2.) Location() and CreateTimer() can be used inside a global block so if you want they can be removed from onInit.

3.) There is no point to using an animation timer faster than 40 updates per second. Seriously, try it, I recommend defaulting to 40 updates per sec.

05-03-2008, 10:51 AM	#12
HINDYhat	1) Possibly. 2) They can be used in a global block indeed, but someone told me it's bad to initialize globals in that way (forgot who, maybe I misunderstood too). 3) Easily configurable.

05-03-2008, 11:23 AM

#13

Alexander244

Really nice idea for a spell.

A couple of things:

When the water particles are close together at the end of the spell the hero should reform a bit faster.
On spell cast if you are selecting other units you don't get control of all the created units;
1. Clear selection on cast
2. Have a dummy unit for which orders are intercepted and appropriate movement alterations given to the all the projectiles (this would be harder, but imo better).

About 2; Global init has an op-limit (which includes all the globals in the common.j and blizzard.j). By initializing them elsewhere you avoid the potential for this to cause problems.

05-03-2008, 10:55 PM

#14

grim001

Quote:

Originally Posted by Alexander244

Global init has an op-limit (which includes all the globals in the common.j and blizzard.j). By initializing them elsewhere you avoid the potential for this to cause problems.

Well unless you do some incredible number of things on init you will get nowhere close to the op limit so it seems senseless to do extra typing for that.

05-04-2008, 12:08 PM	#15
rulerofiron99	Holding down Alt I could see 2mm x 2mm hit point bars, which looks bad. Bake them full or remove them! Anyway, nice spell.
