[system] Smooth Movement System

//******************************************************************************************
//*
//* Smooth movement script 2.0 By Moyack. 2009.
//* ¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯
//*
//* If you use this script, please be nice and give me credits.
//*

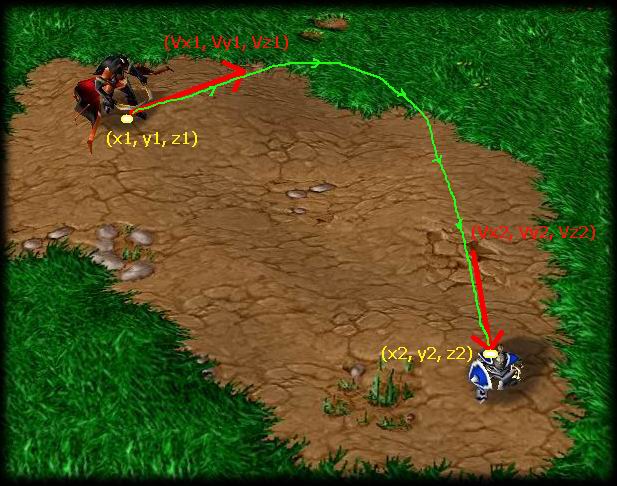

//* This library has been designed to simulate movement defined by kinematic parameters.
//*
//* You only need to define the Projectile unit, the position and velocity vectors,
//* and the time the Projectile will fly. The rest is managed, controlled and destroyed
//* automatically by the library.
//*
//* Additionally, you can define custom "events" when the Projectile starts, moves and ends,
//* very convenient to set and control the Projectile behaviour.
//*
//* How to use:
//* ¯¯¯¯¯¯¯¯¯¯¯
//* This library has two data types, the vector and the Projectile structs.
//*
//*  Vector Struct: This struct allows you to group data in the way (X, Y, Z). The vector
//*  type allows the following methods:
//*
//*   - create( real x, real y, real z) returns vector
//*   - setdata(real x, real y, real z) returns nothing
//*   - destroy() returns nothing
//*
//*  The first method allocates a new vector variable and sets at the same time data on it.
//*  The second method allows you to change the data of the vector. The third method destroys
//*  the vector. Example:
//*
//*  function VecStuff takes nothing returns nothing
//*      local vector v = vector.create(0., 10., 20.) // creates a vector [0, 10, 20]
//*      call v.setdata(15., 20., -10.) // changes the values in the vector v to [15, 20, -10]
//*      call v.destroy() // destroys the vector, freeing the memory used.
//*  endfunction
//*
//*  Projectile Struct: This one is the one in charge to do the nice things. This structs
//*  allows the following methods:
//*
//* Aknowledges:
//* ¯¯¯¯¯¯¯¯¯¯¯¯
//*  - Mad[Lion] because he proposed the problem that inspire me to make this library.
//*  - Pipedream because he had the same apporach, but opposite :) and for the idea of
//*    partial factoring.
//*  - Vexorian, PitzerMike and all the people involved in the development of vJASS.
//*    without this tool, this idea would be still just that: an idea.
//*
//******************************************************************************************

library SmoothMovSys
//***************************************************************************************************************
//* Configuration globals
globals
    private constant real dt = 0.022 // sets the timer value
endglobals
//***************************************************************************************************************
//* End configuration globals
globals
    private unit       LastProj    = null // Stores temporally the last Projectile created / destroyed
    private vector     StartPos           // Stores the start position of the Projectile.
    private vector     StartVel           // Stores the start velocity of the Projectile.
    private vector     LastPos            // Stores the last position of the Projectile.
    private vector     LastVel            // Stores the last velocity of the Projectile.
    private Projectile MovingProj         // Stores the evaluating Projectile. Only for use when
endglobals                                // it's called on the CodeMove function

struct vector // struct used to manage vectors LOL!!!
    real x = 0.
    real y = 0.
    real z = 0.

    static method create takes real x, real y, real z returns vector
        local vector v = vector.allocate()
        set v.x = x
        set v.y = y
        set v.z = z
        return v
    endmethod

    method setdata takes real x, real y, real z returns nothing
        set .x = x
        set .y = y
        set .z = z
    endmethod
endstruct

private constant function GetA takes real x0, real x1, real v0, real v1, real tf returns real
    return (tf * (v1-v0) - 2 * (x1 - x0 - v0*tf)) / (tf*tf*tf)
endfunction

private constant function GetB takes real x0, real x1, real v0, real v1, real tf returns real
    return (3 * (x1 - x0 - v0*tf) - tf * (v1 - v0)) / (tf*tf)
endfunction

private constant function GetX takes real t, real A, real B, real C, real D returns real
    return D + t*(C + t*(B + t*A)) // thanks Pipedream for the idea :)
endfunction

private constant function GetV takes real t, real A, real B, real C returns real
    return (3*A*t + 2*B)*t + C // thanks Pipedream for the idea :)
endfunction

struct Projectile
    private static timer T = CreateTimer()
    private static region reg = null
    private static trigger TRG = CreateTrigger()
    static group ProjGroup = CreateGroup()
    private static integer counter = 0
    private static Projectile array Projectiles
    private integer i
    unit p = null// Projectile unit
    vector pi    // initial and final position coordinates
    vector pf
    vector vi    // initial and final velocity coordinates
    vector vf
    real tf = 0. // time that the Projectile will take to reach the final point
    vector vp    // variable position and velocity vars
    vector vv
    real t = 0.
    vector A     // Constant Values used for calculation stuff
    vector B
    // Miscelaneous data
    boolean DV // this flag indicates if the Projectile is destroyed with the input vectors
    boolean pU // this flag indicates if the unit used as projectile will be paused or not
    trigger CodeMove //Stores the function name that will be evaluated every time any Projectile is moving
    trigger CodeEnd  //Stores the function name used when the Projectile dies.

    method SetData takes unit p, vector pi, vector pf, vector vi, vector vf, real t, boolean DV, boolean pU returns nothing
        local real Ax = GetA(pi.x, pf.x, vi.x, vf.x, t)
        local real Ay = GetA(pi.y, pf.y, vi.y, vf.y, t)
        local real Az = GetA(pi.z, pf.z, vi.z, vf.z, t)
        local real Bx = GetB(pi.x, pf.x, vi.x, vf.x, t)
        local real By = GetB(pi.y, pf.y, vi.y, vf.y, t)
        local real Bz = GetB(pi.z, pf.z, vi.z, vf.z, t)

        set .p = p
        call UnitAddAbility(p, 'Amrf')
        call UnitRemoveAbility(p, 'Amrf')
        call GroupAddUnit(Projectile.ProjGroup, p)
        if pU then
            call PauseUnit(p, true)
        endif
        set .pi = pi
        set .pf = pf
        set .vi = vi
        set .vf = vf
        set .A = vector.create(Ax, Ay, Az)
        set .B = vector.create(Bx, By, Bz)
        set .vp = vector.create(0., 0., 0.)
        set .vv = vector.create(0., 0., 0.)
        if t <= 0. then
            set .tf = dt
        else
            set .tf = t
        endif
        set .DV = DV
        set .pU = pU
    endmethod

    private method update takes nothing returns nothing
        local real x
        local real y
        local real z
        if .CodeMove != null then
            set MovingProj = this
            call TriggerExecute(.CodeMove)
        endif
        set .t = .t + dt
        set x = GetX(.t, .A.x, .B.x, .vi.x, .pi.x)
        set y = GetX(.t, .A.y, .B.y, .vi.y, .pi.y)
        set z = GetX(.t, .A.z, .B.z, .vi.z, .pi.z)
        call .vp.setdata(x, y, z)
        set x = GetV(.t, .A.x, .B.x, .vi.x)
        set y = GetV(.t, .A.y, .B.y, .vi.y)
        set z = GetV(.t, .A.z, .B.z, .vi.z)
        call .vv.setdata(x, y, z)
    endmethod

    method SetStartCode takes code start returns nothing
        call TriggerClearActions(Projectile.TRG)
        if start != null then
            set LastProj = .p
            call StartPos.setdata(.pi.x, .pi.y, .pi.z)
            call StartVel.setdata(.vi.x, .vi.y, .vi.z)
            call LastPos.setdata(.pf.x, .pf.y, .pf.z)
            call LastVel.setdata(.vf.x, .vf.y, .vf.z)
            call TriggerAddAction(Projectile.TRG, start)
        else
            call TriggerAddAction(Projectile.TRG, function DoNothing)
        endif
        call TriggerExecute(Projectile.TRG)
    endmethod

    method SetMoveCode takes code move returns nothing
        if .CodeMove == null then
            set .CodeMove = CreateTrigger()
        else
            call TriggerClearActions(.CodeMove)
        endif
        if move != null then
            call TriggerAddAction(.CodeMove, move)
        else
            call TriggerAddAction(.CodeMove, function DoNothing)
        endif
    endmethod

    method SetEndCode takes code end returns nothing
        if .CodeEnd == null then
            set .CodeEnd = CreateTrigger()
        else
            call TriggerClearActions(.CodeEnd)
        endif
        if end != null then
            call TriggerAddAction(.CodeEnd, end)
        else
            call TriggerAddAction(.CodeEnd, function DoNothing)
        endif
    endmethod

    method GetVelocity takes nothing returns vector
        local vector v = vector.create(0,0,0)
        local real x = GetV(.t, .A.x, .B.x, .vi.x)
        local real y = GetV(.t, .A.y, .B.y, .vi.y)
        local real z = GetV(.t, .A.z, .B.z, .vi.z)
        call v.setdata(x, y, z)
        return v
    endmethod

    method GetPosition takes nothing returns vector
        return vector.create(GetUnitX(.p), GetUnitY(.p), GetUnitFlyHeight(.p))
    endmethod

    private method onDestroy takes nothing returns nothing
        call GroupRemoveUnit(Projectile.ProjGroup, .p)
        if .pU then
            call PauseUnit(.p, false)
        endif
        set LastProj = .p
        set .p = null
        call StartPos.setdata(.pi.x, .pi.y, .pi.z)
        call StartVel.setdata(.vi.x, .vi.y, .vi.z)
        call LastPos.setdata(.pf.x, .pf.y, .pf.z)
        call LastVel.setdata(.vf.x, .vf.y, .vf.z)
        if .CodeEnd != null then
            call TriggerExecute(.CodeEnd)
        endif
        if .DV then
            call .pi.destroy()
            call .pf.destroy()
            call .vi.destroy()
            call .vf.destroy()
        endif
        call .A.destroy()
        call .B.destroy()
        call .vp.destroy()
        call .vv.destroy()
        set Projectile.counter = Projectile.counter - 1
        set Projectile.Projectiles[Projectile.counter].i = .i
        set Projectile.Projectiles[.i] = Projectile.Projectiles[Projectile.counter]
        if Projectile.counter == 0 then
            call PauseTimer(Projectile.T)
        endif
    endmethod

    private static method Loop takes nothing returns nothing
        local integer i = 0
        loop
            exitwhen i >= Projectile.counter
            call Projectile.Projectiles[i].update()
            if Projectile.Projectiles[i].t > Projectile.Projectiles[i].tf or not IsPointInRegion(Projectile.reg, Projectile.Projectiles[i].vp.x, Projectile.Projectiles[i].vp.y) then
                // destroys the Projectile data if it finished its time or if it's going to leave the playable map area
                call Projectile.Projectiles[i].destroy()
            else // updates the location and angle facing of the unit
                call SetUnitX(Projectile.Projectiles[i].p, Projectile.Projectiles[i].vp.x)
                call SetUnitY(Projectile.Projectiles[i].p, Projectile.Projectiles[i].vp.y)
                call SetUnitFlyHeight(Projectile.Projectiles[i].p, Projectile.Projectiles[i].vp.z, 0.)
            endif
            set i = i + 1
        endloop
    endmethod

    static method create takes unit p, vector pi, vector pf, vector vi, vector vf, real t, boolean DestroyVectors, boolean pauseUnit returns Projectile
        local Projectile pr = Projectile.allocate()
        call pr.SetData(p, pi, pf, vi, vf, t, DestroyVectors, pauseUnit)
        set pr.i = Projectile.counter
        set Projectile.Projectiles[Projectile.counter] = integer(pr)
        set Projectile.counter = Projectile.counter + 1
        if Projectile.counter == 1 then
            call TimerStart(Projectile.T, dt, true, function Projectile.Loop)
        endif
        return pr
    endmethod

    static method createSpherical takes unit p, vector pi, vector pf, vector vsi, vector vsf, real t, boolean DestroyVectors, boolean pauseUnit returns Projectile
    // this method allows you to define the speed vectors in spherical coordinates [r, t, f]
    // where r is the vector magnitude
    //       t is the angle in XY plane
    //       f is the angle in the plane defined by the vector R and the Z axis
    // ALL the angles are in RADIANS
    // when the Projectile is created, all the entered vectors will be changed to cartesian system
        call vsi.setdata(vsi.x * Cos(vsi.z) * Cos(vsi.y), vsi.x * Cos(vsi.z) * Sin(vsi.y), vsi.x * Sin(vsi.z))
        call vsf.setdata(vsf.x * Cos(vsf.z) * Cos(vsf.y), vsf.x * Cos(vsf.z) * Sin(vsf.y), vsf.x * Sin(vsf.z))
        return Projectile.create(p, pi, pf, vsi, vsf, t, DestroyVectors, pauseUnit)
    endmethod

    private static method onInit takes nothing returns nothing
        set Projectile.reg = CreateRegion()
        call RegionAddRect(Projectile.reg, bj_mapInitialPlayableArea)
        set StartPos = vector.create(0,0,0)
        set StartVel = vector.create(0,0,0)
        set LastPos = vector.create(0,0,0)
        set LastVel = vector.create(0,0,0)
    endmethod
endstruct

// functions used to get the the unit Projectile and the vectors in custom triggers
// those functions are to be used when the unit starts and stops being a Projectile

function GetUnitProjectile takes nothing returns unit
    return LastProj
endfunction

function GetInitPos takes nothing returns vector
    return vector.create(StartPos.x, StartPos.y, StartPos.z)
endfunction

function GetInitVel takes nothing returns vector
    return vector.create(StartVel.x, StartVel.y, StartVel.z)
endfunction

function GetLastPos takes nothing returns vector
    return vector.create(LastPos.x, LastPos.y, LastPos.z)
endfunction

function GetLastVel takes nothing returns vector
    return vector.create(LastVel.x, LastVel.y, LastVel.z)
endfunction

function GetMovingProjectile takes nothing returns Projectile
    // only to use when you need to get the projectile data in a CodeMove function
    return MovingProj
endfunction

function IsUnitProjectile takes unit u returns boolean
    return IsUnitInGroup(u, Projectile.ProjGroup)
endfunction

endlibrary

library ProjSys initializer InitMovSys requires BoolexprUtils, SmoothMovSys
//***************************************************************************************************************
//* Configuration globals
globals
    private constant string MovDustFX   = "Objects\\Spawnmodels\\Undead\\ImpaleTargetDust\\ImpaleTargetDust.mdl"
    private constant string MovSplashFX = "Abilities\\Spells\\Other\\CrushingWave\\CrushingWaveDamage.mdl"
endglobals
//***************************************************************************************************************
//* End configuration globals

globals
    private constant rect TreeReg = Rect(0,0,1,1)
endglobals

private function KillTrees takes nothing returns nothing
    local destructable d = GetEnumDestructable()
    call KillDestructable(d)
    set d = null
endfunction

private function RemoveTreesInRange takes real x, real y, real r returns nothing
    call SetRect(TreeReg, x-r, y-r, x+r, y+r)
    call EnumDestructablesInRect(TreeReg, BOOLEXPR_TRUE, function KillTrees)
endfunction

private function MoveKnockBackBasic takes nothing returns nothing
    local Projectile P = GetMovingProjectile()
    local real x = GetUnitX(P.p)
    local real y = GetUnitY(P.p)
    if GetUnitFlyHeight(P.p) <= 0. then
        if not IsTerrainPathable(x, y, PATHING_TYPE_WALKABILITY) then
            call DestroyEffect(AddSpecialEffect(MovDustFX, x, y))
        elseif not IsTerrainPathable(x, y, PATHING_TYPE_FLOATABILITY) then
            call DestroyEffect(AddSpecialEffect(MovSplashFX, x, y))
        endif
        if IsUnitType(P.p, UNIT_TYPE_GROUND) == true and IsTerrainPathable(x, y, PATHING_TYPE_WALKABILITY) then
            call SetUnitPosition(P.p, x, y)
            call P.destroy()
        endif
    endif
endfunction

private function MoveKnockBack takes nothing returns nothing
    local Projectile P = GetMovingProjectile()
    call MoveKnockBackBasic()
    call RemoveTreesInRange(GetUnitX(P.p), GetUnitY(P.p), 100.)
endfunction

private function MoveMissile takes nothing returns nothing
    local Projectile p = GetMovingProjectile()
    call SetUnitFacing(p.p, Atan2(p.vv.y, p.vv.x) * bj_RADTODEG)
endfunction

private function InitMovSys takes nothing returns nothing
    call Preload(MovDustFX)
    call Preload(MovSplashFX)
endfunction

private function ParabolicA takes real h, real d returns real
    // returns the coeficient A in the parabolic function
    // h, d, and x are in the same units of distance in WC3, which is more comfortable to use :)
    if d > 0. then
        return -4 * h / (d * d)
    else
        return 0.
    endif
endfunction

private function ParabolicB takes real h, real d returns real
    // returns the coeficient B in the parabolic function
    // h, d, and x are in the same units of distance in WC3, which is more comfortable to use :)
    // NOTE: THIS VALUE IS THE TAN OF THE PROJECTILE ANGLE
    if d > 0. then
        return 4 * h / d
    else
        return 0.
    endif
endfunction

//***********************************************************************************************
//* public usage functions
//***********************************************************************************************
function Atan3 takes real x1, real y1, real x2, real y2 returns real
    local real a = Atan2(y2 - y1, x2 - x1)
    if a >= 0. then
        return a
    else
        return 2 * bj_PI + a
    endif
endfunction

function Dist takes real x1, real y1, real x2, real y2 returns real
    local real dx = x2 - x1
    local real dy = y2 - y1
    return SquareRoot( dx * dx + dy * dy )
endfunction

function GetParabolicAngle takes real h, real d returns real
    return Atan(ParabolicB(h, d))
endfunction

function GetUnitsAngle takes unit a, unit b returns real
    return Atan3(GetUnitX(a), GetUnitY(a), GetUnitX(b), GetUnitY(b))
endfunction

function GetUnitsDist takes unit a, unit b returns real
    return Dist(GetUnitX(a), GetUnitY(a), GetUnitX(b), GetUnitY(b))
endfunction

function GetUnitProjPoint takes unit u, real angle, real dist returns location
    local real x = GetUnitX(u) + dist * Cos(angle)
    local real y = GetUnitY(u) + dist * Sin(angle)
    return Location(x, y)
endfunction

//******************************************************************************
//* KnockBack Function:
//*   - unit t:      the unit that will become into a projectile
//*   - real dist:   the distance that the projectile will move
//*   - real dir:    the angle in the plane XY which indicates the movemente direction
//*   - real height: the max height that the projectile will fly
//*   - real speed:  the initial projectile speed. If height = 0 then the projectile will change the speed until reach 0
//*   - Code InitCode: the name of the function that will be evaluated when the projectile starts moving
//*   - Code EndCode: the name of the function that will be evaluated when the projectile stops.
//*   - boolean DestroyDestructables: Indicates if the knockbacked units will destroy nearby trees while they move

function KnockBack takes unit t, real dist, real dir, real height, real speed, code InitCode, code EndCode, boolean DestroyDestructables returns nothing
    local real a = GetParabolicAngle(height, dist)
    local real tm = dist / (speed * Cos(a))
    local vector p1 = vector.create(GetUnitX(t), GetUnitY(t), GetUnitFlyHeight(t))
    local vector p2 = vector.create(p1.x + dist * Cos(dir), p1.y + dist * Sin(dir), p1.z)
    local vector vi
    local vector vf
    local Projectile P
    if height > 0. then
        set vi = vector.create(speed, dir, a)
        set vf = vector.create(vi.x, vi.y, -vi.z)
    else
        set vi = vector.create(speed, dir, 0.)
        set vf = vector.create(0., 0., 0.)
    endif
    set P = Projectile.createSpherical(t, p1, p2, vi, vf, tm, true, true)
    call P.SetStartCode(InitCode)
    if DestroyDestructables then
        call P.SetMoveCode(function MoveKnockBack)
    else
        call P.SetMoveCode(function MoveKnockBackBasic)
    endif
    call P.SetEndCode(EndCode)
endfunction

endlibrary
