Boomerang!

06-08-2009, 07:11 AM

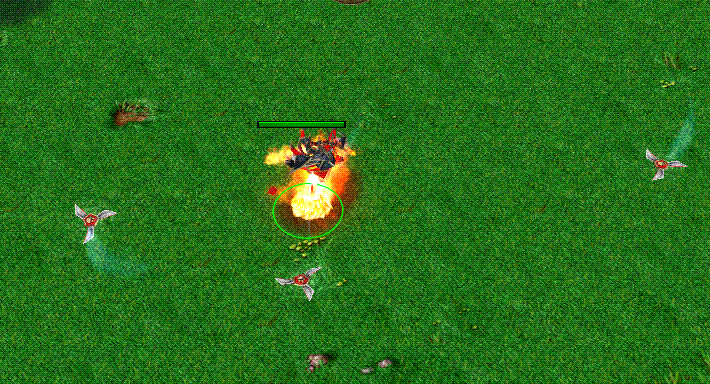

Throw a deadly boomerang at your enemies.

This uses vJass (JassHelper 0.9.H.0 and up), GroupUtils, xefx, DestructableLib and IsTerrainWalkable.

In-Game-Commands

Changelog

Code (Array version) + Credits:

library_once Boomerang initializer Init requires GroupUtils, xefx, DestructableLib, IsTerrainWalkable

private keyword Boomerang // DO NOT TOUCH; configuration is below

// Credits:
//  - Ciebron for the inspiration
//  - -JonNny for reporting some bugs
//  - Atideva for reporting a bug
//  - Rising_Dusk for his GroupUtils library
//  - Anitarf for his IsTerrainWalkable library
//  - Vexorian for JassHelper and xe
//  - PipeDream for Grimoire
//  - PitzerMike for JassNewGenPack and DestructableLib
//  - MindWorX for JassNewGenPack
//  - SFilip for TESH

globals
    private constant    real                    TICK                    = 1./40 // granulation of boomerang movement
    private constant    integer                 AID                     = 'A000' // the ability triggering this spell
    private             real            array   DAMAGE                  // damage dealt by the boomerang to units it hits
    private             real            array   DAMAGE_ABSORPTION       // the damage dealt is reduced by this much everytime the boomerang hits a unit or a tree
    private constant    boolean                 DAMAGE_ABSORPTION_RELATIVE = true // is DAMAGE_ABSORPTION to be treated as an absolute value or a value relative to the current damage
    private constant    real                    DAMAGE_BOUNDARY         = 10. // once the damage is lower or equal to this, the boomerang stops flying
    private constant    string                  BOOMERANG_MODEL         = "Abilities\\Weapons\\SentinelMissile\\SentinelMissile.mdl" // this is the model representing the boomerang
    private constant    real                    BOOMERANG_COLLSIZE      = 96. // the AoE in which units are damaged by the boomerang
    private constant    real                    BOOMERANG_SIZE          = 1.25 // the scaling of the boomerang
    private constant    real                    BOOMERANG_HEIGHT        = 64. // the Z height of the boomerang
    private constant    real            array   BOOMERANG_SPEED         // the speed at which the boomerang moves // due to limitations this is only an approximation
    private constant    real                    BOOMERANG_FOCUS         = 2. // the higher this number the more focused is the path of the boomerang. Any value greater than 0 should work. Values below 2 might not look so good.
    private constant    boolean                 ALLOW_MULTIPLE_HITS     = true // if this is true, the boomerang can hit units more than once on his path
    private constant    boolean                 USE_RIGHT_BOOMERANG     = true // just avoid setting both to false, okay?
    private constant    boolean                 USE_LEFT_BOOMERANG      = true
    private constant    boolean                 COLLIDE_WITH_GROUND     = true // do boomerangs collide with unwalkable terrain?
    private             real            array   MIN_RANGE               // minimum throwing distance for the boomerang
    private constant    boolean                 IGNORE_TREES            = false // if true, the boomerang will just fly through the trees without doing anything
    private constant    boolean                 KILL_TREES              = true // if true, trees are killed once the boomerang hits one, if this is false, the boomerang stops flying
    private constant    string                  HIT_FX                  = "Objects\\Spawnmodels\\Critters\\Albatross\\CritterBloodAlbatross.mdl" // when the boomerang hits a unit, this effect is spawned on the unit hit
    private constant    string                  HIT_FX_ATTPT            = "chest" // the beforementioned effect will be attached to this point
    private constant    attacktype              ATTACK_TYPE             = ATTACK_TYPE_MAGIC // the attack type of the damage the boomerang deals
    private constant    damagetype              DAMAGE_TYPE             = DAMAGE_TYPE_MAGIC // the damage type of the damage the boomerang deals
    private constant    weapontype              WEAPON_TYPE             = WEAPON_TYPE_METAL_MEDIUM_SLICE // sound when boomerang hits a unit
endglobals

private function Damage takes integer level returns real // PROXY
    return DAMAGE[level]
endfunction

private function Damage_Absorption takes integer level returns real // PROXY
    return DAMAGE_ABSORPTION[level]
endfunction

private function Boomerang_Speed takes integer level returns real // PROXY
    return BOOMERANG_SPEED[level]
endfunction

private function Min_Range takes integer level returns real // PROXY
    return MIN_RANGE[level]
endfunction

private function SetUpSpellData takes nothing returns nothing
    set DAMAGE[1] = 200. // initially deals 200 damage
    set DAMAGE[2] = 275.
    set DAMAGE[3] = 350.

    set DAMAGE_ABSORPTION[1] = 0.16 // lowers damage dealt by 16% of current damage.
    set DAMAGE_ABSORPTION[2] = 0.12
    set DAMAGE_ABSORPTION[3] = 0.08

    set BOOMERANG_SPEED[1] = 600.
    set BOOMERANG_SPEED[2] = 600.
    set BOOMERANG_SPEED[3] = 600.

    set MIN_RANGE[1] = 200.
    set MIN_RANGE[2] = 200.
    set MIN_RANGE[3] = 200.
endfunction

private function ValidTarget takes unit target, Boomerang this returns boolean
    return IsUnitType(target, UNIT_TYPE_DEAD) == false /*
    */ and IsUnitType(target, UNIT_TYPE_STRUCTURE) == false /*
    */ and IsUnitType(target, UNIT_TYPE_MAGIC_IMMUNE) == false /*
    */ and not IsUnitInGroup(target, this.damagedUnits) /*
    */ and IsUnitEnemy(target, GetOwningPlayer(this.caster))
endfunction

// This is shit. Don't touch shit.

globals
    private rect R
    private Boomerang tmpBoomerang

    private constant boolean ANGLE_DIRECTION_FORWARD = true
    private constant boolean ANGLE_DIRECTION_REVERSE = false
endglobals

private struct Boomerang
    unit caster
    unit target
    integer level

    real angleCurrent
    boolean angleDirection

    real targetX
    real targetY

    xefx dummy
    boolean active
    real damage
    group damagedUnits

    boolean overTree
    boolean markedForDestruction

    static boolexpr DamageFilter
    static boolexpr TreeFilter
    static boolexpr LightTreeFilter

    private integer index

    private static thistype array Structs
    private static timer T = CreateTimer()
    private static integer Count = 0

    private static method onInit takes nothing returns nothing
        set DamageFilter = Filter(function thistype.DamageFilterFunc)
        set TreeFilter = Filter(function thistype.TreeFilterFunc)
        set LightTreeFilter = Filter(function thistype.LightTreeFilterFunc)
    endmethod

    method reduceDamage takes nothing returns nothing
        static if DAMAGE_ABSORPTION_RELATIVE then
            set damage = damage * (1 - Damage_Absorption(level))
        else
            set damage = damage - Damage_Absorption(level)
        endif

        if damage <= DAMAGE_BOUNDARY then
            set markedForDestruction = true
        endif
    endmethod

    method onDestroy takes nothing returns nothing
        set caster = null
        set target = null
        call dummy.destroy()
        call ReleaseGroup(damagedUnits)
        // clean your struct here
        set Count = Count - 1
        set Structs[index] = Structs[Count]
        set Structs[index].index = .index
        if Count == 0 then
            call PauseTimer(T)
        endif
    endmethod

    static method UnitDistCheck takes nothing returns nothing
        local unit u = GetEnumUnit()
        local real dx = tmpBoomerang.dummy.x - GetUnitX(u)
        local real dy = tmpBoomerang.dummy.y - GetUnitY(u)

        if (dx*dx + dy*dy) > (BOOMERANG_COLLSIZE * BOOMERANG_COLLSIZE) then
            call GroupRemoveUnit(tmpBoomerang.damagedUnits, u)
        endif
        set u = null
    endmethod

    static method DamageFilterFunc takes nothing returns boolean
        local unit u = GetFilterUnit()

        if tmpBoomerang.markedForDestruction then
            return false
        endif

        // check if unit is a valid target for damage
        if ValidTarget(u, tmpBoomerang) then
            // damage the unit; if the unit for some reason cant be damaged, dont continue
            if UnitDamageTarget(tmpBoomerang.caster, u, tmpBoomerang.damage, false, false, ATTACK_TYPE, DAMAGE_TYPE, WEAPON_TYPE) then
                call DestroyEffect(AddSpecialEffectTarget(HIT_FX, u, HIT_FX_ATTPT))
                call GroupAddUnit(tmpBoomerang.damagedUnits, u)

                call tmpBoomerang.reduceDamage()
            endif
        endif

        set u = null
        return false
    endmethod

    static method TreeFilterFunc takes nothing returns boolean
        local destructable d = GetFilterDestructable()
        local real x
        local real y
        local real dx
        local real dy

        if tmpBoomerang.markedForDestruction then
            // short circuit logic after the damage boundary has been reached
            return false
        endif

        // filter out dead and non-tree destructables
        if (not IsDestructableDead(d)) and IsDestructableTree(d) then
            set tmpBoomerang.overTree = true

            set x = GetWidgetX(d)
            set y = GetWidgetY(d)

            set dx = tmpBoomerang.dummy.x - x
            set dy = tmpBoomerang.dummy.y - y

            // tree must be inside the collision radius
            if (dx*dx + dy*dy) <= (BOOMERANG_COLLSIZE * BOOMERANG_COLLSIZE) then
                static if KILL_TREES then
                    call KillDestructable(d)

                    call tmpBoomerang.reduceDamage()
                else
                    // if Trees may not be destroyed, destroy the boomerang instead
                    set tmpBoomerang.markedForDestruction = true
                endif
            endif
        endif

        set d = null
        return false
    endmethod

    static method LightTreeFilterFunc takes nothing returns boolean
        local destructable d = GetFilterDestructable()

        if not IsDestructableDead(d) and IsDestructableTree(d) then
            set tmpBoomerang.overTree = true
        endif

        set d = null
        return false
    endmethod

    private static method Callback takes nothing returns nothing
        local integer i = Count - 1
        local thistype this
        local real x
        local real y
        local real launchX
        local real launchY
        local real deltaX
        local real deltaY
        local real distance
        local real angleBase
        local real angleIncrement
        local real offset

        loop
            exitwhen i < 0
            set this = Structs[i]
            set tmpBoomerang = this
            //
            // make the boomerang home, even if the caster moves
            if this.target != null then
                set this.targetX = GetUnitX(this.target)
                set this.targetY = GetUnitY(this.target)
            endif

            set launchX = GetUnitX(this.caster)
            set launchY = GetUnitY(this.caster)

            set deltaX = this.targetX - launchX
            set deltaY = this.targetY - launchY

            set distance = SquareRoot(deltaX*deltaX + deltaY*deltaY)
            set angleBase = Atan2(deltaY, deltaX) - ((bj_PI / BOOMERANG_FOCUS) / 2)
            // functions for moving the boomerang:
            // r(a)=distance*Sin(BOOMERANG_FOCUS*a) // a is the angle and goes from 90 to 0 // distance from center point
            // x(a)=Cos(a)*r(a) // x and y coordinates in relation to the location it was cast.
            // y(a)=Sin(a)*r(a) // note that i inlined some things to allow casting the boomerang in all directions from any point on the map
            set offset = distance * Sin(BOOMERANG_FOCUS * this.angleCurrent)

            set x = launchX + (Cos(angleBase + this.angleCurrent) * offset)
            set y = launchY + (Sin(angleBase + this.angleCurrent) * offset)

            set this.dummy.x = x
            set this.dummy.y = y

            static if ALLOW_MULTIPLE_HITS then
                call ForGroup(this.damagedUnits, function thistype.UnitDistCheck)
            endif

            call GroupEnumUnitsInRange(ENUM_GROUP, x, y, BOOMERANG_COLLSIZE, DamageFilter)

            static if not IGNORE_TREES then
                set this.overTree = false

                call MoveRectTo(R, x, y)
                call EnumDestructablesInRect(R, TreeFilter, null)
            endif

            static if COLLIDE_WITH_GROUND then
                static if IGNORE_TREES then
                    set this.overTree = false

                    call MoveRectTo(R, x, y)
                    call EnumDestructablesInRect(R, LightTreeFilter, null)
                endif

                if not IsTerrainWalkable(x, y) and not this.overTree then
                    set this.markedForDestruction = true
                endif
            endif

            set angleIncrement = TICK * ((bj_PI / BOOMERANG_FOCUS) / 2) * (Boomerang_Speed(this.level) / distance)
            if this.angleDirection == ANGLE_DIRECTION_FORWARD then
                set this.angleCurrent = this.angleCurrent + angleIncrement
            else
                set this.angleCurrent = this.angleCurrent - angleIncrement
            endif

            if this.angleCurrent <= 0 or this.angleCurrent >= (bj_PI / BOOMERANG_FOCUS) or IsUnitType(this.caster, UNIT_TYPE_DEAD) == true then
                set this.markedForDestruction = true
            endif

            if this.markedForDestruction then
                call this.destroy()
            endif

            set i = i - 1
        endloop
    endmethod

    static method create takes unit caster, unit target, real targetX, real targetY, boolean direction returns thistype
        local thistype this = allocate()
        local real dx
        local real dy
        local real distance
        local real angleBase

        set this.caster = caster
        if target == null or target == caster then
            set this.target = null
            set this.targetX = targetX
            set this.targetY = targetY
        else
            set this.target = target
            set this.targetX = GetUnitX(target)
            set this.targetY = GetUnitY(target)
        endif

        set dx = this.targetX - GetUnitX(caster)
        set dy = this.targetY - GetUnitY(caster)

        set this.level = GetUnitAbilityLevel(this.caster, AID)
        set distance = SquareRoot(dx*dx + dy*dy)
        if distance == 0.0 then
            set angleBase = (GetUnitFacing(this.caster) * bj_DEGTORAD)
        else
            set angleBase = Atan2(dy, dx)
        endif

        if distance < Min_Range(this.level) then
            // enforce the minimum distance
            set distance = Min_Range(this.level)
            set this.targetX = GetUnitX(caster) + (distance * Cos(angleBase))
            set this.targetY = GetUnitY(caster) + (distance * Sin(angleBase))
        endif

        if direction == ANGLE_DIRECTION_FORWARD then
            set this.angleCurrent = 0.
        else
            set this.angleCurrent = (bj_PI / BOOMERANG_FOCUS)
        endif
        set this.angleDirection = direction

        set this.damage = Damage(this.level)

        set this.dummy = xefx.create(GetUnitX(caster), GetUnitY(caster), 0)
        set this.dummy.fxpath = BOOMERANG_MODEL
        set this.dummy.scale = BOOMERANG_SIZE
        set this.dummy.z = BOOMERANG_HEIGHT

        set this.damagedUnits = NewGroup()

        set this.overTree = false
        set this.markedForDestruction = false

        // initialize the struct here
        set Structs[Count] = this
        set this.index = Count
        if Count == 0 then
            call TimerStart(T, TICK, true, function thistype.Callback)
        endif
        set Count = Count + 1

        return this
    endmethod
endstruct

private function SpellCond takes nothing returns boolean
    return GetSpellAbilityId() == AID
endfunction

private function SpellAction takes nothing returns nothing
    local unit caster = GetTriggerUnit()
    local unit target = GetSpellTargetUnit()
    local real targetX = GetSpellTargetX()
    local real targetY = GetSpellTargetY()

    static if USE_RIGHT_BOOMERANG then
        call Boomerang.create(caster, target, targetX, targetY, ANGLE_DIRECTION_FORWARD)
    endif

    static if USE_LEFT_BOOMERANG then
        call Boomerang.create(caster, target, targetX, targetY, ANGLE_DIRECTION_REVERSE)
    endif
endfunction

private function Init takes nothing returns nothing
    local trigger t=CreateTrigger()
    call TriggerRegisterAnyUnitEventBJ(t, EVENT_PLAYER_UNIT_SPELL_EFFECT)
    call TriggerAddCondition(t, Condition(function SpellCond))
    call TriggerAddAction(t, function SpellAction)

    call SetUpSpellData()

    set R = Rect(0, 0, 2 * BOOMERANG_COLLSIZE, 2 * BOOMERANG_COLLSIZE)
endfunction

endlibrary

Code (Formula version) + Credits:

library_once Boomerang initializer Init requires GroupUtils, xefx, DestructableLib, IsTerrainWalkable

private keyword Boomerang // DO NOT TOUCH; configuration is below

// Credits:
//  - Ciebron for the inspiration
//  - -JonNny for reporting some bugs
//  - Atideva for reporting a bug
//  - Rising_Dusk for his GroupUtils library
//  - Anitarf for his IsTerrainWalkable library
//  - Vexorian for JassHelper and xe
//  - PipeDream for Grimoire
//  - PitzerMike for JassNewGenPack and DestructableLib
//  - MindWorX for JassNewGenPack
//  - SFilip for TESH

globals
    private constant    real                    TICK                    = 1./40 // granulation of boomerang movement
    private constant    integer                 AID                     = 'A000' // the ability triggering this spell
    private constant    boolean                 DAMAGE_ABSORPTION_RELATIVE = true // is DAMAGE_ABSORPTION to be treated as an absolute value or a value relative to the current damage
    private constant    real                    DAMAGE_BOUNDARY         = 10. // once the damage is lower or equal to this, the boomerang stops flying
    private constant    string                  BOOMERANG_MODEL         = "Abilities\\Weapons\\SentinelMissile\\SentinelMissile.mdl" // this is the model representing the boomerang
    private constant    real                    BOOMERANG_COLLSIZE      = 96. // the AoE in which units are damaged by the boomerang
    private constant    real                    BOOMERANG_SIZE          = 1.25 // the scaling of the boomerang
    private constant    real                    BOOMERANG_HEIGHT        = 64. // the Z height of the boomerang
    private constant    real                    BOOMERANG_FOCUS         = 2. // the higher this number the more focused is the path of the boomerang. Any value greater than 0 should work. Values below 2 might not look so good.
    private constant    boolean                 ALLOW_MULTIPLE_HITS     = true // if this is true, the boomerang can hit units more than once on his path
    private constant    boolean                 USE_RIGHT_BOOMERANG     = true // just avoid setting both to false, okay?
    private constant    boolean                 USE_LEFT_BOOMERANG      = true
    private constant    boolean                 COLLIDE_WITH_GROUND     = true // do boomerangs collide with unwalkable terrain?
    private constant    boolean                 IGNORE_TREES            = false // if true, the boomerang will just fly through the trees without doing anything
    private constant    boolean                 KILL_TREES              = true // if true, trees are killed once the boomerang hits one, if this is false, the boomerang stops flying
    private constant    string                  HIT_FX                  = "Objects\\Spawnmodels\\Critters\\Albatross\\CritterBloodAlbatross.mdl" // when the boomerang hits a unit, this effect is spawned on the unit hit
    private constant    string                  HIT_FX_ATTPT            = "chest" // the beforementioned effect will be attached to this point
    private constant    attacktype              ATTACK_TYPE             = ATTACK_TYPE_MAGIC // the attack type of the damage the boomerang deals
    private constant    damagetype              DAMAGE_TYPE             = DAMAGE_TYPE_MAGIC // the damage type of the damage the boomerang deals
    private constant    weapontype              WEAPON_TYPE             = WEAPON_TYPE_METAL_MEDIUM_SLICE // sound when boomerang hits a unit
endglobals

private function Damage takes integer level returns real
    return 125. + level * 75
endfunction

private function Damage_Absorption takes integer level returns real
    return 0.2 - level * 0.04
endfunction

private function Boomerang_Speed takes integer level returns real
    return 600.
endfunction

private function Min_Range takes integer level returns real
    return 200.
endfunction

private function ValidTarget takes unit target, Boomerang this returns boolean
    return IsUnitType(target, UNIT_TYPE_DEAD) == false /*
    */ and IsUnitType(target, UNIT_TYPE_STRUCTURE) == false /*
    */ and IsUnitType(target, UNIT_TYPE_MAGIC_IMMUNE) == false /*
    */ and not IsUnitInGroup(target, this.damagedUnits) /*
    */ and IsUnitEnemy(target, GetOwningPlayer(this.caster))
endfunction

// This is shit. Don't touch shit.

globals
    private rect R
    private Boomerang tmpBoomerang

    private constant boolean ANGLE_DIRECTION_FORWARD = true
    private constant boolean ANGLE_DIRECTION_REVERSE = false
endglobals

private struct Boomerang
    unit caster
    unit target
    integer level

    real angleCurrent
    boolean angleDirection

    real targetX
    real targetY

    xefx dummy
    boolean active
    real damage
    group damagedUnits

    boolean overTree
    boolean markedForDestruction

    static boolexpr DamageFilter
    static boolexpr TreeFilter
    static boolexpr LightTreeFilter

    private integer index

    private static thistype array Structs
    private static timer T = CreateTimer()
    private static integer Count = 0

    private static method onInit takes nothing returns nothing
        set DamageFilter = Filter(function thistype.DamageFilterFunc)
        set TreeFilter = Filter(function thistype.TreeFilterFunc)
        set LightTreeFilter = Filter(function thistype.LightTreeFilterFunc)
    endmethod

    method reduceDamage takes nothing returns nothing
        static if DAMAGE_ABSORPTION_RELATIVE then
            set damage = damage * (1 - Damage_Absorption(level))
        else
            set damage = damage - Damage_Absorption(level)
        endif

        if damage <= DAMAGE_BOUNDARY then
            set markedForDestruction = true
        endif
    endmethod

    method onDestroy takes nothing returns nothing
        set caster = null
        set target = null
        call dummy.destroy()
        call ReleaseGroup(damagedUnits)
        // clean your struct here
        set Count = Count - 1
        set Structs[index] = Structs[Count]
        set Structs[index].index = .index
        if Count == 0 then
            call PauseTimer(T)
        endif
    endmethod

    static method UnitDistCheck takes nothing returns nothing
        local unit u = GetEnumUnit()
        local real dx = tmpBoomerang.dummy.x - GetUnitX(u)
        local real dy = tmpBoomerang.dummy.y - GetUnitY(u)

        if (dx*dx + dy*dy) > (BOOMERANG_COLLSIZE * BOOMERANG_COLLSIZE) then
            call GroupRemoveUnit(tmpBoomerang.damagedUnits, u)
        endif
        set u = null
    endmethod

    static method DamageFilterFunc takes nothing returns boolean
        local unit u = GetFilterUnit()

        if tmpBoomerang.markedForDestruction then
            return false
        endif

        // check if unit is a valid target for damage
        if ValidTarget(u, tmpBoomerang) then
            // damage the unit; if the unit for some reason cant be damaged, dont continue
            if UnitDamageTarget(tmpBoomerang.caster, u, tmpBoomerang.damage, false, false, ATTACK_TYPE, DAMAGE_TYPE, WEAPON_TYPE) then
                call DestroyEffect(AddSpecialEffectTarget(HIT_FX, u, HIT_FX_ATTPT))
                call GroupAddUnit(tmpBoomerang.damagedUnits, u)

                call tmpBoomerang.reduceDamage()
            endif
        endif

        set u = null
        return false
    endmethod

    static method TreeFilterFunc takes nothing returns boolean
        local destructable d = GetFilterDestructable()
        local real x
        local real y
        local real dx
        local real dy

        if tmpBoomerang.markedForDestruction then
            // short circuit logic after the damage boundary has been reached
            return false
        endif

        // filter out dead and non-tree destructables
        if (not IsDestructableDead(d)) and IsDestructableTree(d) then
            set tmpBoomerang.overTree = true

            set x = GetWidgetX(d)
            set y = GetWidgetY(d)

            set dx = tmpBoomerang.dummy.x - x
            set dy = tmpBoomerang.dummy.y - y

            // tree must be inside the collision radius
            if (dx*dx + dy*dy) <= (BOOMERANG_COLLSIZE * BOOMERANG_COLLSIZE) then
                static if KILL_TREES then
                    call KillDestructable(d)

                    call tmpBoomerang.reduceDamage()
                else
                    // if Trees may not be destroyed, destroy the boomerang instead
                    set tmpBoomerang.markedForDestruction = true
                endif
            endif
        endif

        set d = null
        return false
    endmethod

    static method LightTreeFilterFunc takes nothing returns boolean
        local destructable d = GetFilterDestructable()

        if not IsDestructableDead(d) and IsDestructableTree(d) then
            set tmpBoomerang.overTree = true
        endif

        set d = null
        return false
    endmethod

    private static method Callback takes nothing returns nothing
        local integer i = Count - 1
        local thistype this
        local real x
        local real y
        local real launchX
        local real launchY
        local real deltaX
        local real deltaY
        local real distance
        local real angleBase
        local real angleIncrement
        local real offset

        loop
            exitwhen i < 0
            set this = Structs[i]
            set tmpBoomerang = this
            //
            // make the boomerang home, even if the caster moves
            if this.target != null then
                set this.targetX = GetUnitX(this.target)
                set this.targetY = GetUnitY(this.target)
            endif

            set launchX = GetUnitX(this.caster)
            set launchY = GetUnitY(this.caster)

            set deltaX = this.targetX - launchX
            set deltaY = this.targetY - launchY

            set distance = SquareRoot(deltaX*deltaX + deltaY*deltaY)
            set angleBase = Atan2(deltaY, deltaX) - ((bj_PI / BOOMERANG_FOCUS) / 2)
            // functions for moving the boomerang:
            // r(a)=distance*Sin(BOOMERANG_FOCUS*a) // a is the angle and goes from 90 to 0 // distance from center point
            // x(a)=Cos(a)*r(a) // x and y coordinates in relation to the location it was cast.
            // y(a)=Sin(a)*r(a) // note that i inlined some things to allow casting the boomerang in all directions from any point on the map
            set offset = distance * Sin(BOOMERANG_FOCUS * this.angleCurrent)

            set x = launchX + (Cos(angleBase + this.angleCurrent) * offset)
            set y = launchY + (Sin(angleBase + this.angleCurrent) * offset)

            set this.dummy.x = x
            set this.dummy.y = y

            static if ALLOW_MULTIPLE_HITS then
                call ForGroup(this.damagedUnits, function thistype.UnitDistCheck)
            endif

            call GroupEnumUnitsInRange(ENUM_GROUP, x, y, BOOMERANG_COLLSIZE, DamageFilter)

            static if not IGNORE_TREES then
                set this.overTree = false

                call MoveRectTo(R, x, y)
                call EnumDestructablesInRect(R, TreeFilter, null)
            endif

            static if COLLIDE_WITH_GROUND then
                static if IGNORE_TREES then
                    set this.overTree = false

                    call MoveRectTo(R, x, y)
                    call EnumDestructablesInRect(R, LightTreeFilter, null)
                endif

                if not IsTerrainWalkable(x, y) and not this.overTree then
                    set this.markedForDestruction = true
                endif
            endif

            set angleIncrement = TICK * ((bj_PI / BOOMERANG_FOCUS) / 2) * (Boomerang_Speed(this.level) / distance)
            if this.angleDirection == ANGLE_DIRECTION_FORWARD then
                set this.angleCurrent = this.angleCurrent + angleIncrement
            else
                set this.angleCurrent = this.angleCurrent - angleIncrement
            endif

            if this.angleCurrent <= 0 or this.angleCurrent >= (bj_PI / BOOMERANG_FOCUS) or IsUnitType(this.caster, UNIT_TYPE_DEAD) == true then
                set this.markedForDestruction = true
            endif

            if this.markedForDestruction then
                call this.destroy()
            endif

            set i = i - 1
        endloop
    endmethod

    static method create takes unit caster, unit target, real targetX, real targetY, boolean direction returns thistype
        local thistype this = allocate()
        local real dx
        local real dy
        local real distance
        local real angleBase

        set this.caster = caster
        if target == null or target == caster then
            set this.target = null
            set this.targetX = targetX
            set this.targetY = targetY
        else
            set this.target = target
            set this.targetX = GetUnitX(target)
            set this.targetY = GetUnitY(target)
        endif

        set dx = this.targetX - GetUnitX(caster)
        set dy = this.targetY - GetUnitY(caster)

        set this.level = GetUnitAbilityLevel(this.caster, AID)
        set distance = SquareRoot(dx*dx + dy*dy)
        if distance == 0.0 then
            set angleBase = (GetUnitFacing(this.caster) * bj_DEGTORAD)
        else
            set angleBase = Atan2(dy, dx)
        endif

        if distance < Min_Range(this.level) then
            // enforce the minimum distance
            set distance = Min_Range(this.level)
            set this.targetX = GetUnitX(caster) + (distance * Cos(angleBase))
            set this.targetY = GetUnitY(caster) + (distance * Sin(angleBase))
        endif

        if direction == ANGLE_DIRECTION_FORWARD then
            set this.angleCurrent = 0.
        else
            set this.angleCurrent = (bj_PI / BOOMERANG_FOCUS)
        endif
        set this.angleDirection = direction

        set this.damage = Damage(this.level)

        set this.dummy = xefx.create(GetUnitX(caster), GetUnitY(caster), 0)
        set this.dummy.fxpath = BOOMERANG_MODEL
        set this.dummy.scale = BOOMERANG_SIZE
        set this.dummy.z = BOOMERANG_HEIGHT

        set this.damagedUnits = NewGroup()

        set this.overTree = false
        set this.markedForDestruction = false

        // initialize the struct here
        set Structs[Count] = this
        set this.index = Count
        if Count == 0 then
            call TimerStart(T, TICK, true, function thistype.Callback)
        endif
        set Count = Count + 1

        return this
    endmethod
endstruct

private function SpellCond takes nothing returns boolean
    return GetSpellAbilityId() == AID
endfunction

private function SpellAction takes nothing returns nothing
    local unit caster = GetTriggerUnit()
    local unit target = GetSpellTargetUnit()
    local real targetX = GetSpellTargetX()
    local real targetY = GetSpellTargetY()

    static if USE_RIGHT_BOOMERANG then
        call Boomerang.create(caster, target, targetX, targetY, ANGLE_DIRECTION_FORWARD)
    endif

    static if USE_LEFT_BOOMERANG then
        call Boomerang.create(caster, target, targetX, targetY, ANGLE_DIRECTION_REVERSE)
    endif
endfunction

private function Init takes nothing returns nothing
    local trigger t=CreateTrigger()
    call TriggerRegisterAnyUnitEventBJ(t, EVENT_PLAYER_UNIT_SPELL_EFFECT)
    call TriggerAddCondition(t, Condition(function SpellCond))
    call TriggerAddAction(t, function SpellAction)

    set R = Rect(0, 0, 2 * BOOMERANG_COLLSIZE, 2 * BOOMERANG_COLLSIZE)
endfunction

endlibrary

Attached Images


Attached Files

Boomerang_1.4.2.w3x (58.4 KB)

06-08-2009, 09:12 AM	#2
wraithseeker	I heard somewhere that doing GroupClear before a ENUM_GROUP is safer, is that true? The way you name your struct members make it really hard to understand, couldn't you just name them properly? Like s.d and etc

06-08-2009, 11:07 AM	#3
Deaod	calling GroupEnums clears the groups. And i didnt add comments to the declaration of the members for nothing. Read them. The members are properly named (d for distance, a for angle, ...).

06-08-2009, 12:53 PM	#4
Sunwarrior25	Can this work with items? (thinking Legend of Zelda) Can you move about while a boomerang is in the air? Can we limit the number of boomerangs a given hero/item can have flying in the air at a time?

06-08-2009, 01:32 PM	#5
Deaod	yes, i think you can add abilities to items which in turn can trigger off this ability. yes, you can (blinking will cause some visual glitches, but nothing screws up when blinking). yes, use unit indexing and assign each index a number of currently active boomerangs. You will have to add code for that yourself though.

06-15-2009, 05:45 PM	#6
Deaod	Version 1.3.0 Someone asked for a few additional features.

07-01-2009, 03:05 PM

Rising_Dusk

Critiques...

JASS:

    private function SetUpDAMAGE takes nothing returns nothing
        set DAMAGE[1]=200. // initially deals 200 damage
        set DAMAGE[2]=275.
        set DAMAGE[3]=350.
    endfunction

    private function Damage takes integer level returns real // PROXY
        return DAMAGE[level]
    endfunction

I think that should be replaced with the following, which gets rid of the unnecessary call at Init. I like formulas more anyways.

JASS:

    private constant function Damage takes integer level returns real
        return 125.+75.*level
    endfunction

Similar as above for Damage Absorption.
Similar as above for Minimum Range.
The rest looks okay, but it's entirely possible I missed something due to it being tough to read and follow in a lot of places. You should comment the bulk of your code more in the future, it would really help in navigating the trickier parts.

07-01-2009, 03:15 PM	#8
akolyt0r	if you alread critisize deaods config function(s), you should tell him to use constant functions aswell (+3% speed 0.o)

07-01-2009, 04:04 PM

busterkomo

Quote:

Originally Posted by Rising_Dusk

Critiques...

JASS:

    private function SetUpDAMAGE takes nothing returns nothing
        set DAMAGE[1]=200. // initially deals 200 damage
        set DAMAGE[2]=275.
        set DAMAGE[3]=350.
    endfunction

    private function Damage takes integer level returns real // PROXY
        return DAMAGE[level]
    endfunction

I think that should be replaced with the following, which gets rid of the unnecessary call at Init. I like formulas more anyways.

JASS:

    private function Damage takes integer level returns real
        return 125.+75.*level
    endfunction

Similar as above for Damage Absorption.
Similar as above for Minimum Range.
The rest looks okay, but it's entirely possible I missed something due to it being tough to read and follow in a lot of places. You should comment the bulk of your code more in the future, it would really help in navigating the trickier parts.

Well, formulas are good because they're a lot cleaner than arrays. On the other hand, you might not want the increments to be linear.

Quote:

if you alread critisize deaods config function(s), you should tell him to use constant functions aswell (+3% speed 0.o)

A 3% speed boost is extremely negligible.

07-01-2009, 04:20 PM

#10

Rising_Dusk

Quote:

Originally Posted by busterkomo

Well, formulas are good because they're a lot cleaner than arrays. On the other hand, you might not want the increments to be linear.

You can always generate a function fitting N points in a curve. It's very easy with only 3 levels, and still easy even with 5. After that it gets a bit ugly, yeah, so I can see the value of an array. Also, accessing array values is negligibly faster than doing the arithmetic.

07-01-2009, 04:30 PM	#11
akolyt0r	if its no problem to get bonus speed, it should be done no matter how negligible the speed bonus is !

07-02-2009, 01:20 PM

#12

Deaod

Dusk, linear is still okay...quadratic is a bit tricky and cubic even more so. But i wont spend half an hour finding a formula fitting my spell values. I will instead use the array method. Easier (for more complex formulae (quadratic and up (nested parentheses ftw))), faster (accessing an array is faster) and still provides you with the possibility to use formulae. Also, IIRC all config functions should get inlined (either by JH or by Vex's Optimizer).

What were the tough parts for you?

07-02-2009, 03:49 PM

#13

Rising_Dusk

Quote:

Originally Posted by Deaod

Speed as an argument is lame. When you are down to comparing basic arithmetic to array accessing in a spell then you need to shoot yourself. I care more about code readability and user safety. It is much easier for a user to screw up that array thing by changing the index to something unusable or renaming the array thinking that he is allowed to do that than it is for him to screw up a formula that will return a passable value for a given level no matter what.

And if it takes someone half an hour to generate a formula to hit several known points, I dare venture that someone is an idiot.

Quote:

Originally Posted by Deaod

What were the tough parts for you?

Hidden information:

Most of the uncommented functions with numerous nested conditionals that aren't explained, so I can't easily check their veracity. Variable names come into play for those boolean vars here.

JASS:

        private static method DamageFilterFunc takes nothing returns boolean
        local unit u=GetFilterUnit()
            if IsUnitType(u, UNIT_TYPE_DEAD)==false and IsUnitType(u, UNIT_TYPE_STRUCTURE)==false and IsUnitType(u, UNIT_TYPE_MAGIC_IMMUNE)==false and (not IsUnitInGroup(u, tmps.g)) and IsUnitEnemy(u, GetOwningPlayer(tmps.c)) then
                if tmpd==1 then
                    if UnitDamageTarget(tmps.c, u, tmps.dam1, false, false, ATTACK_TYPE, DAMAGE_TYPE, WEAPON_TYPE) then
                        call DestroyEffect(AddSpecialEffectTarget(HIT_FX, u, HIT_FX_ATTPT))
                        call GroupAddUnit(tmps.g, u)
                        if DAMAGE_ABSORPTION_RELATIVE then
                            set tmps.dam1=tmps.dam1*(1-Damage_Absorption(tmps.level))
                        else
                            set tmps.dam1=tmps.dam1-Damage_Absorption(tmps.level)
                        endif
                        if tmps.dam1<=DAMAGE_BOUNDARY then
                            call tmps.dum1.destroy()
                            set tmps.d1a=false
                            if not tmps.d2a then
                                call tmps.destroy()
                            endif
                        endif
                    endif
                elseif tmpd==2 then
                    if UnitDamageTarget(tmps.c, u, tmps.dam2, false, false, ATTACK_TYPE, DAMAGE_TYPE, WEAPON_TYPE) then
                        call DestroyEffect(AddSpecialEffectTarget(HIT_FX, u, HIT_FX_ATTPT))
                        call GroupAddUnit(tmps.g, u)
                        if DAMAGE_ABSORPTION_RELATIVE then
                            set tmps.dam2=tmps.dam2*(1-Damage_Absorption(tmps.level))
                        else
                            set tmps.dam2=tmps.dam2-Damage_Absorption(tmps.level)
                        endif
                        if tmps.dam2<=DAMAGE_BOUNDARY then
                            call tmps.dum2.destroy()
                            set tmps.d2a=false
                            if not tmps.d1a then
                                call tmps.destroy()
                            endif
                        endif
                    endif
                endif
            endif
            set u=null
            return false
        endmethod

        private static method TreeFilterFunc takes nothing returns boolean
        local destructable d=GetFilterDestructable()
        local real x
        local real y
        local real bx
        local real by
            if (not IsDestructableDead(d)) and IsDestructableTree(d) then
                set x=GetWidgetX(d)
                set y=GetWidgetY(d)
                if tmpd==1 then
                    set bx=tmps.dum1.x
                    set by=tmps.dum1.y
                    if (((x-bx)*(x-bx))+((y-by)*(y-by)))<=BOOMERANG_COLLSIZE*BOOMERANG_COLLSIZE then
                        if KILL_TREES then
                            call KillDestructable(d)
                            if DAMAGE_ABSORPTION_RELATIVE then
                                set tmps.dam1=tmps.dam1*(1-Damage_Absorption(tmps.level))
                            else
                                set tmps.dam1=tmps.dam1-Damage_Absorption(tmps.level)
                            endif
                            if tmps.dam1<=DAMAGE_BOUNDARY then
                                call tmps.dum1.destroy()
                                set tmps.d1a=false
                                if not tmps.d2a then
                                    call tmps.destroy()
                                endif
                            endif
                        else
                            call tmps.dum1.destroy()
                            set tmps.d1a=false
                            if not tmps.d2a then
                                call tmps.destroy()
                            endif
                        endif
                    endif
                elseif tmpd==2 then
                    set bx=tmps.dum2.x
                    set by=tmps.dum2.y
                    if (((x-bx)*(x-bx))+((y-by)*(y-by)))<=BOOMERANG_COLLSIZE*BOOMERANG_COLLSIZE then
                        if KILL_TREES then
                            call KillDestructable(d)
                            if DAMAGE_ABSORPTION_RELATIVE then
                                set tmps.dam2=tmps.dam2*(1-Damage_Absorption(tmps.level))
                            else
                                set tmps.dam2=tmps.dam2-Damage_Absorption(tmps.level)
                            endif
                            if tmps.dam2<=DAMAGE_BOUNDARY then
                                call tmps.dum2.destroy()
                                set tmps.d2a=false
                                if not tmps.d1a then
                                    call tmps.destroy()
                                endif
                            endif
                        else
                            call tmps.dum2.destroy()
                            set tmps.d2a=false
                            if not tmps.d1a then
                                call tmps.destroy()
                            endif
                        endif
                    endif
                endif
            endif
            set d=null
            return false
        endmethod

07-02-2009, 05:00 PM

#14

Deaod

Lets say you have a spell with 5 or more levels. Lets further assume those values are in no particular easy order (linear, exponential). Maximum complexity would be of 4th degree (ax^4+bx^3+cx^2+dx+e) or of (level-1)th degree. Inserting the values and deducing the formula would be kind of tiresome (not that its impossible, its just tiresome and youre prone to make errors somewhere in that whole mess). Oh, and speed is FAR worse (for any function of a higher degree than 2, but as you mentioned, it doesnt really matter that much for a spell).

Also, arrays saves you the recalculation of the function every time you want to adjust the balance of the spell.

Commented Code:

        private static method DamageFilterFunc takes nothing returns boolean
        local unit u=GetFilterUnit()
            // check if unit is a valid target for damage
            if IsUnitType(u, UNIT_TYPE_DEAD)==false and IsUnitType(u, UNIT_TYPE_STRUCTURE)==false and IsUnitType(u, UNIT_TYPE_MAGIC_IMMUNE)==false and (not IsUnitInGroup(u, tmps.g)) and IsUnitEnemy(u, GetOwningPlayer(tmps.c)) then
                if tmpd==1 then // tmpd hold the current boomerang; 1 for left-wing, 2 for right-wing
                    // damage the unit; if the unit for some reason cant be damaged, dont continue
                    if UnitDamageTarget(tmps.c, u, tmps.dam1, false, false, ATTACK_TYPE, DAMAGE_TYPE, WEAPON_TYPE) then
                        call DestroyEffect(AddSpecialEffectTarget(HIT_FX, u, HIT_FX_ATTPT))
                        call GroupAddUnit(tmps.g, u)
                        if DAMAGE_ABSORPTION_RELATIVE then
                            set tmps.dam1=tmps.dam1*(1-Damage_Absorption(tmps.level))
                        else
                            set tmps.dam1=tmps.dam1-Damage_Absorption(tmps.level)
                        endif
                        if tmps.dam1<=DAMAGE_BOUNDARY then // damage has become too low
                            call tmps.dum1.destroy() // destroy the boomerang dummy
                            set tmps.d1a=false // mark that boomerang as destroyed
                            if not tmps.d2a then // if the other boomerang is dead as well, destroy the spells instance
                                call tmps.destroy()
                            endif
                        endif
                    endif
                elseif tmpd==2 then // pretty much the same here
                    if UnitDamageTarget(tmps.c, u, tmps.dam2, false, false, ATTACK_TYPE, DAMAGE_TYPE, WEAPON_TYPE) then
                        call DestroyEffect(AddSpecialEffectTarget(HIT_FX, u, HIT_FX_ATTPT))
                        call GroupAddUnit(tmps.g, u)
                        if DAMAGE_ABSORPTION_RELATIVE then
                            set tmps.dam2=tmps.dam2*(1-Damage_Absorption(tmps.level))
                        else
                            set tmps.dam2=tmps.dam2-Damage_Absorption(tmps.level)
                        endif
                        if tmps.dam2<=DAMAGE_BOUNDARY then
                            call tmps.dum2.destroy()
                            set tmps.d2a=false
                            if not tmps.d1a then
                                call tmps.destroy()
                            endif
                        endif
                    endif
                endif
            endif
            set u=null
            return false
        endmethod

        private static method TreeFilterFunc takes nothing returns boolean
        local destructable d=GetFilterDestructable()
        local real x
        local real y
        local real bx
        local real by
            if (not IsDestructableDead(d)) and IsDestructableTree(d) then // filter out dead and non-tree destructables
                set x=GetWidgetX(d)
                set y=GetWidgetY(d)
                if tmpd==1 then // same as above
                    set bx=tmps.dum1.x
                    set by=tmps.dum1.y
                    if (((x-bx)*(x-bx))+((y-by)*(y-by)))<=BOOMERANG_COLLSIZE*BOOMERANG_COLLSIZE then // tree must be inside the collision radius
                        if KILL_TREES then // if the boomerang is allowed to kill trees, do so
                            call KillDestructable(d)
                            // but adjust the damage as if a unit had been hit
                            if DAMAGE_ABSORPTION_RELATIVE then
                                set tmps.dam1=tmps.dam1*(1-Damage_Absorption(tmps.level))
                            else
                                set tmps.dam1=tmps.dam1-Damage_Absorption(tmps.level)
                            endif
                            if tmps.dam1<=DAMAGE_BOUNDARY then // same as above
                                call tmps.dum1.destroy()
                                set tmps.d1a=false
                                if not tmps.d2a then
                                    call tmps.destroy()
                                endif
                            endif
                        else // if Trees may not be destroyed, destroy the boomerang instantly
                            call tmps.dum1.destroy()
                            set tmps.d1a=false
                            if not tmps.d2a then // and end the spell instance if appropriate
                                call tmps.destroy()
                            endif
                        endif
                    endif
                elseif tmpd==2 then // next section is the same as above
                    set bx=tmps.dum2.x
                    set by=tmps.dum2.y
                    if (((x-bx)*(x-bx))+((y-by)*(y-by)))<=BOOMERANG_COLLSIZE*BOOMERANG_COLLSIZE then
                        if KILL_TREES then
                            call KillDestructable(d)
                            if DAMAGE_ABSORPTION_RELATIVE then
                                set tmps.dam2=tmps.dam2*(1-Damage_Absorption(tmps.level))
                            else
                                set tmps.dam2=tmps.dam2-Damage_Absorption(tmps.level)
                            endif
                            if tmps.dam2<=DAMAGE_BOUNDARY then
                                call tmps.dum2.destroy()
                                set tmps.d2a=false
                                if not tmps.d1a then
                                    call tmps.destroy()
                                endif
                            endif
                        else
                            call tmps.dum2.destroy()
                            set tmps.d2a=false
                            if not tmps.d1a then
                                call tmps.destroy()
                            endif
                        endif
                    endif
                endif
            endif
            set d=null
            return false
        endmethod

Maybe we could ask Vex to fix jass tags in hidden tags to not strech the whole thing to infinity.

07-02-2009, 06:11 PM

#15

Rising_Dusk

Quote:

Originally Posted by Deaod

Dude... You can do up to 10th order polynomial regression by the least squares method online. Generating a 99% accurate formula for 10 levels of any spell is good enough for me - and I found that website in ten seconds of a google search.

Let's also consider the fact that most sensible spell design has linear growth, so this is a non-issue in the first place.

Quote:

Originally Posted by Deaod

Maybe we could ask Vex to fix jass tags in hidden tags to not strech the whole thing to infinity.

Yes, this would be a good idea.

Your commented code looks good now that I know what those booleans mean. Perhaps you should actually comment the spell, instead of just having that excerpt in a separate post?
