Dialog Tutorial - Creating Dialogs

05-20-2006, 08:49 AM

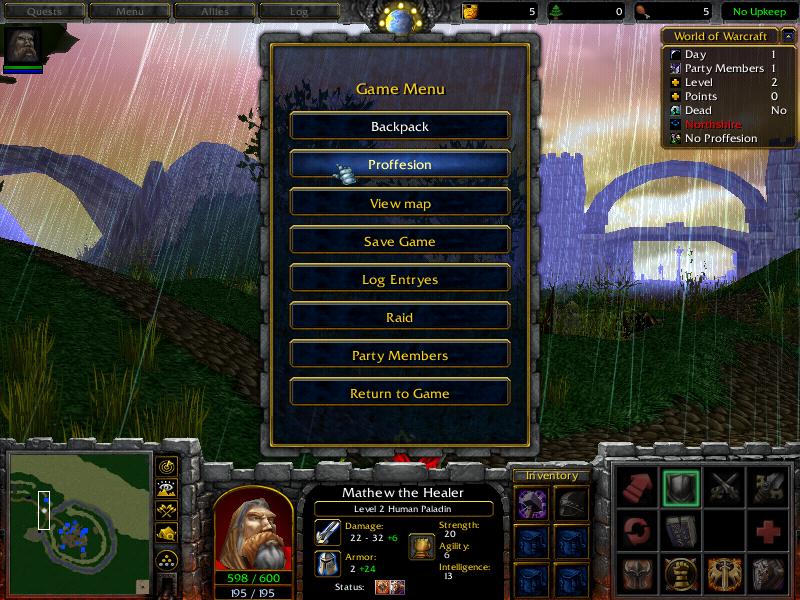

This tutorial will explain the creation of a Dialog box. If you don't know what is a dialog box take a look at the first attached image.

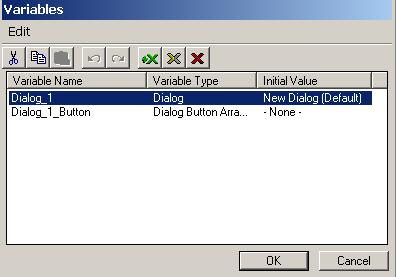

First you need two variables. The first variable - we will call it dialog_difficulty is type Dialog. The Second, which we will call dialog_difficulty_buttons is a Dialog button type. You will see that it has the array option. As you saw on my image I had 8 buttons so my array is 8. So the array is based on the amount of buttons you have. Here on this example I have two buttons so I have an array of 2.

Dialog Box - Creating it
Now we need to create our Dialog trigger. The trigger will go like this:

Trigger:

Dialog

Events

Time - Elapsed game time is 1.00 seconds

Conditions

Actions

Dialog - Clear dialog_difficulty

Dialog - Change the title of dialog_difficulty to Difficulty

Dialog - Create a dialog button for dialog_difficulty labelled Easy

Set dialog_difficulty_buttons[1] = (Last created dialog Button)

Dialog - Create a dialog button for dialog_difficulty labelled Hard

Set dialog_difficulty_buttons[2] = (Last created dialog Button)

Dialog - Show dialog_difficulty for Player 1 (Red)

Now the next trigger will explain how to initiate an action when the button is clicked

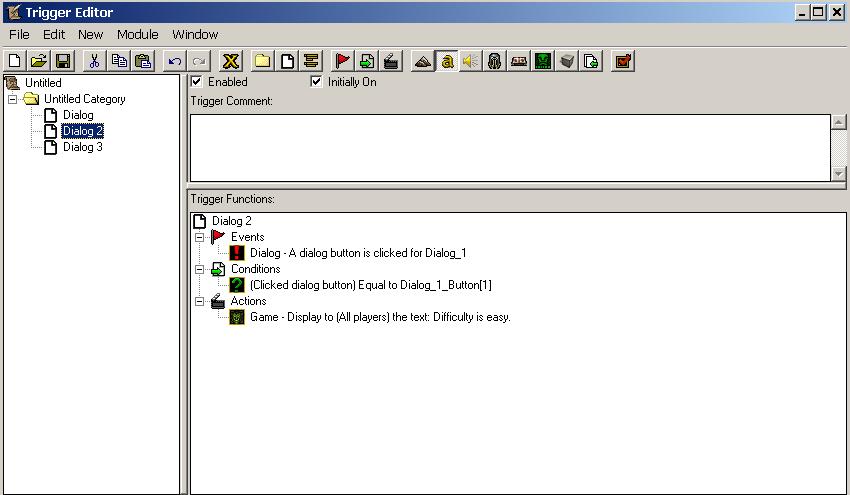

Trigger:

Dialog 2

Events

Dialog - A dialog button is clicked for dialog_difficulty

Conditions

(Clicked dialog button) Equal to dialog_difficulty_buttons[1]

Actions

Game - Display to (All players) the text: Difficulty is easy.

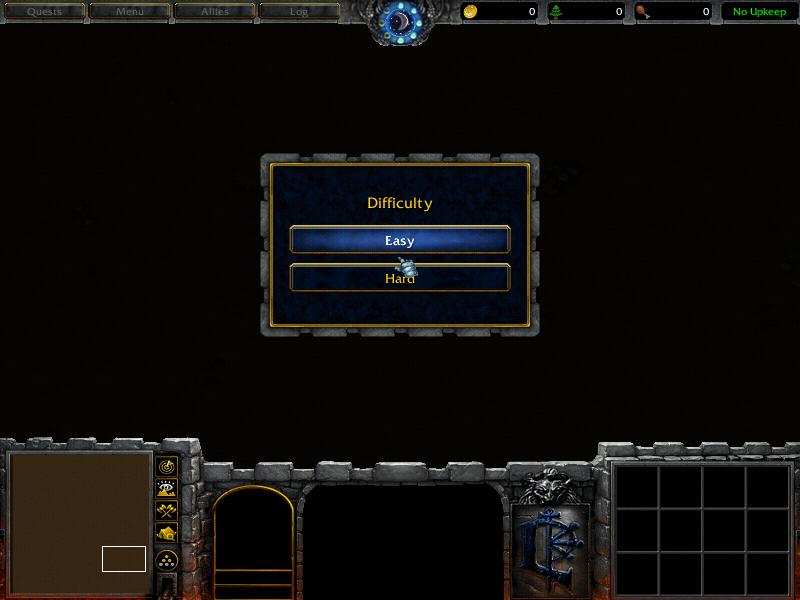

Do the same for the next button. Please look at the images if you still don't understand.

Attached Images


05-20-2006, 09:31 AM	#2
Tim.	Please use [trigger] tags not [quote] tags.

05-20-2006, 10:49 AM	#3
bounty_hunter2	didn't know they exsist....editing so will it be excepted?

05-25-2006, 07:38 AM	#4
PitzerMike	I guess this could be approved as a tutorial for beginners, since we don't have a dialog tutorial yet. However you should mention that for your code example a button array with the size 2 is required, not 8. Also I think more appropriate variable names like dialog_difficulty or something like that should be used for a tutorial.

05-27-2006, 07:52 AM	#5
bounty_hunter2	ok I'l update it.

05-28-2006, 02:38 PM

Tim.

Quote:

Originally Posted by bounty_hunter2

ok I'l update it.

It has been a few days, are you actually going to update this or what?

06-01-2006, 03:02 PM	#7
bounty_hunter2	realy sorry. I was ILL. Update today. EDIT: Topic updated.

06-01-2006, 11:19 PM	#8
PitzerMike	Ok, looks good now. Moved to tutorials for beginners.

06-02-2006, 06:40 AM	#9
bounty_hunter2	great! Thanks

02-13-2009, 05:00 PM

#10

Alexis_Septimus

It is much better to set it this way, save much space.

Trigger:

Melee Initialization

Events

Dialog - A dialog button is clicked for dialog_difficulty

Conditions

Actions

If (All Conditions are True) then do (Then Actions) else do (Else Actions)

If - Conditions

(Clicked dialog button) Equal to dialog_difficulty_button[1]

Then - Actions

Game - Display to (All players) the text: Difficult is easy.

Else - Actions

If (All Conditions are True) then do (Then Actions) else do (Else Actions)

If - Conditions

(Clicked dialog button) Equal to dialog_difficulty_button[2]

Then - Actions

Game - Display to (All players) the text: Difficult is easy.

Else - Actions

05-04-2010, 01:15 PM	#11
canon shooter	really?it seems to be hurting my head.

05-04-2010, 01:18 PM	#12
canon shooter	also cool photos but the first one has an action called log entrys.how the hell are you supposed to write entrys?????
