MDX Squisher

05-20-2006, 04:20 PM

This program makes Warcraft III MDX files, once saved in
the MPQ, 60 to 70% of their original size. To use it,
just run the program, click the button, and choose your
file.

Repeatedly using this program on an MDX and then editing
it again may result in a loss of quality, so you may want
to avoid overwriting your original files.

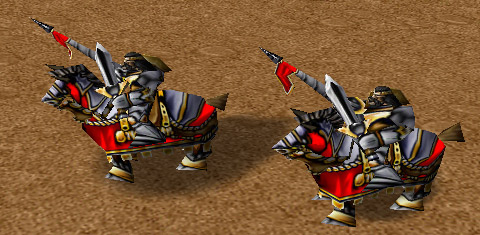

The thumbnails are examples of how it affects file size and a side-by-side comparison of a squished and unsquished knight, showing that you can't see a difference.

Attached Images


Attached Files

	MDXSquisher.zip (78.1 KB)
	MdxSquish_win32.zip (3.7 KB)

05-20-2006, 04:29 PM	#2
Tim.	So it merges nearby verts or something? How exactly does it 'squish' the file to conserve space?

05-20-2006, 04:30 PM	#3
emjlr3	has this been tested at all and found virus free/working, this could be useful

05-20-2006, 04:56 PM	#4
Guesst	It zeros the least useful bytes, and then MPQ compression turns that into a lower file size. A lot of data (normals, for example) are stored with a lot more detail than you would ever see. The program zeros the two lowest-value bytes for a bunch of floats. Specificially, it goes after vertices, normals, tvertices, movement, rotation, and scaling.

05-20-2006, 05:18 PM	#5
Rao Dao Zao	Sounds good; usually I snap to grid anyway on the geosets, but animation data could do with it in a lot of cases. Will have to examine this. EDIT: Preliminary tests show no apparent loss of quality, so there's no reason not to approve this.

05-20-2006, 05:31 PM

Tim.

In that case I approve it on behalf of the art section, however please make sure to include the following so that it meets the tool requirements:

Quote:

Originally Posted by Resource Submission Rules: Tools

* An included readme file that at least contains release date, program version, author, contact information (eg. e-mail or a link to the wc3c forum thread)
* Short description what the tool does
* Note about required files in the description and/or readme if any (eg. .NET framework, Visual Basic Runtime Files ...)
* Note about the required OS if not Windows 2k/XP
* An icon attached to the thread - if no icon is provided, the icon of the executable will be extracted and used
* Tools that contain viruses, too many bugs or generally are not useful will not be accepted

Once it does please let us know.

05-20-2006, 05:41 PM	#7
Guesst	It does.

05-20-2006, 06:06 PM	#8
Tim.	Great, off she goes, then!

05-21-2006, 12:03 AM	#9
Jazradel	This tool has incredible potential. I'm gonna have to fun a few mroe tests to see how well it works, but it's looking good so far.

05-21-2006, 01:04 AM	#10
Vexorian	Mind sharing sources?

05-21-2006, 01:28 AM	#11
PipeDream	Clever hack, Guesst.

05-21-2006, 01:32 AM	#12
emjlr3	wow this could significantly reduce the size of my map, I am excited !

05-21-2006, 02:05 AM

#13

Guesst

Quote:

Originally Posted by Vexorian

Mind sharing sources?

Ok, here it is.

Attached Files

MdxSquish_win32.zip (3.7 KB)

05-21-2006, 07:21 AM	#14
BertTheJasser	Very good! +Rep

05-21-2006, 08:45 AM	#15
nooK	Tested it on Black_Stan`s models and it screwed up some small parts of them. Don´t know if it works better on other models. Nevertheless good tool
