Blackrose Ritual - Spell Session 5

07-03-2006, 06:15 AM#1
Naakaloh
Blackrose Ritual

Description: When cast, it begins an unstoppable ritual that will inevitably kill at least one living sacrifice. The sacrifices will continuously lose life to damage enemies nearby. The damage dealt will only be a fraction of the amount drain from the units, but since it damages the entire area, is potentially far more powerful.

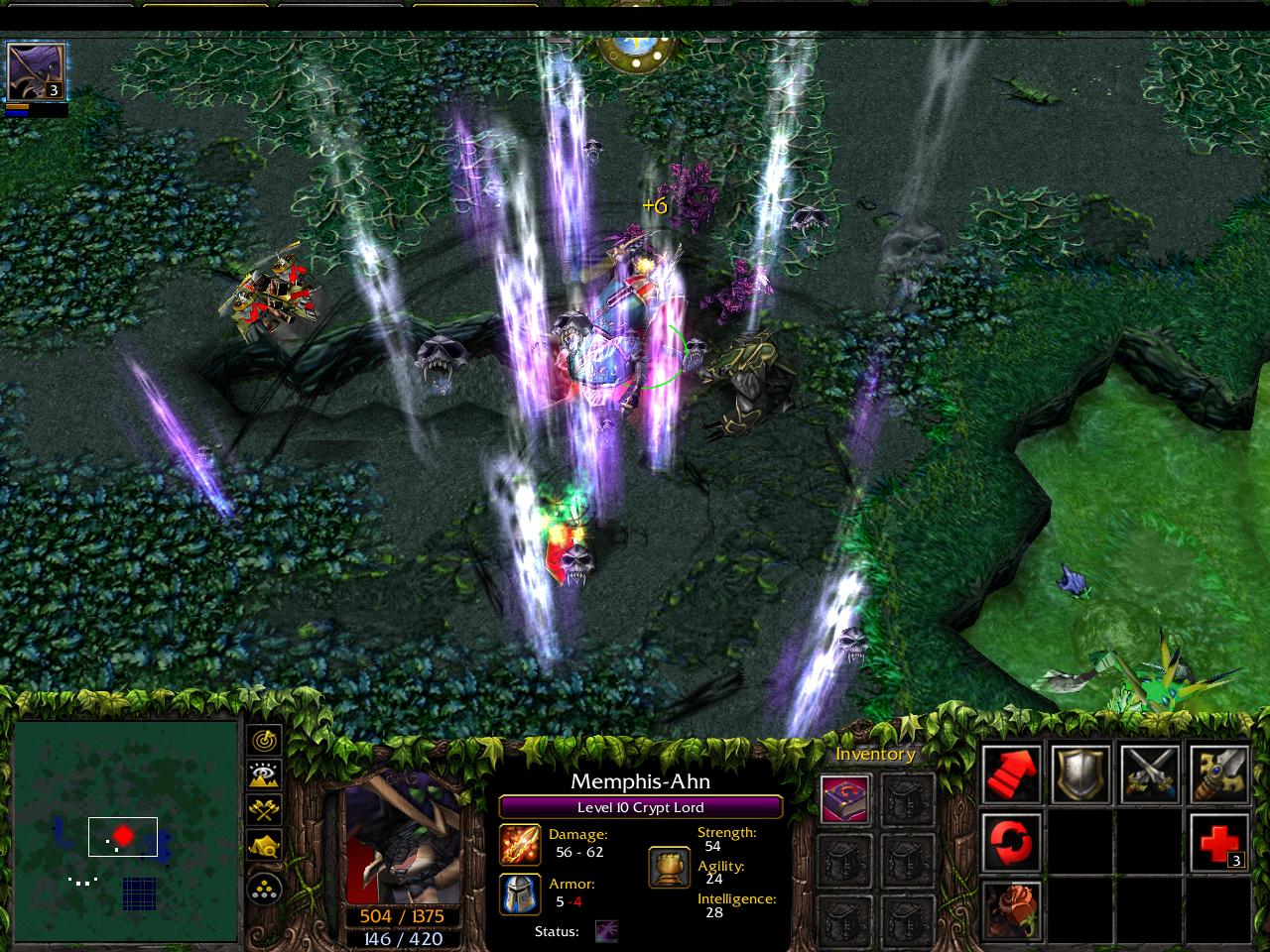

Click image for larger version

Name:	Blackrose01.jpg
Views:	669
Size:	269.1 KB
ID:	8758
Naakaloh Spell Session 05 - Blackrose Ritual f.w3x
Edited by Naakaloh. Reason: Fixing issues noted by PipeDream, thanks.
Edited by Naakaloh again. Reason: Fixing more of the issues noted by PipeDream.
Edited by Naakaloh again 2. Reason: Removed all potential issues with nulling timers.

Notes:
- The number of sacrifices increase the damage dealt.
- The spell can dynamically be made to last longer or finish sooner by healing or damaging the sacrifices.
- The targetting cursor is for choosing sacrifices; the damage is dealt in a much larger area, which is shown by the effect.
- The filename is a little long, so try not to put it too many folders deep; apparently warcraft has issues detecting it if the filepath is too long.
- Winner of the Spell Session 5.
Attached Images
File type: jpgBlackrose01.jpg (269.1 KB)
Attached Files
File type: w3xNaakaloh Spell Session 05 - Blackrose Ritual f.w3x (48.1 KB)
07-04-2006, 12:32 AM#2
PipeDream
Very nice job. Real clean work.

Stuff that needs to be fixed for approval:
- spelling: "Persistent"
- Need local hostage fixes:
BlackroseRitual_GroupSortWeakestToStrongest
BlackroseRitual_SacrificeUnitCondition
BlackroseRitual_DamageCondition
BlackroseRitual_SacrificeDrain
BlackroseRitual_ReturnXSizeSubgroup (can remove set g= null. use return bug to fix the leak though)
- Timer is set to null in BlackroseRitual_CastActions, use ItoT and store your timers in integers instead.
- PauseTimer() before DestroyTimer()
- BlackroseRitual_MoveMissilesCircle: You had some troubles removing that G? Give it another go. You have to get rid of the DestroyGroup(uninitialized var) one way or another.
Actually I think the reason it works with DestroyGroup is that it stops the thread when you run it on an uninitialized variable. GetPlayableMapRect is a Blizzard.j function which returns bj_mapInitialPlayableMapRect, which you then would destroy and ruin further attempts to use it. So, don't destroy r and you should be fine. You can also use GetWorldBounds() if you're so inclined, which is a native that does allocate a new rect.
- First cast lag
---
Suggestions / comments:
- Why do you destroy casting tempLoc when you shove a copy into the handle vars? Just shove tempLoc in directly.
- Select the subgroup randomly. Surprisingly this can be done in linear time in size of group to select from:
Collapse JASS:
//Given a group, filter it down to a random set of size max
//If it's smaller than max, the group's contents are unchanged
//Returns the size of the group which will be <= max
//Runs in O(N) time where N is the number of units in the original group
function FilterNRandomUnits takes group g, integer max returns integer
    local integer n = 0
    local integer j
    local unit u
    local unit array pool
    local integer t
    loop        //First pull n units from g
        set u = FirstOfGroup(g)
        exitwhen n >= max or u == null
        set pool[n] = u
        call GroupRemoveUnit(g,u)
        set n = n + 1
    endloop
    set j = n
    loop        //Harmonically decaying random replacement
        set u = FirstOfGroup(g)
        exitwhen u == null
        set t = GetRandomInt(0,j)
        set j = j + 1
        if(t < max) then
            set pool[t] = u
        endif
        call GroupRemoveUnit(g,u)
    endloop
    call GroupClear(g)
    set j = 0
    loop        //Rebuild group
        exitwhen j >= n
        call GroupAddUnit(g,pool[j])
        set j = j + 1
    endloop
    return n
endfunction
- O(N^2) selection could run into problems with the script execution limit. Make sure the thread doesn't crash up to a reasonable wc3 number, say 36 units. Maybe it should have a built in cap to the max number of units it's willing to work with. But I think it will be ok.
- IsUnitGroupEmptyBJ iterates through the entire group. You could do a lot better by just checking if FirstOfGroup == null.
- You store a lot of redundant data. You might be able to get some noticeable improvements by cutting out some unnecessary game cache accesses in BlackroseRitual_MoveMissilesCircle. You could also cut out a lot of trig calls.
- if( GetRandomReal(0.0, 1.0) < GetRandomReal(0, 0.03) ) ->
if(GetRandomReal(0.0,1.0) < .015))
07-04-2006, 04:39 AM#3
Naakaloh
Fixed several minor issues; I was wondering why the spelling looked odd, just one of those moments I guess; added preload function.

Fixed the issue with BlackroseRitual_MoveMissileCircle; thanks, I think I had used GetWorldBounds() in something else so I was thinking it was an issue and didn't realize it in this.

Added a built-in limit to 36 units for the sorted subgroup as requested, should prevent the sort from killing the thread.

Fixed the issue preventing FirstOfGroup(sacrifices) from working as an appropriate condition.

Please check over it again, I got rid of several useless and redundant function calls, I'm not sure of the trig calls I can cut out or if there are mor I can get rid of, if you could be more specific, that would be great.

----------------------------

Quote:
- Need local hostage fixes:
BlackroseRitual_GroupSortWeakestToStrongest
BlackroseRitual_SacrificeUnitCondition
BlackroseRitual_DamageCondition
BlackroseRitual_SacrificeDrain
BlackroseRitual_ReturnXSizeSubgroup (can remove set g= null. use return bug to fix the leak though)
- Timer is set to null in BlackroseRitual_CastActions, use ItoT and store your timers in integers instead.
I'll need some help understanding what you mean for this two fixes.

Quote:
- Select the subgroup randomly. Surprisingly this can be done in linear time in size of group to select from:
I actually planned for it to select the weakest or strongest, but I can add this functionality; first, I want to fix the other issues, though.
07-04-2006, 11:19 AM#4
PipeDream
Quote:
I actually planned for it to select the weakest or strongest, but I can add this functionality; first, I want to fix the other issues, though.
Indeed, I misunderstood how it was being used. Groups aren't well behaved, for example I believe heroes will always be pushed to the front which I'm guessing you noticed. So I think the functionality of xsize subgroup should be absorbed into the sort. This ought to also be a small cast speed boost, as small subgroup limits like 1 would probably be a common use.

Leaks: There's stuff not set to null. Some of it (like the filters) could just be set to null, some of it is return values so you have to be a little tricky:
Collapse JASS:
function BlackroseRitual_GroupSortWeakestToStrongest takes group unsorted, boolean reversed returns group
  local group sorted = CreateGroup()
  local integer iSorted
//...
  set iSorted = HtoI(sorted)
  set sorted = null
  return iSorted
  return null
endfunction
Or rather less ugly:
Collapse JASS:
function BlackroseRitual_GroupSortWeakestToStrongest takes group sorted, group unsorted, boolean reversed returns nothing
endfunction

Timer: Nulling timers causes unrepeatable problems. Nobody is sure why. In Mainactions I would avoid this by using GetExpiredTimer() everywhere you need the timer. In cast actions, store HtoI(timer) to a variable and use ItoT where you need something of type timer. This is inconvenient to do with kattana style handle vars, so you might as well use direct game cache.

JESP: In the manifest, you forgot to change "spells in this map" to Blackrose Ritual
You might also mention that it requires simerror.
07-10-2006, 06:59 PM#5
Naakaloh
I'm a little out of it, so I can't be sure, but I think everything mentioned should be fixed except for eliminating setting the timers to null (I'm lazy and have not experienced the problem with this particular spell; if it really matters that much I will change it).
07-13-2006, 06:25 AM#6
Tim.
Blade, blu or Pipe? Approved? Rejected? What's the deal?
07-13-2006, 06:48 AM#7
PipeDream
Fix the timers or in a month someone will be bothering us
07-13-2006, 10:33 AM#8
Naakaloh
Alright, I'll get that done as soon as I get home from orientation.
07-16-2006, 06:46 PM#9
Naakaloh
Timer issues should be fixed now, I think I took care of everything, but feel free to suggest more changes if you find them.
07-16-2006, 07:33 PM#10
PipeDream
Collapse JASS:
if( GetRandomReal(0.0, 1.0) < GetRandomReal(0, 0.015) )
What I meant is "if (GetRandomReal(0.0,1.0) < .015)" since this will have the same probability of being true as "if(GetRandomReal(0.0,1.0) < GetRandomReal(0.0,.03))". No need to update though, approved.

call SetHandleHandle(ItoTi(t)) is a little strange too, since internally they're I2S(HtoI(arg)). this is only in cast actions though so there's no point wasting time optimizing.
07-16-2006, 07:50 PM#11
Naakaloh
Heh, I didn't realize I did that with the probability, I must have been pretty tired or something... thanks again for all your help.
