Create your own Pathmap for buildings/Doodads....

In this small Tutorial i want to tell you how to create and how to use your own special pathing maps.

1) What are pathingmaps?

Pathingmaps are small Thumbnails in the warcraft3 mpq, which set up if for example a building is pathable or not. Maybe you already asked you, why you cannot walk under a bridge, but only the right way. This is beacause of these small thumbnails.

2) Which colors are this?

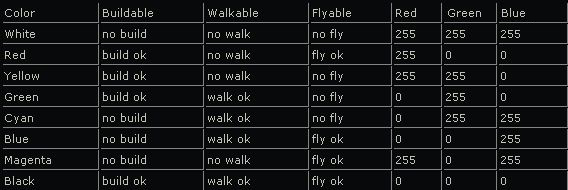

There are eight different colors, which the warcraft 3 engine interprets:


3) How can i see those Pathingmaps?

While you are in the Editor, press the P key and you will be able to see them.


4) Getting started

4.1 Required Stuff

- graphic programm, which can read and save tga-files
- my stair modell for getting started with the tutorial

4.2 Import

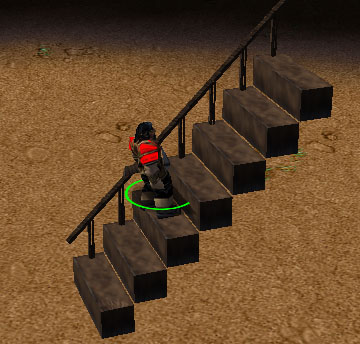

Import the modell to your warcraft 3 map, and replace for example a bridge with your modell.

5) Creating a new pathmap

Now scale your modell to the size you want it to be.

!!! Pathmaps can not be scaled !!!
If you have finished your pathmap and resize your modell the pathmap will be still in the former size.

I scale the modell to 2,5, so that the proportion fits to a peon.



Press the G key to see the warcraft 3 grid. Set the grid to the smallest size.

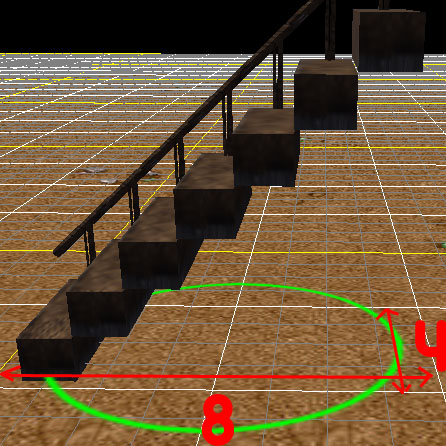

Now count the squares in the editor. In my case there are 8 length and 4 width.



Open your grapicsoftware and create a new file containing 8 lenght and 4 width. Each square represents 1 pixel in the pathmap.
To make this stari walkable i use blue for the inner part and magenta for the border.


Save this file now to an 32-bit tga-file and import it to your map.
Edit the pathmap of your modell to the imported tga-file and restart the world editor.

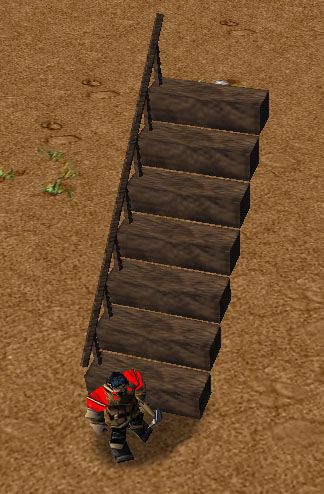

Now place the modell somewhere you want to and use it
:D



I hope you enjoyed and understand the basics of pathmapping.
