Another question about 3dsmax5 animations.

02-17-2007, 01:24 PM#1
kebabmeat
When I have made the animation, then I export it to mdx, but when I'm looking in WE, it haven't got the animation.

Should I do something more with it before I export the model?
02-17-2007, 03:24 PM#2
Chriz.
Did you name and create the animation in the dope sheet?
02-17-2007, 03:55 PM#3
Rising_Dusk
Also make sure you follow WC3 form for naming animations.
Non-standardly named animations do not appear in the WE.

Even Blizzard made this mistake. (Whether intentionally or not is debatable)
Goblin Alchie, for example.
02-17-2007, 04:43 PM#4
kebabmeat
Okay, but how do I name an animation?
02-17-2007, 06:23 PM#5
Chriz.
  • Go to Graph Editors --> Dope Sheet
  • Click on "Objects" and go to Tracks --> Note Track --> Add
  • Create a note key at the starting frame and ending frame of your animation
  • Right click on the keys and name them "(Name of animation)" Make sure the quotations are included
  • Then use the Warcraft III preview option, and it should show your animation, and the name of it in the bottom left corner
02-17-2007, 07:28 PM#6
kebabmeat

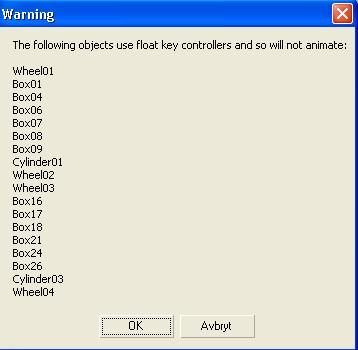

But when I have done that, I still got this message:
Attached Images
File type: jpgwtf.JPG (16.4 KB)
02-17-2007, 07:32 PM#7
Chriz.
You have to go to the fourth tab on the right, with the little wheel on it. Then select every object that animates. The non animating objects don't matter.

Then under "assign controller" set all three (position, scale, rotation) to TCB.

Once this is done, test again.
02-17-2007, 10:49 PM#8
Mc !
A little suggestion, its easier to just create a base bone and assign it the right controllers, and then copying it for the rest of the bones, instead of doing the assigning process for each bone.
02-20-2007, 06:02 PM#9
TDR
or set the default controller to tcb
02-20-2007, 07:12 PM#10
Chriz.
That's what I have, but then when I animate for others I have to go through and re-set every piece, because they refuse to set TCB as default.
02-20-2007, 07:17 PM#11
TDR
or you can do a simple script to set the same controller for multiple selected bones.
02-20-2007, 08:01 PM#12
Chriz.
I have no clue how to make scripts.
02-20-2007, 08:54 PM#13
TDR
ok, then I made one. It's very simple actually. Sets all the controllers of whatever you have selected to TCB (single or multiple objects). You can edit the script to set whatever controller type you want.
Attached Files
File type: zipmassTCBcontrollSet.zip (521 bytes)
