What A "Backstab" Is

There appears to be a desire with people these days to make spells and/or systems based off of "backstabbing". Essentially, a backstab is a check that goes off when a unit is attacked which compares each unit's facings to see if it is within a specific angle.

The Procedure

In order to get our backstab working, we must understand the general steps behind doing so. I will be doing this as though I am detecting when a unit with some passive backstab ability attacks, and will do 50*Level damage and display a text message.

The procedure:

Register the Event
Check to make sure the unit has the ability
Get the units' angles
Get the difference between the angles
Check to see if that difference is within the specific range
Do our other actions

What You'll Need

We will be using a JASS function to get the angle difference (it is possible in GUI alone; see bottom of tutorial), thus we will need this function. Here is the function by Vexorian, with a description of each line by Ammorth:

Quote:

Originally Posted by Ammorth

JASS:

function Backstab_GetAngleDifference takes real a1, real a2 returns real
     local real x
        // The Modulo will get the co-terminal angle if the angle is less than -360 or greater than 360.
        set a1=ModuloReal(a1,360)
        set a2=ModuloReal(a2,360)
        // makes sure angle 1 is the smaller angle.  If it isn't it switches them.
        if a1>a2 then
            set x=a1
            set a1=a2
            set a2=x
        endif
        // Subtracts 360, to get the first negative co-terminal angle, this is then used in a comparison to check if the angle is greater than 180
        set x=a2-360
        if a2-a1 > a1-x then
            //  If it is, use the negative angle instead
            set a2=x
        endif
        //  Now, get the difference between the 2 angles.
        set x=a1-a2
        //  If the difference is negative, make it positive and return it.  If its positive, return it.
        if (x<0) then
            return -x
        endif
     return x
    endfunction

Next, we'll need our trigger; let's call it "Backstab Test". Then, we'll add our events and conditions to it:

Trigger:

Backstab Test

Events

Unit - A unit is attacked

Conditions

(Level of (Backstab Test Ability) for (Attacking Unit)) greater than 0

Actions

Finally, this will require a variable; we'll call it "Backstab_Angle". It should look like this:

Setting Up The Check

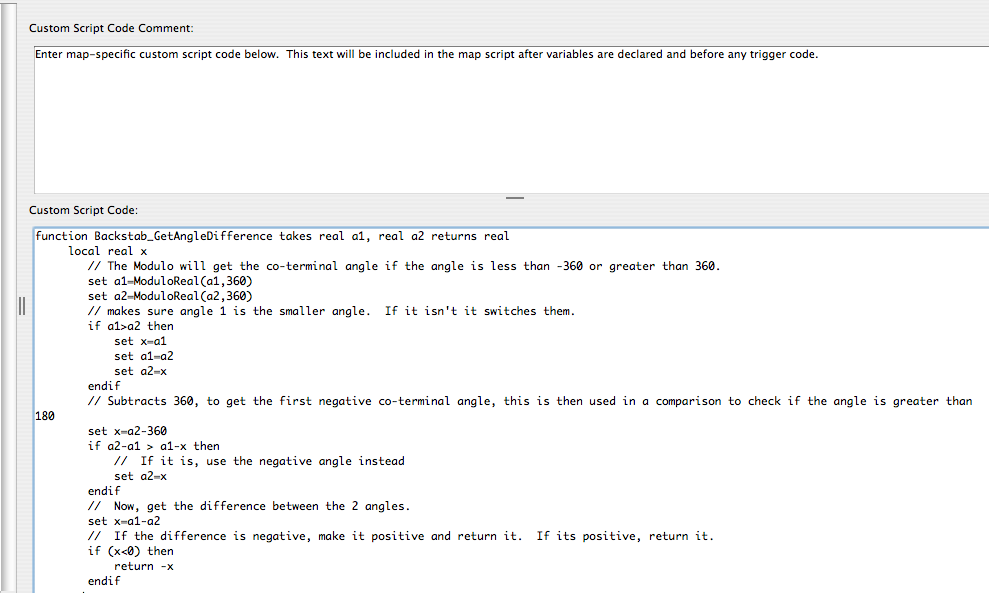

The first thing to do is import the JASS code into the map. Put it in the "custom script" section of the map header (click on the thing where it says "Your Map Name (Whatever it is).w3x" in the trigger editor). It should look like this:

Next, we'll need to set up the angle checking part of our trigger, we'll do this by using the local variable GUI bug, as discussed in "Method 3" in this tutorial. Then, we'll call our new JASS script, and set the variable equal to that, by adding these lines to the top of the trigger:

Trigger:

Custom script: local real udg_Backstab_Angle

Custom script: set udg_Backstab_Angle = Backstab_GetAngleDifference(GetUnitFacing(GetTriggerUnit()), GetUnitFacing(GetAttacker()))

Note: the "udg_" is required before the variable name! If you leave it out, you'll get compile errors.

Last, we'll need an If/Then/Else that compares "Backstab_Angle" to the allowed angle range and executes our actions if it's within the range. Let's say our range is 60*. It should look like this:

Trigger:

If (All Conditions are true) then do (Then actions) else do (Else actions)

If - Conditions

Backstab_Angle less than or equal to 60.00

Then - Actions

Unit - Cause (Attacking unit) to damage (Triggering unit) dealing (50 * (Level of (Backstab Test Ability) for (Attacking Unit))) damage of attack type Normal and damage type Universal

Floating Text - Create floating text that reads |cff6600Backstab!|r above (Attacking Unit) with Z offset 0.00, using font size 10.00, color (100.00%, 100.00%, 100.00%), and 0.00% transparency

Floating Text - Set the velocity of (Last created floating text) to 64.00 towards 90.00 degrees

Floating Text - Change (Last created floating text): Disable permenance

Floating Text - Set the lifespan of (Last created floating text) to 2.25 seconds

Else - Actions

Putting It Together

All put together, the whole trigger would look like this:

Trigger:

Backstab Test

Events

Unit - A unit is attacked

Conditions

(Level of (Backstab Test Ability) for (Attacking Unit)) greater than 0

Actions

Custom script: local real udg_Backstab_Angle

Custom script: set udg_Backstab_Angle = Backstab_GetAngleDifference(GetUnitFacing(GetTriggerUnit()), GetUnitFacing(GetAttacker()))

If (All Conditions are true) then do (Then actions) else do (Else actions)

If - Conditions

Backstab_Angle less than or equal to 60.00

Then - Actions

Unit - Cause (Attacking unit) to damage (Triggering unit) dealing (50 * (Level of (Backstab Test Ability) for (Attacking Unit))) damage of attack type Normal and damage type Universal

Floating Text - Create floating text that reads |cff6600Backstab!|r above (Attacking Unit) with Z offset 0.00, using font size 10.00, color (100.00%, 100.00%, 100.00%), and 0.00% transparency

Floating Text - Set the velocity of (Last created floating text) to 64.00 towards 90.00 degrees

Floating Text - Change (Last created floating text): Disable permenance

Floating Text - Set the lifespan of (Last created floating text) to 2.25 seconds

Else - Actions

Backstab_GetAngleDifference re-written in GUI

And there you have it! A simple, passive backstab spell! This same method can be used, for instance, to deal extra damage when a unit uses a spell, etc.

Coming next:

Demo map
JASS function re-written in GUI Done.
Non-broken pictures Done.
How to have a unit deal extra % damage on an attack (will require JASS and dynamic triggers)

Thanks to emjl3r for informing me of the lines I forgot.
