3D Studio Max: Model Unwrapping (UVW) - Average - 3D Art

06-27-2007, 06:20 PM

Whitehorn

Load your model/mesh. Select Unwrap UVW in the modifer list.

Click on edit, to lead the UVW window.

Admire the shitty default UVW.

Click on face in the UVW modifier menu.

Select some faces.

Then click Planar View. Note, its best to chose an axis when you use planar view, else use a set view points (front/side/top and click 'Averaged Normals'.

Now look back at the UVW window.

Arrange the faces you have edited.

Lets make the view clearer. Click on options > Advanced, and delsect the following:

And thus!

Grab the back faces and repeat.

Then flip the selection so you can arrange it nicely.

The excess shows more faces need to be arranged.

Grab sections and arrange them accordingly, preferably annexing joined polygons. The purple lines tell you where parts are joined on the model.

TIP: Only unwrap one half of the model if you have a symmetrical mesh. you can then simply mirror the mesh, and both sides will use the same texture.

07-05-2007, 09:01 PM	#2
Oglog	Cool thanks for these! I'm just gonna hope they work with gmax :).

07-11-2007, 06:57 AM	#3
Fluff	If I'm making a model that will use in-game textures, how can I show the texture on the map so when I arrange the faces I know they will be in the right spot to match this premade texture?

07-11-2007, 09:09 AM	#4
Whitehorn	I usually drag a jpg version of the texture onto the mesh and then click the EDIT button.

07-11-2007, 09:25 AM

TDR

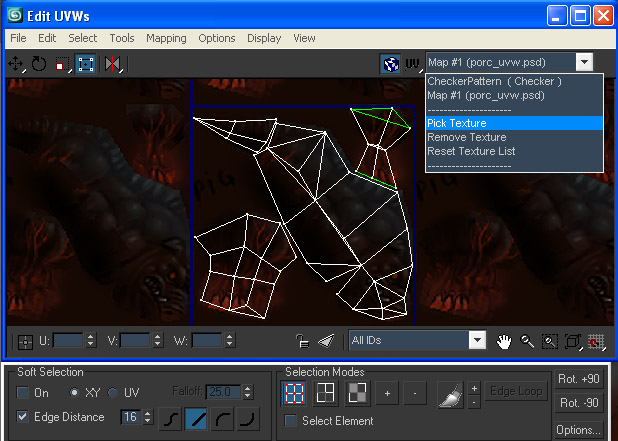

all you have to do is to click on that cube with a checker pattern on it and from the rollout right of the cube chose your texture (it should be there if you have a material applied to your mesh that has a texture). If it's not, chose Pick Texture and then chose "Bitmap" and search for your stuff.

Attached Images


07-19-2007, 11:32 PM	#6
Whitehorn	Forgot that crap. TDR taught me a lot of what I know anyway ;)

08-23-2007, 08:55 PM	#7
Dwarf Zealot	how do you export the uv map?

08-25-2007, 01:54 PM	#8
TDR	texporter

10-01-2007, 09:53 PM	#9
Dwarf Zealot	where do i get textporter? (delayed response much)

10-02-2007, 07:33 PM	#10
TDR	search much http://www.wc3campaigns.net/showthread.php?t=87330

06-23-2008, 09:13 AM	#11
nickex	how to import mt own Textures? i really wanna know

07-16-2010, 05:31 PM	#12
vladimir3388	I'm working on some uber huge model, and that's probably why I got this error box during exporting. I'm using 3ds max5 with war3art tool Guess what, almost all of my uvw unwarpings gets reseted after importing it to worldedit, but it looks perfect if I open the same mdx model via warcraft3viewer. Any suggestions?
