Export From Gmax

Introduction
This is a tutorial to export from gmax using 'DeX Script so that you can import to wc3.
Tools Needed
"DeX Script (i dont remember where to get it so i just attached it to this post, if you know where to get it pm me and ill edit this post)
Gmax
Magos Model Editor or MDLX Converter
Notepad (or any text editor)
A Healthy Brain
What To Do

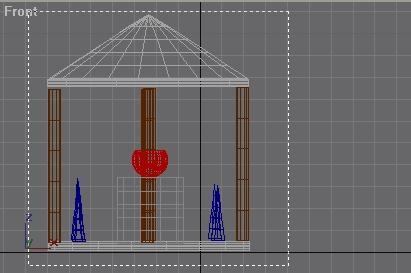

Ok, before you start exporting theres one thing you have to do, select all of your model by left clicking and draging so that all of your model is selected ( by the way thats just my test model )

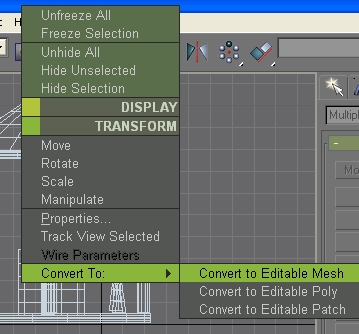

Now, right click on it and go to convert to> editable mesh



Once you've done that and are ready to export click on the utilites button

Then ,once you've done that click on the max scripts button

From there click on run script
Depending on how big the model is and how fast your computer is this may take some time
When thats done go back into max script and click open listener



Copy all of that text and open notepad (or your text editor)
Paste it all and then save it as yourmodel.mdl
Open Magos Model Editor (or MDLX Converter), and go to file>open and then open your model(if your using MDLX Converter i dont know what to do, but i trust you know)
Now your model should appear there, if not something went wrong, probably missed something when copying
Now go to file>save as and save it as yourmodel.mdx(if your using MDLX Converter i dont know what to do, but i trust you know)

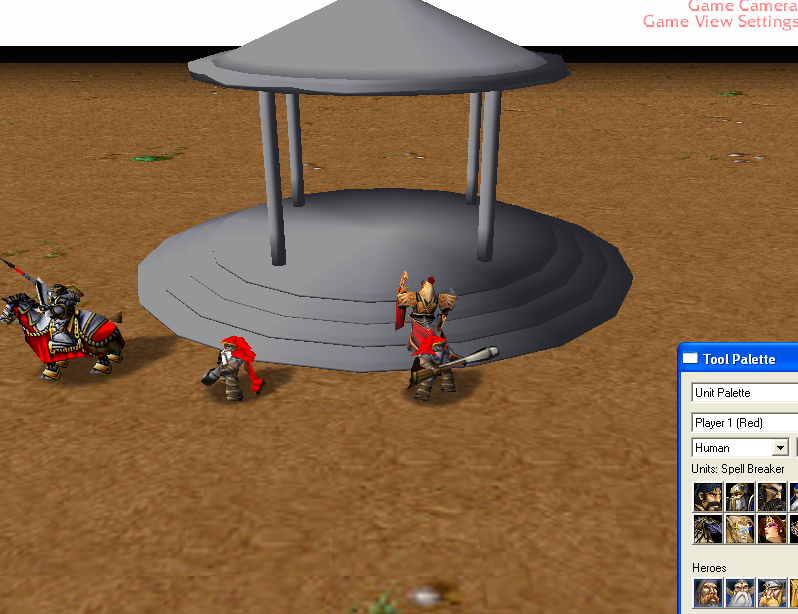

And there you go, you can now import it into warcraft 3

If you dont know how to do that check out this tutorial http://www.wc3campaigns.net/showthread.php?t=91803
*Edit*I have attached both the .gmax and the .mdx versions of a model

That should be something.
And I think that it is to short to be approved.
Why do you want a model without a skin?

woops forgot to add the skin part ill add soon
EDIT this is a tutorial to export models not to skin or model

*BUMP*Can someone please review this?

Ah, well, it's short but I guess it will be ok.
A few suggestions:
Add links to the tools needed, will make it easier to find all the stuff.
Since Mago's can't convert all kinds of models (it has problems with certain model properties) you may want to suggest Guesst's converter as an alternative way of converting the mdl.
Also add a link to our model importing tutorial at the end.

done but i forgot where to get 'Dex Script, any ideas?

Hm, no idea, sorry.
If you can't find it, just upload it as an attachment to your tutorial also.

done

hmm.. good tut, didn't help me because i h8 modeling but can help others +rep

IMO, Yobgul's file converter will do.

Warcraft III File Converter

It works quite nicely.

---

Other than that, I think this is a pretty good tutorial explained nicely. Of course, the exporting was explained in Magos' Model Tutorial but this is awesome as well. Good job!

TY, your too kind

I've tried to do this before but with no luck. Maybe you can help. I get an error when printing to library. It says "-- Unknown Property: "x" in undefined" My model is textured and made of cylinders and boxes only if that's important and the error occurs in a section about one of my box geosets. Thanks to anyone who can help.

Sorry but i have no idea.

Does this work with exporting animations correctly?

i think so but i never make animated models so im not certain. But i think so.
