Changing Tileset

10-04-2007, 06:53 AM	#1
PsykieKILLA	Ok, I have a map, but I want to change its tileset without having to re-make the map... How may I do this or is it even possible. Thank you, PsykieKILLA

10-04-2007, 07:29 AM

PitzerMike

Yes, it is possible.
First you need the NewGen pack here: http://www.wc3campaigns.net/showthread.php?t=90999
Then when you run the NewGen WorldEditor new menus appear in the menu bar at the top.
First open your map, then select Extensions/Edit Tileset

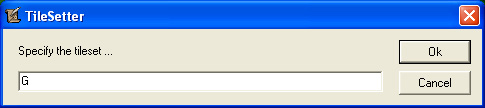

In the first popup enter the letter of the tileset that your map should now have (the letter that is already in the input box represents your current tileset).

Ok.

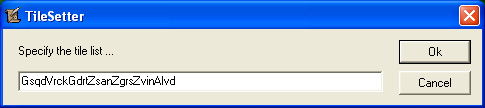

In the next popup you need to enter the list of tiles you want to use. The max nr of tiles is 16. What's already in the input box is your current tile list, replace it with the tiles that you want. And make sure to replace all cliff tiles that you had with the clifftiles of the other tileset.

Ok.

Then close and reopen the map so that the editor reloads everything.

Oh I also found a list of all the ids etc, thanks to Zepir:

Hidden information:

Code:

GroupID=L,Lordaeron Summer,104,117,183,0.5
Tile=Ldrt,Lordaeron Summer Dirt,144,100,53,WBF
Tile=Ldro,Lordaeron Summer Rough Dirt,140,96,49,WBF
Tile=Ldrg,Lordaeron Summer Grassy Dirt,104,95,34,WBF
Tile=Lrok,Lordaeron Summer Rock,136,105,93,WF
Tile=Lgrs,Lordaeron Summer Grass,39,119,25,WBF
Tile=Lgrd,Lordaeron Summer Dark Grass,10,86,11,WBF
Cliff=CLdi,Lordaeron Summer Dirt Cliff,Ldrt
Cliff=CLgr,Lordaeron Summer Grass Cliff,Lgrs

GroupID=F,Lordaeron Fall,104,117,183,0.5
Tile=Fdrt,Lordaeron Fall Dirt,110,85,48,WBF
Tile=Fdro,Lordaeron Fall Rough Dirt,106,79,43,WBF
Tile=Fdrg,Lordaeron Fall Grassy Dirt,99,73,23,WBF
Tile=Frok,Lordaeron Fall Rock,136,105,93,WF
Tile=Fgrs,Lordaeron Fall Grass,116,80,19,WBF
Tile=Fgrd,Lordaeron Fall Dark Grass,91,61,11,WBF
Cliff=CFdi,Lordaeron Fall Dirt Cliff,Fdrt
Cliff=CFgr,Lordaeron Fall Grass Cliff,Fgrs

GroupID=W,Lordaeron Winter,104,117,183,0.5
Tile=Wdrt,Lordaeron Winter Dirt,74,75,58,WBF
Tile=Wdro,Lordaeron Winter Rough Dirt,70,75,61,WBF
Tile=Wsng,Lordaeron Winter Grassy Snow,63,73,58,WBF
Tile=Wrok,Lordaeron Winter Rock,85,75,63,WF
Tile=Wgrs,Lordaeron Winter Grass,36,70,64,WBF
Tile=Wsnw,Lordaeron Winter Snow,189,208,227,WBF
Cliff=CWgr,Lordaeron Winter Grass Cliff,Wgrs
Cliff=CWsn,Lordaeron Winter Snow Cliff,Wsnw

GroupID=B,Barrens,19,24,16,0.5
Tile=Bdrt,Barrens Dirt,83,55,34,WBF
Tile=Bdrh,Barrens Rough Dirt,56,33,16,WBF
Tile=Bdrr,Barrens Pebbles,84,44,33,WF
Tile=Bdrg,Barrens Grassy Dirt,74,42,13,WBF
Tile=Bdsr,Barrens Desert,133,86,50,WBF
Tile=Bdsd,Barrens Dark Desert,102,60,27,WBF
Tile=Bflr,Barrens Rock,80,38,24,WF
Tile=Bgrr,Barrens Grass,119,70,9,WBF
Cliff=CBde,Barrens Desert Cliff,Bdsr
Cliff=CBgr,Barrens Grass Cliff,Bgrr

GroupID=A,Ashenvale,16,110,143,0.5
Tile=Adrt,Ashenvale Dirt,65,63,22,WBF
Tile=Adrd,Ashenvale Rough Dirt,47,56,18,WBF
Tile=Agrs,Ashenvale Grass,42,84,14,WBF
Tile=Arck,Ashenvale Rock,117,123,75,WF
Tile=Agrd,Ashenvale Lumpy Grass,40,66,20,WBF
Tile=Avin,Ashenvale Vines,31,68,25,WF
Tile=Adrg,Ashenvale Grassy Dirt,47,69,10,WBF
Tile=Alvd,Ashenvale Leaves,33,52,24,WBF
Cliff=CAgr,Ashenvale Grass Cliff,Agrs
Cliff=CAdi,Ashenvale Dirt Cliff,Adrt

GroupID=C,Felwood,94,158,38,0.5
Tile=Cdrt,Felwood Dirt,38,53,48,WBF
Tile=Cdrd,Felwood Rough Dirt,25,41,31,WBF
Tile=Cpos,Felwood Poison,20,86,5,WBF
Tile=Crck,Felwood Rock,4,45,27,WF
Tile=Cvin,Felwood Vines,26,58,37,WF
Tile=Cgrs,Felwood Grass,19,56,26,WBF
Tile=Clvg,Felwood Leaves,21,48,35,WBF
Cliff=CCgr,Felwood Grass Cliff,Cgrs
Cliff=CCdi,Felwood Dirt Cliff,Cdrt

GroupID=N,Northrend,3,95,80,0.5
Tile=Ndrt,Northrend Dirt,32,60,52,WBF
Tile=Ndrd,Northrend Dark Dirt,19,40,35,WBF
Tile=Nrck,Northrend Rock,17,53,57,WF
Tile=Ngrs,Northrend Grass,17,80,72,WBF
Tile=Nice,Northrend Ice,89,159,183,WBF
Tile=Nsnw,Northrend Snow,188,208,227,WBF
Tile=Nsnr,Northrend Rocky Snow,108,149,161,WF
Cliff=CNdi,Northrend Dirt Cliff,Ndrt
Cliff=CNsn,Northrend Snow Cliff,Nsnw

GroupID=Y,Cityscape,104,117,183,0.5
Tile=Ydrt,Cityscape Dirt,76,71,36,WBF
Tile=Ydtr,Cityscape Rough Dirt,60,61,28,WBF
Tile=Yblm,Cityscape Black Marble,39,31,18,WF
Tile=Ybtl,Cityscape Brick,146,134,115,WF
Tile=Ysqd,Cityscape Square Tiles,135,114,83,WF
Tile=Yrtl,Cityscape Round Tiles,92,84,72,WF
Tile=Ygsb,Cityscape Grass,19,71,16,WBF
Tile=Yhdg,Cityscape Grass Trim,4,43,6,WBF
Tile=Ywmb,Cityscape White Marble,172,164,156,WF
Cliff=CYdi,Cityscape Dirt Cliff,Ydrt
Cliff=CYsq,Cityscape Square Tiles Cliff,Ysqd

GroupID=V,Village,104,117,183,0.5
Tile=Vdrt,Village Dirt,76,71,36,WBF
Tile=Vdrr,Village Rough Dirt,60,61,28,WBF
Tile=Vcrp,Village Crops,51,66,29,WF
Tile=Vcbp,Village Cobble Path,61,52,32,WF
Tile=Vstp,Village Stone Path,105,91,58,WF
Tile=Vgrs,Village Short Grass,67,78,27,WBF
Tile=Vrck,Village Rocks,96,97,65,WF
Tile=Vgrt,Village Thick Grass,19,71,16,WBF
Cliff=CVdi,Village Dirt Cliff,Vdrt
Cliff=CVgr,Village Thick Grass Cliff,Vgrt

GroupID=Q,Village Fall,104,117,183,0.5
Tile=Qdrt,Village Fall Dirt,73,68,40,WBF
Tile=Qdrr,Village Fall Rough Dirt,57,58,31,WBF
Tile=Qcrp,Village Fall Crops,64,63,20,WF
Tile=Qcbp,Village Fall Cobble Path,58,47,28,WF
Tile=Qstp,Village Fall Stone Path,95,86,65,WF
Tile=Qgrs,Village Fall Short Grass,71,53,18,WBF
Tile=Qrck,Village Fall Rocks,103,87,69,WF
Tile=Qgrt,Village Fall Thick Grass,94,58,7,WBF
Cliff=CQdi,Village Fall Dirt Cliff,Qdrt
Cliff=CQgr,Village Fall Thick Grass Cliff,Qgrt

GroupID=X,Dalaran,40,104,124,0.5
Tile=Xdrt,Dalaran Dirt,70,65,44,WBF
Tile=Xdtr,Dalaran Rough Dirt,56,54,33,WBF
Tile=Xblm,Dalaran Black Marble,47,25,31,WF
Tile=Xbtl,Dalaran Brick,152,135,135,WF
Tile=Xsqd,Dalaran Square Tiles,93,63,86,WF
Tile=Xrtl,Dalaran Round Tiles,126,113,107,WF
Tile=Xgsb,Dalaran Grass,30,69,14,WBF
Tile=Xhdg,Dalaran Grass Trim,5,43,3,WBF
Tile=Xwmb,Dalaran White Marble,166,166,166,WF
Cliff=CXdi,Dalaran Dirt Cliff,Xdrt
Cliff=CXsq,Dalaran Square Tiles Cliff,Xsqd

GroupID=D,Dungeon,191,39,5,0.5
Tile=Ddrt,Dungeon Cave Dirt,56,23,20,WBF
Tile=Dbrk,Dungeon Cave Brick,55,17,18,WF
Tile=Drds,Dungeon Cave Red Stone,89,22,15,WF
Tile=Dlvc,Dungeon Cave Lava Cracks,130,15,2,WF
Tile=Dlav,Dungeon Cave Lava,197,38,3,WF
Tile=Ddkr,Dungeon Cave Dark Rock,62,18,13,WF
Tile=Dgrs,Dungeon Cave Grey Stones,43,11,10,WF
Tile=Dsqd,Dungeon Cave Square Tiles,76,49,46,WF
Cliff=CDdi,Dungeon Cave Dirt Cliff,Ddrt
Cliff=CDsq,Dungeon Cave Square Tiles Cliff,Dsqd

GroupID=G,Underground,104,117,183,0.5
Tile=Gdrt,Underground Dirt,17,34,30,WBF
Tile=Gbrk,Underground Brick,26,42,40,WF
Tile=Grds,Underground Red Stone,26,38,31,WF
Tile=Glvc,Underground Lava Cracks,25,94,97,WF
Tile=Glav,Underground Lava,51,152,164,WF
Tile=Gdkr,Underground Dark Rock,13,29,16,WF
Tile=Ggrs,Underground Grey Stones,18,20,19,WF
Tile=Gsqd,Underground Square Tiles,46,54,41,WF
Cliff=CGdi,Underground Dirt Cliff,Gdrt
Cliff=CGsq,Underground Square Tiles Cliff,Gsqd

; with the help of FyreDaug
GroupID=Z,Sunken Ruins,104,117,183,0.5
Tile=Zdrt,Sunken Ruins Dirt,106,105,54,WBF
Tile=Zdtr,Sunken Ruins Rough Dirt,81,80,32,WBF
Tile=Zdrg,Sunken Ruins Grassy Dirt,71,96,30,WBF
Tile=Zbks,Sunken Ruins Small Bricks,60,70,28,WF
Tile=Zsan,Sunken Ruins Sand,120,119,68,WBF
Tile=Zbkl,Sunken Ruins Large Bricks,149,140,81,WF
Tile=Ztil,Sunken Ruins Round Tiles,37,82,32,WF
Tile=Zgrs,Sunken Ruins Grass,9,86,10,WBF
Tile=Zvin,Sunken Ruins Dark Grass,0,46,0,WBF
Cliff=CZdi,Dirt Cliff,Zdrt
Cliff=CZlb,Ruined Walls,Zbkl

GroupID=I,Icecrown Glacier,104,117,183,0.5
Tile=Idrt,Icecrown Glacier Dirt,29,48,52,WBF
Tile=Idtr,Icecrown Glacier Rough Dirt,13,23,25,WBF
Tile=Idki,Icecrown Glacier Dark Ice,18,116,123,WBF
Tile=Ibkb,Icecrown Glacier Black Bricks,3,21,27,WF
Tile=Irbk,Icecrown Glacier Ruined Bricks,14,42,49,WF
Tile=Itbk,Icecrown Glacier Tiled Bricks,5,60,67,WF
Tile=Iice,Icecrown Glacier Ice,92,186,204,WBF
Tile=Ibsq,Icecrown Glacier Black Squares,3,26,29,WF
Tile=Isnw,Icecrown Glacier Snow,150,208,228,WBF
Cliff=CIsn,Snow Cliff,Isnw
Cliff=CIrb,Brick Walls,Irbk

GroupID=O,Outland,0,0,0,0.8
Tile=Odrt,Outland Dirt,100,25,7,WBF
Tile=Odtr,Outland Light Dirt,103,45,16,WBF
Tile=Osmb,Outland Rough Dirt,52,17,2,WBF
Tile=Ofst,Outland Cracked Dirt,98,29,11,WBF
Tile=Olgb,Outland Flat Stones,43,7,1,WBF
Tile=Orok,Outland Rock,35,2,1,WF
Tile=Ofsl,Outland Light Flat Stones,117,54,23,WBF
Tile=Oaby,Outland Abyss,0,0,0,F
Cliff=COdi,Dirt Cliff,Odrt
Cliff=COdt,Dark Cliff,Odrt
Cliff=COrd,Rough Dirt Cliff,Osmb

GroupID=K,Black Citadel,104,117,183,0.5
Tile=Kdrt,Black Citadel Dirt,100,25,7,WBF
Tile=Kfsl,Black Citadel Light Dirt,103,45,16,WBF
Tile=Kdtr,Black Citadel Rough Dirt,52,17,2,WBF
Tile=Kfst,Black Citadel Flat Stones,43,7,1,WBF
Tile=Ksmb,Black Citadel Small Bricks,74,22,10,WBF
Tile=Klgb,Black Citadel Large Bricks,53,9,9,WF
Tile=Ksqt,Black Citadel Square Tiles,20,3,2,WF
Tile=Kdkt,Black Citadel Dark Tiles,37,11,13,WF
Cliff=CKdi,Black Citadel Dirt Cliff,Kdrt
Cliff=CKdt,Black Citadel Dark Cliff,Kdkt
Cliff=CKrd,Black Citadel Rough Dirt Cliff,Kdtr

GroupID=J,Dalaran Ruins,104,117,183,0.5
Tile=Jdrt,Dalaran Ruins Dirt,53,50,36,WBF
Tile=Jdtr,Dalaran Ruins Rough Dirt,36,35,20,WBF
Tile=Jblm,Dalaran Ruins Black Marble,28,15,18,WF
Tile=Jbtl,Dalaran Ruins Brick,57,48,45,WF
Tile=Jsqd,Dalaran Ruins Square Tiles,45,27,40,WF
Tile=Jrtl,Dalaran Ruins Round Tiles,34,30,27,WF
Tile=Jgsb,Dalaran Ruins Grass,34,41,21,WBF
Tile=Jhdg,Dalaran Ruins Grass Trim,16,24,11,WBF
Tile=Jwmb,Dalaran Ruins White Marble,72,72,72,WF
Cliff=CJdi,Dalaran Ruins Dirt Cliff,Jdrt
Cliff=CJsq,Dalaran Ruins Tiled Walls,Jsqd

The character after GroupId= tells you what letter to use for each tileset.
The Ids after Tile= can be used in the tile list.
The lines that start with Cliff= only tell you which of the above tiles is a cliff tile. Eg Cliff=CLgr,Lordaeron Summer Grass Cliff,Lgrs tells you that Lgrs (Lords Grass) is a cliff tile. Not CLgr is the id that has to be used, but Lgrs is!

Attached Images


10-04-2007, 04:34 PM	#3
iNfraNe	Or... you can go to Advanced - Modify Tileset. A bit easier I think? :)

10-04-2007, 05:16 PM	#4
PitzerMike	That allows you to swap tiles. Not to change the tileset that your map is based on (for example to exchange the cliffs that it uses). And you have the added bonus that you can use up to 16 tiles.

10-04-2007, 08:58 PM	#5
PenguinEmperor	Actually, Pitzer, you CAN change the base tileset that way.

10-04-2007, 11:28 PM	#6
PitzerMike	Oh, pretty cool. I didn't know it. Then of course that's easier. :)

10-05-2007, 05:02 PM

Wraithwynd

Advanced/Tileset will work.

But... You need to make a copy of your map and tinker with the advanced set you use. Sometimes if you change the set groups of tiles will default to one tile from the new set.

Cliffs are not "switchable" meaning the first cliff will be replaced with the first cliff. You might have to use Replace Cliff option to switch cliff types.

Say you used Ashenvale Rock and Dalarian Ruins White (gray) marble - and you try to replace with Two other types of rocks - what can (and often does) happen is that the act of replacing converts both rocks to just one new tile.

Tinkering means you need to select as many tiles as you already have and have them lined left to right in a was that like tiles (grass, dirt, rock) will replace the existing kind (grass, dirt, rock). It can take several attempts to do so - so on your copy fiddle with the tile sets and get the closest you can then do it in your original map.
