Spell Making Session #10 Submissions

03-02-2008, 08:40 PM	#1
Rising_Dusk	The only posts that belong in this thread are submissions for the 10th spell making session. Any other posts will be deleted and their posters penalized for breaking the rules.

03-03-2008, 02:12 PM

Szythe

Piercing Knives

The Assassin throws 4/7/10 knives which curve toward the target point. Upon hitting an enemy unit, each knife will deal 25/35/45 damage, slow the unit by 20%/25%/30%, and pierce it. Pierced units will have 40/55/70 damage dealt to them upon the expiration of the Pierce buff. Pierce damage is stackable. Pierce lasts 5 seconds. Each enemy may only be hit by one knife from each volley.

Download Map

Attached Images


Attached Files

PiercingKnives.w3x (28.8 KB)

03-04-2008, 12:34 AM

Toadcop

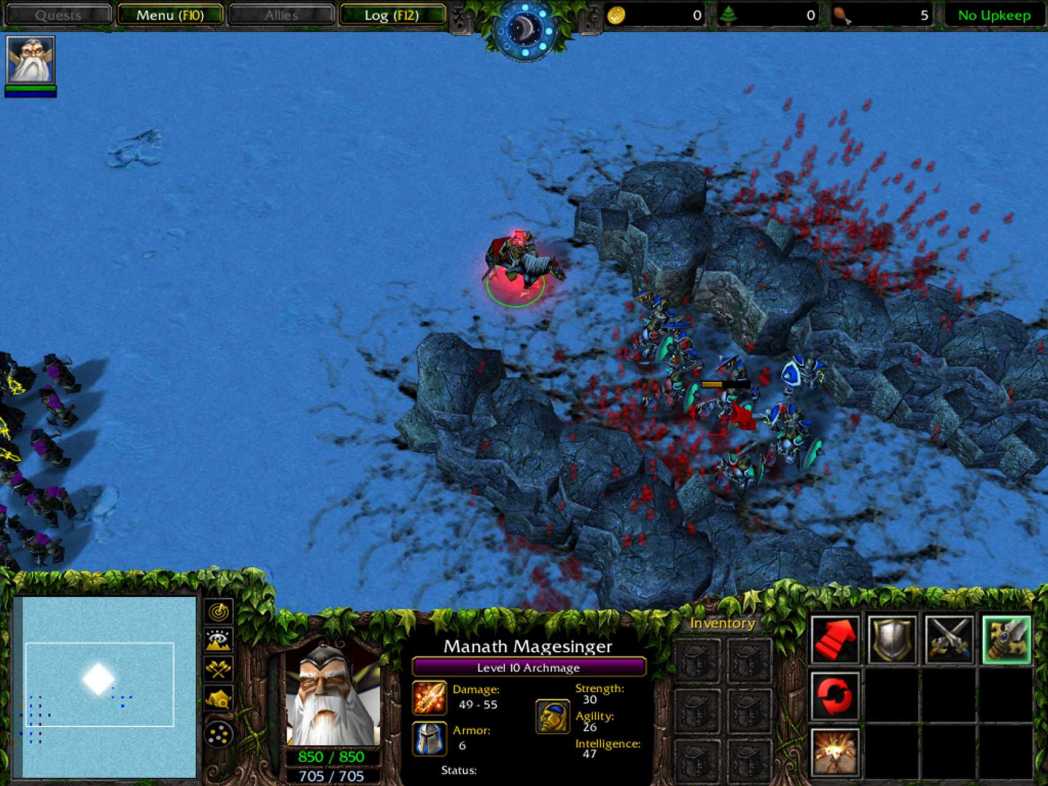

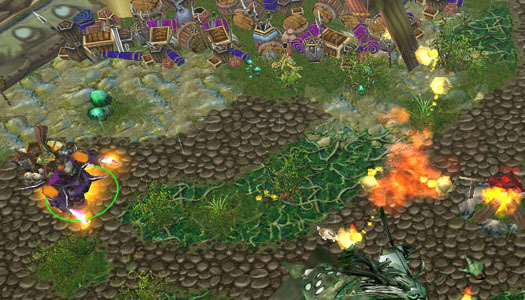

STONE CRUSHER

the Stone Master summon wave of falling rocks which damages nearby units xD loled.

3 lvl spell.
1 - 10 rocks
2 - 20 rocks
3 - 30 rocks

// MUI use vJass... (taked ~8 hours to create this spell if some one is interested in this xD)

Attached Images


Attached Files

Tc's_Stone_Crusher_Spell.w3x (57.7 KB)

03-04-2008, 09:12 PM

Anitarf

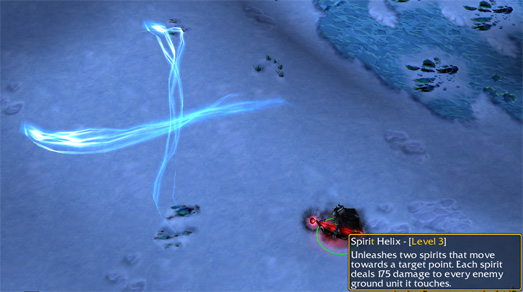

Click image for larger version

Name: SpiritHelix.jpg
Views: 532
Size: 57.1 KB
ID: 32237

Spirit Helix - The spell follows the JESP standard and requires the Jass NewGen pack. .SpiritHelix.w3x.

Attached Images


Attached Files

SpiritHelix.w3x (33.2 KB)

03-05-2008, 11:53 PM

emjlr3

I guess this would be an alpha submission, I can updated this at a later date correct?

Spirit Bomb

Do some neat stuff, deal some damage, lose some life, etc.

Spell Code:

scope SpiritBomb

globals
    // Rawcode of Spirit Bomb ability
    private constant integer abil_id = 'A000'
    // Rawcode of your caster dummy
    private constant integer dummy_id = 'n000'
    // Order for both abilities
    private constant string order = "channel"
    // Area for damage and tree destroy
    private constant real area = 500.
    // Rawcode of Spirit Bomb (Helper) ability
    private constant integer ally_abil_id = 'A001'
    // HP cost per ~.2 seconds of channel time for caster/helpers
    private constant real cost = 10.
    // Max channel duration
    private constant real length = 10.
    // Speed at which the bomb increases its size
    private constant real size = 1.02
    // Effect for bomb
    private constant string bombfx = "units\\nightelf\\Wisp\\Wisp.mdl"
    // Effect for aura around caster
    private constant string aurafx = "Abilities\\Spells\\NightElf\\Tranquility\\Tranquility.mdl"
    // Effect at target when the bomb hits
    private constant string hit = "Abilities\\Spells\\Human\\Thunderclap\\ThunderClapCaster.mdl"
    // Lightning effect from allies who help to spirit bomb
    private constant string lightfx = "DRAL"

    // Do not touch these
    private boolexpr Bool = null
    private real Ally_Help = 0.
    private unit Caster = null
    private unit Bomb = null
    // Trigger for ability, will become SpiritBomb_Trigger, which can be used publically
    public trigger Trigger = null
    private timer T = CreateTimer()
    private group G = CreateGroup()
    private location L = null
    private rect R = Rect(-area,-area,area,area)
endglobals
private function Damage takes real time returns real
    // Input equation for damage dealt
    // Time refers to the length of time the hero channels
    // Ally_Help refers to the length of time allies helped by channeling as well, which is additive for each ally
    return (75.*time) + (75.*Ally_Help)
    // For instance here, the bomb deals 75 damage for every second channeled by the hero
    // and 75 additional damage for every second any other hero channels
endfunction

//===========================================================================
// Struct for movement
private struct BombMovement
    unit bomb
    real time
    real cos
    real sin
    real speed
    integer runs
    effect sfx
endstruct
globals
    private BombMovement dat
endglobals

// Ally functions
private function Add_Ability takes nothing returns nothing
    call UnitAddAbility(GetEnumUnit(),ally_abil_id)
endfunction
private function Remove_Ability takes nothing returns nothing
    call UnitRemoveAbility(GetEnumUnit(),ally_abil_id)
    if OrderId2String(GetUnitCurrentOrder(GetEnumUnit()))==order then
        call PauseUnit(GetEnumUnit(),true)
        call IssueImmediateOrder(GetEnumUnit(),"stop")
        call PauseUnit(GetEnumUnit(),false)
    endif
endfunction
private function Ally_Actions takes nothing returns nothing
    local timer tim = CreateTimer()
    local unit cast = GetTriggerUnit()
    local lightning light = AddLightningEx(lightfx,false,GetUnitX(Bomb),GetUnitY(Bomb),700.,GetUnitX(cast),GetUnitY(cast),200.)

    call TimerStart(tim,9999.,false,null)
    loop
        exitwhen OrderId2String(GetUnitCurrentOrder(cast))!=order or GetWidgetLife(cast)<.405
        call TriggerSleepAction(0.)
        call UnitDamageTarget(cast,cast,cost,false,false,ATTACK_TYPE_NORMAL,DAMAGE_TYPE_NORMAL,null)
    endloop
    set Ally_Help = Ally_Help + TimerGetElapsed(tim)
    call DestroyTimer(tim)
    call DestroyLightning(light)

    set cast = null
    set tim = null
    set light = null
endfunction
private function Allies takes nothing returns boolean
    set bj_ghoul[55] = GetFilterUnit()
    return bj_ghoul[55]!=Caster and GetWidgetLife(bj_ghoul[55])>.405 and IsUnitAlly(bj_ghoul[55],GetOwningPlayer(Caster)) and IsUnitType(bj_ghoul[55],UNIT_TYPE_HERO)==true
endfunction

// Main spell functions
private function FilterIsEnemy takes nothing returns boolean
    return IsUnitEnemy(GetFilterUnit(), bj_groupEnumOwningPlayer) and GetUnitState(GetFilterUnit(),UNIT_STATE_LIFE)>.405
endfunction
private function DamageEnemiesArea takes unit damageUnit, real x, real y, real amount returns nothing
    local unit u

    call GroupClear(G)
    set bj_groupEnumOwningPlayer = GetOwningPlayer(damageUnit)
    call GroupEnumUnitsInRange(G, x, y, area, Condition(function FilterIsEnemy))
    loop
        set u = FirstOfGroup(G)
        exitwhen u == null
        call GroupRemoveUnit(G,u)
        call UnitDamageTarget(damageUnit,u,amount,false,false,ATTACK_TYPE_NORMAL,DAMAGE_TYPE_NORMAL,null)
    endloop
endfunction
private function KillTrees takes nothing returns nothing
    call KillDestructable(GetEnumDestructable())
endfunction
private function Move_Bomb_Child takes nothing returns nothing
    local real x = GetUnitX(dat.bomb)
    local real y = GetUnitY(dat.bomb)

    if dat.runs>=25 then
        call MoveRectTo(R,x,y)
        call EnumDestructablesInRect(R,null,function KillTrees)
        call DamageEnemiesArea(dat.bomb,x,y,Damage(dat.time))
        call KillUnit(dat.bomb)
        call DestroyEffect(dat.sfx)
        call DestroyEffect(AddSpecialEffect(hit,x,y))
        call dat.destroy(dat)
        set Ally_Help = 0.
        call PauseTimer(T)
    else
        call SetUnitX(dat.bomb,x + dat.cos)
        call SetUnitY(dat.bomb,y + dat.sin)
        set dat.runs = dat.runs + 1
        call SetUnitFlyHeight(dat.bomb,250.-(10.*dat.runs),0.)
    endif
endfunction
private function Move_Bomb takes unit bomb, real time, location targ, effect sfx returns nothing
    local real xtarg = GetLocationX(targ)
    local real ytarg = GetLocationY(targ)
    local real xbomb = GetUnitX(bomb)
    local real ybomb = GetUnitY(bomb)
    local real ang = Atan2((ytarg-ybomb),(xtarg-xbomb))
    local real dist = SquareRoot((xbomb-xtarg)*(xbomb-xtarg) + (ybomb-ytarg)*(ybomb-ytarg))

    set dat = BombMovement.create()
    set dat.bomb = bomb
    set dat.time = time
    set dat.speed = dist/25.
    set dat.cos = dat.speed*Cos(ang)
    set dat.sin = dat.speed*Sin(ang)
    set dat.runs = 0
    set dat.sfx = sfx

    call PauseTimer(T)
    call TimerStart(T,.04,true,function Move_Bomb_Child)
endfunction
private function Main_Actions takes nothing returns nothing
    local unit cast = GetTriggerUnit()
    local player play = GetOwningPlayer(cast)
    local unit bomb = CreateUnit(play,dummy_id,GetUnitX(cast),GetUnitY(cast),0.)
    local unit aura = CreateUnit(play,dummy_id,GetUnitX(cast),GetUnitY(cast),0.)
    local effect auraeffect = AddSpecialEffectTarget(aurafx,aura,"origin")
    local effect bombeffect = AddSpecialEffectTarget(bombfx,bomb,"origin")
    local real scale = 1.
    set L = GetSpellTargetLoc()
    call GroupClear(G)

    set Caster = cast
    set Bomb = bomb
    call UnitAddAbility(bomb, 'amrf')
    call UnitRemoveAbility(bomb, 'amrf')

    call GroupEnumUnitsInRect(G,bj_mapInitialPlayableArea,Bool)
    call ForGroup(G,function Add_Ability)

    call SetUnitScale(aura,2.,2.,2.)
    call SetUnitScale(bomb,.5,.5,.5)
    call SetUnitFlyHeight(bomb,250.,0.)
    call SetUnitFlyHeight(aura,0.,0.)

    call TimerStart(T,9999.,false,null)
    loop
        exitwhen OrderId2String(GetUnitCurrentOrder(cast))!=order or TimerGetElapsed(T)>length or GetWidgetLife(cast)<.405
        call TriggerSleepAction(0.)
        call SetUnitScale(bomb,scale,scale,scale)
        call UnitDamageTarget(cast,cast,cost,false,false,ATTACK_TYPE_NORMAL,DAMAGE_TYPE_NORMAL,null)

        set scale = scale*size
    endloop

    call ForGroup(G,function Remove_Ability)
    call KillUnit(aura)
    call DestroyEffect(auraeffect)
    call Move_Bomb(bomb,TimerGetElapsed(T),L,bombeffect)

    set aura = null
    set cast = null
    set bomb = null
    set bombeffect = null
    set auraeffect = null
    call RemoveLocation(L)
endfunction

// Conditions
private function Conditions takes nothing returns nothing
    if GetSpellAbilityId()==abil_id then
        call Main_Actions()
    elseif GetSpellAbilityId()==ally_abil_id then
        call Ally_Actions()
    endif
endfunction

//===========================================================================
public function InitTrig takes nothing returns nothing
    set Trigger = CreateTrigger()

    call TriggerRegisterAnyUnitEventBJ( Trigger, EVENT_PLAYER_UNIT_SPELL_EFFECT )
    call TriggerAddAction( Trigger, function Conditions )

    set Bool = Condition(function Allies)
endfunction

endscope

btw this is very un-MUI, more from a lack of need then anything else

Attached Files

Spirit Bomb - emjlr3.w3x (105.6 KB)

03-06-2008, 09:08 AM

ADOLF

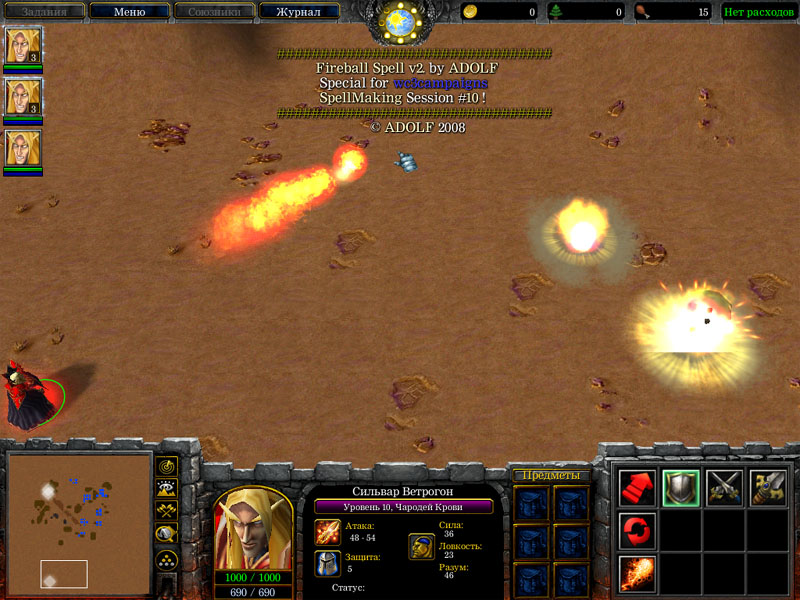

fireball v2.

just another fireball spl by ME=)

// use NGJP

Attached Images


Attached Files

Fireball_v2._by ADOLF.w3x (33.4 KB)

03-07-2008, 02:17 AM

moyack

My Entry:

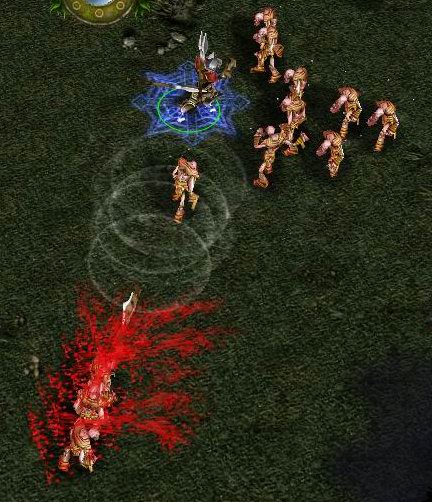

The Spear of Longinus
By moyack

Requires JASS NEW GEN pack 4A or up. Totally MUI, complies with the JESP standard.

Spell type: Passive

Description: The Spear of Longinus is known for being a weapon blessed by the Gods, giving to its owner astonishing strength and deadly results. Every time the owner of this mighty spear attacks, it has a chance to deal additional damage to the target unit, impaling them and throwing away a long distance.

Additionally if there are units behind them, this spear will impale them with the target unit.

Level 1: low chance to cast the ability, up to 3 units impaled, deals 100 damage to each impaled unit, consumes 10 mana.
Level 2: medium chance to cast the ability, up to 4 units impaled, deals 150 damage to each impaled unit, consumes 8 mana.
Level 3: high chance to cast the ability, up to 5 units impaled, deals 200 damage to each impaled unit, consumes 6 mana.

Download.

Changelog

Attached Images


Attached Files

Longinus Spear.w3x (33.1 KB)

03-07-2008, 10:06 PM

Alexander244

Harmonic Beserk

Requires
JassNewGenPack v4A, or later

Credits
Vexorian: JassHelper, GetPathability
PipeDream: Grimoire
PitzerMike: PJass

Description
The Blademaster goes into a focused beserk around a controllable point of balance, damaging enemy units with his dance. More damage is done at higher speeds.

The point around which the hero "oscillates" can be moved by the player, so the direction and speed can be constantly adjusted to suit the situation.

Level 1 - 15-45 damage per second, 4.0 second oscillations.
Level 2 - 25-75 damage per second, 3.8 second oscillations.
Level 3 - 35-105 damage per second, 3.6 second oscillations.

Complies with the JESP standard.

Spell Code:

//==================================================================================//
//  SPELL: HARMONIC BESERK                                      BY: ALEXANDER244    //
//  VERSION: 1.1                                                                    //
//==================================================================================//

scope HarmonicBeserk

    private keyword spelldata

    //==========================================================================//
    //  CONFIGURATION SECTION:                                                  //
    //==========================================================================//

    //  OBJECT EDITOR EDITS:            COMMENTS:
    //   Caster Pitch Angle              I suggest you set this to zero, or the spell can look strange on slopping terrain
    //   Duration                        Update below function to return same
    //   Equilibrium unit appearance     Update flyheight + lightning attach height here


    //  SPELL_ID                = ID of the spell ability in the object editor
    //  DUMMY_ID                = ID of the equilibrium unit in the object editor
    //  NUMBER_LEVELS           = How many levels are there in the spell (so constants can be precalculated)
    //  SPELL_ORDERID           = OrderId of the spell ability, can be found in the object editor
    //  LIGHTNING_ID            = ID of the lightning between the hero and equilibrium point
    //  CASTER_ANIMATION        = Animation the caster should play for the spell duration
    //  ANIM_SPEED_MULTIPLIER   = Speed multiplier of caster animation
    //  TIMER_PERIOD            = Rate at which the effect loop executes, effects appearance and performance
    //  MAX_MOVESTEP            = Max distance the caster can move at once; used to prevent jumping over unpathable terrain
    //                            & jaggedy movement. MAX movespeed = this value/timer period.
    //  ATTACH_HEIGHT_CASTER    = Height of the connecting lightning on the caster
    //  ATTACH_HEIGHT_EQUIL     = Height of the connecting lightning on the equilibrium unit
    //  EQUIL_FLYHEIGHT         = Fly height of the equilibrium unit
    //  DAMPING_PER_SEC         = Speed decrease as percentage per sec, if moving in a CIRCLULAR-ish motion
    //                            above max distance, this is to prevent abuse of centripetal motion for high speeds
    //                            100 == no damping, 0 == instant stop
    //  DAMAGE_TYPE             = Damage type of beserk damage
    //  ATTACK_TYPE             = Attack type of beserk damage

    //  DAMAGE_XXX              = If target is XXX, should it be damaged? true/false
    //                            other DAMAGE_XXX options can easily be added in the spell loop

    globals
        private constant    integer         SPELL_ID                = 'A000'
        private constant    integer         DUMMY_ID                = 'h000'
        private constant    integer         NUMBER_LEVELS           = 3
        private constant    string          SPELL_ORDERID           = "berserk"
        private constant    string          LIGHTNING_ID            = "LEAS"
        private constant    string          CASTER_ANIMATION        = "Attack Walk Stand Spin"
        private constant    real            ANIM_SPEED_MULTIPLIER   = 1.
        private constant    real            TIMER_PERIOD            = 0.025
        private constant    real            MAX_MOVESTEP            = 32.
        private constant    real            ATTACH_HEIGHT_CASTER    = 100.
        private constant    real            ATTACH_HEIGHT_EQUIL     = 180.
        private constant    real            EQUIL_FLYHEIGHT         = 10.
        private constant    real            DAMPING_PER_SEC         = 75.0
        private constant    damagetype      DAMAGE_TYPE             = DAMAGE_TYPE_NORMAL
        private constant    attacktype      ATTACK_TYPE             = ATTACK_TYPE_NORMAL

        private constant    boolean         DAMAGE_ENEMY            = true
        private constant    boolean         DAMAGE_ALLY             = false
        private constant    boolean         DAMAGE_AIR              = false
        private constant    boolean         DAMAGE_GROUND           = true
        private constant    boolean         DAMAGE_STRUCTURE        = true
        private constant    boolean         DAMAGE_MAGICIMMUME      = true
        private constant    boolean         DAMAGE_MECHANICAL       = true
        private constant    boolean         DAMAGE_ETHEREAL         = false
    endglobals

    //Duration of the spell in OBJECT EDITOR (for expiration timer on equilibrium)
    private constant function DURATION takes integer lvl returns real
        return 20.
    endfunction

    //Time it takes for one oscillation, assuming equilibrium unit stationary and no path blocks
    private constant function OSCILLATION_PERIOD takes integer lvl returns real
        return 4.2 - .2*lvl
    endfunction

    //If this value is exceeded, the caster will experience massive acceleration towards the equilibrium
    //This value will also effect the max speed that can be achieved within the max range, so approx the correct
    //OSCILLATION_PERIOD is achieved.
    private constant function MAX_DISTANCE takes integer lvl returns real
        return 200. + 20. * lvl
    endfunction

    //Movement speed of the equilibrium unit (this movement is triggered, so set as high as you like)
    private constant function EQUIL_MOVESPEED takes integer lvl returns real
        return 300 + 50.*lvl
    endfunction

    //Area around hero that receives damage
    private constant function AOE takes integer lvl returns real
        return 220.
    endfunction

    //Damage delt to enemies in area every second
    private constant function DAMAGE takes integer lvl returns real
        return 5. + lvl * 10.
    endfunction

    //Extra Damage done at max speed per sec, this is a linear increase from zero speed
    //Max speed occurs by the equilibrium when max distance is achieved, and can also be achieved
    //by the player spinning the caster in a circle.
    //Note that although damage per sec is higher, contact time per unit will be less.
    private constant function MAX_SPEED_BONUS_DAM takes integer lvl returns real
        return 10. + lvl * 20.
    endfunction

    //===========================================================================
    //This function is called before damage is done to targets, the returned real is the damage to be done
    //If the returned value is less than or equal to zero, no damage will be done.
    private function onDamage takes unit caster, unit target, real damage returns real
        return damage
    endfunction

    //==========================================================================//
    //  MAIN SECTION:                                                           //
    //==========================================================================//
    globals
        private             integer             SPELLDATA_TOTAL         = 0
        private             spelldata array     SPELLDATA_ARRAY
        private             timer               SPELL_TIMER             = CreateTimer()
        private             group               TEMPGROUP               = CreateGroup()
        private             location            TEMPLOC                 = Location(0,0)
        private             boolexpr            BOOL_TRUE

        private             real                minX
        private             real                maxX
        private             real                minY
        private             real                maxY

        private             real array          EQUILSPEED_CONST
        private             real array          MAXSPEED_CONST
        private             real array          ACCELERATION_CONST
        private             real                DAMPING_FACTOR
    endglobals

    //===========================================================================
    private function BOOLEXPR_TRUE takes nothing returns boolean
        return true
    endfunction

    private function MakeFlyable takes unit u returns nothing
        call UnitAddAbility(u, 'Amrf')
        call UnitRemoveAbility(u, 'Amrf')
    endfunction

    private function XBounds takes real x returns real
        if x > maxX then
            return maxX
        elseif x < minX then
            return minX
        endif
        return x
    endfunction

    private function YBounds takes real y returns real
        if y > maxY then
            return maxY
        elseif y < minY then
            return minY
        endif
        return y
    endfunction

    //===========================================================================
    private struct spelldata
        player owner
        integer lvl
        lightning ltng

        unit caster
        real cvx = 0.
        real cvy = 0.

        unit dummy
        real evx = 0.
        real evy = 0.
        widget etw = null
        real etx = 0.
        real ety = 0.
        real epx = 0.
        real epy = 0.
        string order = "stop"

        boolean temp = true
        boolean dest = false

        static method create takes unit caster, real hx, real hy, real tx, real ty returns spelldata
            local spelldata sd = spelldata.allocate()

            //sets variables, creates stuff etc.
            set sd.caster = caster
            set sd.owner = GetOwningPlayer(caster)
            set sd.lvl = GetUnitAbilityLevel(caster, SPELL_ID)
            set sd.dummy = CreateUnit(sd.owner, DUMMY_ID, tx, ty, 0.)
            set sd.ltng = AddLightning(LIGHTNING_ID, true, hx, hy, tx, ty)
            set sd.etx = GetUnitX(sd.dummy)
            set sd.ety = GetUnitY(sd.dummy)

            call MakeFlyable(sd.dummy)
            call SetUnitFlyHeight(sd.dummy, EQUIL_FLYHEIGHT, 0.)
            call UnitApplyTimedLife(sd.dummy, 'BTLF', DURATION(sd.lvl)+TIMER_PERIOD)
            call SetUnitAnimation(caster, CASTER_ANIMATION)
            call SetUnitTimeScale(caster, ANIM_SPEED_MULTIPLIER)
            call UnitAddAbility(caster, 'ACmi')
            if (GetLocalPlayer() == sd.owner) then
                call SelectUnit(sd.caster, false)
                call SelectUnit(sd.dummy, true)
            endif

            set SPELLDATA_TOTAL = SPELLDATA_TOTAL + 1
            set SPELLDATA_ARRAY[SPELLDATA_TOTAL - 1] = sd
            return sd
        endmethod

        method onDestroy takes nothing returns nothing
            call DestroyLightning(.ltng)
            call UnitRemoveAbility(.caster, 'ACmi')
            call SetUnitTimeScale(.caster, 1.)
            if GetWidgetLife(.caster) > 0.405 then
                call SetUnitPosition(.caster, GetUnitX(.caster), GetUnitY(.caster))
                if IsUnitSelected(.dummy, .owner) then
                    if (GetLocalPlayer() == .owner) then
                        call SelectUnit(.dummy, false)
                        call SelectUnit(.caster, true)
                    endif
                endif
            endif
            if not (GetWidgetLife(.dummy) < 0.405) then
                call KillUnit(.dummy)
            endif
            set .dummy = null
            set .caster = null
        endmethod
    endstruct

    //===========================================================================
    private function SpellCondition takes nothing returns boolean
        return GetSpellAbilityId() == SPELL_ID
    endfunction

    private function EquilOrderCondition takes nothing returns boolean
        local string s = OrderId2String(GetIssuedOrderId())
        return GetUnitTypeId(GetTriggerUnit()) == DUMMY_ID and (s == "move" or s == "smart" or s == "patrol" or s == "stop" or s == "holdposition")
    endfunction

    //===========================================================================
    function SpellLoop takes nothing returns nothing
        local unit caster
        local unit dummy
        local unit target
        local spelldata sd
        local integer i = 0
        local real hx
        local real hy
        local real hz
        local real tx
        local real ty
        local real tz
        local real t2x
        local real t2y
        local real angle
        local real theta
        local real acc
        local real s
        local real dist
        local real dam
        local boolean b = true

        //Go through all running instances of the spell
        loop
            exitwhen i == SPELLDATA_TOTAL
            set sd = SPELLDATA_ARRAY[i]

            if sd.dest then
                set SPELLDATA_ARRAY[i] = SPELLDATA_ARRAY[SPELLDATA_TOTAL - 1]
                set SPELLDATA_TOTAL = SPELLDATA_TOTAL - 1
                call sd.destroy()
                set i = i - 1
            else
                //Get Basic Info
                set caster = sd.caster
                set dummy = sd.dummy
                set hx = GetUnitX(caster)
                set hy = GetUnitY(caster)
                call MoveLocation(TEMPLOC, hx, hy)
                set hz = GetLocationZ(TEMPLOC)
                set tx = GetUnitX(dummy)
                set ty = GetUnitY(dummy)
                call MoveLocation(TEMPLOC, tx, ty)
                set tz = GetLocationZ(TEMPLOC)

                //Update the lightning
                call MoveLightningEx(sd.ltng, true, hx, hy, hz + ATTACH_HEIGHT_CASTER, tx, ty, tz + ATTACH_HEIGHT_EQUIL)

                //Woking out new velocity of equilibrium
                //If equilibrium has a widget target:
                if not (sd.etw == null) then
                    set t2x = GetWidgetX(sd.etw) - tx
                    set t2y = GetWidgetY(sd.etw) - ty
                    if t2y*t2y+t2x*t2x > EQUILSPEED_CONST[sd.lvl] * EQUILSPEED_CONST[sd.lvl] then
                        set angle = Atan2(t2y, t2x)
                        set sd.evx = Cos(angle) * EQUILSPEED_CONST[sd.lvl]
                        set sd.evy = Sin(angle) * EQUILSPEED_CONST[sd.lvl]
                    else
                        set sd.evx = 0.
                        set sd.evy = 0.
                    endif
                //If equilibrium is not moving:
                elseif (sd.evx == 0. and sd.evy == 0.) then
                    set t2x = sd.etx - tx
                    set t2y = sd.ety - ty
                    if t2y*t2y+t2x*t2x > EQUILSPEED_CONST[sd.lvl] * EQUILSPEED_CONST[sd.lvl] then
                        set angle = Atan2(t2y, t2x)
                        set sd.evx = Cos(angle) * EQUILSPEED_CONST[sd.lvl]
                        set sd.evy = Sin(angle) * EQUILSPEED_CONST[sd.lvl]
                    elseif sd.order == "patrol" then
                        set t2x = sd.epx - tx
                        set t2y = sd.epy - ty
                        set angle = Atan2(t2y, t2x)
                        set sd.evx = Cos(angle) * EQUILSPEED_CONST[sd.lvl]
                        set sd.evy = Sin(angle) * EQUILSPEED_CONST[sd.lvl]
                    endif
                //If equilibrium is moving:
                else
                    set t2x = sd.etx - tx
                    set t2y = sd.ety - ty
                    if t2y*t2y+t2x*t2x < EQUILSPEED_CONST[sd.lvl] * EQUILSPEED_CONST[sd.lvl] then
                        set sd.evx = 0.
                        set sd.evy = 0.
                    elseif sd.order == "patrol" then
                        set t2x = sd.epx - tx
                        set t2y = sd.epy - ty
                        if t2y*t2y+t2x*t2x < EQUILSPEED_CONST[sd.lvl] * EQUILSPEED_CONST[sd.lvl] then
                            set sd.evx = 0.
                            set sd.evy = 0.
                        endif
                    endif
                endif

                //Move equilibrium + pathing checks
                if not (sd.evx == 0. and sd.evy == 0.) then
                    set tx = tx + sd.evx
                    set ty = ty + sd.evy
                    call SetUnitX(dummy, XBounds(tx))
                    call SetUnitY(dummy, YBounds(ty))
                endif

                //Working out new velocity of caster
                set ty = ty - hy
                set tx = tx - hx
                set angle = Atan2(ty, tx)
                set dist = SquareRoot(ty*ty + tx*tx)
                set acc = ACCELERATION_CONST[sd.lvl] * dist
                if dist > MAX_DISTANCE(sd.lvl) then
                    set sd.cvx = sd.cvx + Cos(angle) * 2 * acc * acc
                    set sd.cvy = sd.cvy + Sin(angle) * 2 * acc * acc
                    set s = SquareRoot(sd.cvx * sd.cvx + sd.cvy * sd.cvy)
                    if s > MAX_MOVESTEP then
                        set sd.cvx = (MAX_MOVESTEP * sd.cvx) / s
                        set sd.cvy = (MAX_MOVESTEP * sd.cvy) / s
                        set b = false
                    endif
                    //theta is the angle between motion vector and caster-equil vector
                    set theta = Acos((tx*sd.cvx+ty*sd.cvy)/(SquareRoot(tx*tx+ty*ty)*s))
                    if not (theta < bj_PI*0.25 or theta > bj_PI*0.75) then
                        set sd.cvx = sd.cvx * DAMPING_FACTOR
                        set sd.cvy = sd.cvy * DAMPING_FACTOR
                    endif
                    set dist = MAX_DISTANCE(sd.lvl)     //so equilibrium alpha does not exceed 100%
                else
                    set sd.cvx = sd.cvx + Cos(angle) * acc
                    set sd.cvy = sd.cvy + Sin(angle) * acc
                    set s = sd.cvx * sd.cvx + sd.cvy * sd.cvy
                    if s > MAXSPEED_CONST[sd.lvl] * MAXSPEED_CONST[sd.lvl] then
                        set s = SquareRoot(s)
                        set sd.cvx = (MAXSPEED_CONST[sd.lvl] * sd.cvx) / s
                        set sd.cvy = (MAXSPEED_CONST[sd.lvl] * sd.cvy) / s
                    endif
                endif

                //Move caster + pathing checks etc.
                set tx = hx + sd.cvx
                set ty = hy + sd.cvy
                if Pathability_Check(tx, ty) then
                    call SetUnitX(caster, tx)
                    call SetUnitY(caster, ty)
                else
                    if not Pathability_Check(tx, hy) then
                        if b then
                            if sd.cvx < 0. then
                                call SetUnitX(caster, hx + 4.)
                            else
                                call SetUnitX(caster, hx - 4.)
                            endif
                        endif
                        set sd.cvx = 0
                    endif
                    if not Pathability_Check(hx, ty) then
                        if b then
                            if sd.cvy < 0. then
                                call SetUnitY(caster, hy + 4.)
                            else
                                call SetUnitY(caster, hy - 4.)
                            endif
                        endif
                        set sd.cvy = 0
                    endif
                endif

                //Damages enemies in berserk area
                call GroupClear(TEMPGROUP)
                call GroupEnumUnitsInRange(TEMPGROUP, tx, ty, AOE(sd.lvl), BOOL_TRUE)

                if not (FirstOfGroup(TEMPGROUP) == null) then
                    set dam = DAMAGE(sd.lvl) * TIMER_PERIOD
                    set s = sd.cvx*sd.cvx+sd.cvy*sd.cvy
                    if s < MAXSPEED_CONST[sd.lvl]*MAXSPEED_CONST[sd.lvl] then
                        set s = SquareRoot(s)/MAXSPEED_CONST[sd.lvl]
                    else
                        set s = 1
                    endif
                    set dam = dam + s * TIMER_PERIOD * MAX_SPEED_BONUS_DAM(sd.lvl)
                endif

                loop
                    set target = FirstOfGroup(TEMPGROUP)
                    exitwhen target == null
                    call GroupRemoveUnit(TEMPGROUP, target)

                    set b = true
                    set b = b and GetWidgetLife(target) > 0.405
                    set b = b and not (not DAMAGE_ENEMY and IsPlayerEnemy(GetOwningPlayer(target), sd.owner))
                    set b = b and not (not DAMAGE_ALLY and IsPlayerAlly(GetOwningPlayer(target), sd.owner))
                    set b = b and not (not DAMAGE_GROUND and IsUnitType(target, UNIT_TYPE_GROUND))
                    set b = b and not (not DAMAGE_AIR and IsUnitType(target, UNIT_TYPE_FLYING))
                    set b = b and not (not DAMAGE_STRUCTURE and IsUnitType(target, UNIT_TYPE_STRUCTURE))
                    set b = b and not (not DAMAGE_MAGICIMMUME and IsUnitType(target, UNIT_TYPE_MAGIC_IMMUNE))
                    set b = b and not (not DAMAGE_MECHANICAL and IsUnitType(target, UNIT_TYPE_MECHANICAL))
                    set b = b and not (not DAMAGE_ETHEREAL and IsUnitType(target, UNIT_TYPE_ETHEREAL))
                    if b then
                        set dam = onDamage(caster, target, dam)
                        if dam > 0. then
                            call UnitDamageTarget(caster, target, dam, false, false, ATTACK_TYPE, DAMAGE_TYPE, WEAPON_TYPE_WHOKNOWS)
                        endif
                    endif
                endloop

                //Update the effects
                call SetUnitVertexColor(dummy, 255, 255, 255, R2I(255*(dist/MAX_DISTANCE(sd.lvl))))

                //If spell ended (due to caster death or no longer channeling) set the spell instance to be destroyed
                if GetWidgetLife(caster) < 0.405 or OrderId2String(GetUnitCurrentOrder(caster)) != SPELL_ORDERID then
                    set sd.dest = true
                endif
            endif
            set i = i + 1
        endloop

        //Various cleanup stuff
        set caster = null
        set dummy = null

        //Pause the timer if there are no spell instances
        if SPELLDATA_TOTAL == 0 then
            call PauseTimer(SPELL_TIMER)
        endif
    endfunction

    private function SpellEffect takes nothing returns nothing
        local unit u = GetSpellAbilityUnit()
        local player p = GetOwningPlayer(u)
        local location l = GetSpellTargetLoc()
        local real hx = GetUnitX(u)
        local real hy = GetUnitY(u)
        local real tx = GetLocationX(l)
        local real ty = GetLocationY(l)
        local spelldata sd = spelldata.create(u, hx, hy, tx, ty)
        if SPELLDATA_TOTAL == 1 then
            call TimerStart(SPELL_TIMER, TIMER_PERIOD, true, function SpellLoop)
        endif
        call RemoveLocation(l)
        set l = null
        set u = null
    endfunction

    private function EquilOrder takes nothing returns nothing
        local unit u = GetOrderedUnit()
        local widget w = null
        local string s
        local integer i = 0
        local spelldata sd

        //Get the spell data the equilibrium is part of, if none, return
        loop
            if i == SPELLDATA_TOTAL then
                set u = null
                return
            endif
            set sd = SPELLDATA_ARRAY[i]
            exitwhen sd.dummy == u
            set i = i + 1
        endloop

        //'null' all previous order data
        if sd.temp then
            set sd.evx = 0.
            set sd.evy = 0.
            set sd.etw = null
            set sd.etx = GetUnitX(u)
            set sd.ety = GetUnitY(u)
            set sd.epx = 0.
            set sd.epy = 0.

            //find what order was issued and do appropriate
            set w = GetOrderTarget()
            set s = OrderId2String(GetIssuedOrderId())
            set sd.order = s
            if not (w == null) then
                set sd.etw = w
                set w = null
            elseif s == "patrol" then
                set sd.epx = sd.etx
                set sd.epy = sd.ety
                set sd.etx = GetOrderPointX()
                set sd.ety = GetOrderPointY()
            elseif s == "smart" or s == "move" then
                set sd.etx = GetOrderPointX()
                set sd.ety = GetOrderPointY()
            endif

            //Stop the effects of the actual order occuring
            call PauseUnit(u, true)
            call IssueImmediateOrder(u, "stop")
            call PauseUnit(u, false)
            set sd.temp = false
        else
            set sd.temp = true
        endif

        set u = null
    endfunction

    //===========================================================================
    function InitTrig_HarmonicBeserk takes nothing returns nothing
        //Init the triggers
        local integer i = 0
        local trigger t = CreateTrigger()
        set gg_trg_HarmonicBeserk = CreateTrigger()
        loop
            call TriggerRegisterPlayerUnitEvent(gg_trg_HarmonicBeserk, Player(i), EVENT_PLAYER_UNIT_SPELL_EFFECT, null)
            call TriggerRegisterPlayerUnitEvent(t, Player(i), EVENT_PLAYER_UNIT_ISSUED_ORDER, null)
            call TriggerRegisterPlayerUnitEvent(t, Player(i), EVENT_PLAYER_UNIT_ISSUED_POINT_ORDER, null)
            call TriggerRegisterPlayerUnitEvent(t, Player(i), EVENT_PLAYER_UNIT_ISSUED_TARGET_ORDER, null)
            set i = i + 1
            exitwhen i == 16
        endloop
        call TriggerAddCondition(gg_trg_HarmonicBeserk, Condition(function SpellCondition))
        call TriggerAddCondition(t, Condition(function EquilOrderCondition))
        call TriggerAddAction(gg_trg_HarmonicBeserk, function SpellEffect)
        call TriggerAddAction(t, function EquilOrder)

        //Get map bounds, to prevent crashes
        set minX = GetRectMinX(bj_mapInitialPlayableArea)
        set maxX = GetRectMaxX(bj_mapInitialPlayableArea)
        set minY = GetRectMinY(bj_mapInitialPlayableArea)
        set maxY = GetRectMaxY(bj_mapInitialPlayableArea)

        //Boolean to prevent leaks when Enuming units
        set BOOL_TRUE = Filter(function BOOLEXPR_TRUE)

        //Sets constants for spell levels
        set i = 1
        loop
            exitwhen i > NUMBER_LEVELS
            if EQUILSPEED_CONST[i] == 0. then
                set EQUILSPEED_CONST[i] = EQUIL_MOVESPEED(i) * TIMER_PERIOD
            endif
            if MAXSPEED_CONST[i] == 0. then
                set MAXSPEED_CONST[i] = 4 * bj_PI * MAX_DISTANCE(i) * TIMER_PERIOD / OSCILLATION_PERIOD(i)
            endif
            if ACCELERATION_CONST[i] == 0. then
                set ACCELERATION_CONST[i] = (2 * bj_PI * (1 / OSCILLATION_PERIOD(i))) * TIMER_PERIOD
                set ACCELERATION_CONST[i] = ACCELERATION_CONST[i] * ACCELERATION_CONST[i]
            endif
            set i = i + 1
        endloop
        set DAMPING_FACTOR = Pow((DAMPING_PER_SEC/100), TIMER_PERIOD)
    endfunction

endscope

Read Me:

//==================================================================================//
//  READ ME: HARMONIC BESERK                                    BY: ALEXANDER244    //
//==================================================================================//

    //==========================================================================//
    //  IMPLEMENTING:                                                           //
    //==========================================================================//

    Requirements:
     * JassNewGenPack v4c or newer    ([url]www.wc3campaigns.net[/url])
     * Pathability Library            (Copy from this map)
     * HarmonicBeserk Scope           (Copy from this map)
     * Harmonic Beserk Ability        (Copy from this map)
     * Equilibrium Unit               (Copy from this map)

    Implementing:
     * SPELL_ID in the config section set to Harmonic Beserk Ability custom value
     * DUMMY_ID in the config section set to Equilibrium Unit custom value
     * Save the map
     * Update other config values

    //==========================================================================//
    //  CREDITS:                                                                //
    //==========================================================================//

    Vexorian: GetPathability and JassHelper
    PipeDream: Grimoire
    PitzerMike: PJass

    Szythe and Toadcop: Suggestions

    //==========================================================================//
    //  UPDATES:                                                                //
    //==========================================================================//

    //**************************************************************************//
    //  VERSION: 1.1                                                            //
    //**************************************************************************//

     * Equilibrium unit now selected on spell cast, and if the equilibrium unit is selected
         by the player at the end of the spell, the hero is reselected. (Thanks Szythe)
     * Added an expiration bar to the equilibrium unit.
     * The equilibrium unit experiences changes in alpha colouring depending on the distance
         between it and the caster.
     * Equilibrium unit now has triggered movement; higher movement speeds can be set,
         blizzard pathing is no longer an annoyance and the lightning attach height is correct
         on all terrain levels.
     * Stopped the caster becoming stuck on collision with unpathable terrain (and several
         other issues caused by this fix).
     * Restricted spell area to make the spell more controllable (Thanks Toadcop).
     * Made the spell easier to configure.
     * Reduced the ability to abuse centripetal motion for high speeds (this can be configured)
     * The spell now only uses one group (I realised before I was using up to 800 per sec...)

    //==========================================================================//

Attached Images

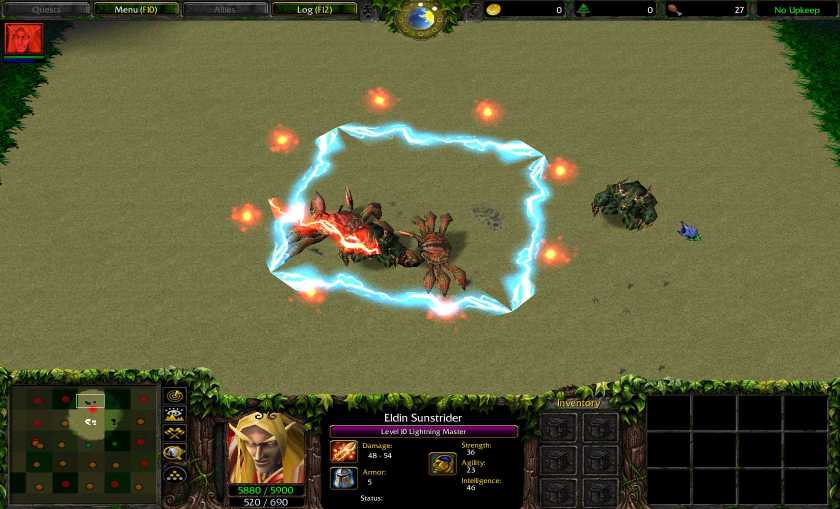

Harmonic Beserk.jpg (56.5 KB)

Attached Files

HarmonicBeserk.w3x (65.6 KB)

03-07-2008, 11:54 PM

TheSecretArts

THIS IS MY FINAL UPDATE!!!!!!!!!!

This is Empowered Light.
The bolt starts out relatively weak with (10*abilitylvl)+50 healing/damage and 75 collision, but for each unit it hits, it increases collision by .75, healing/damage by 10(+25 for each 3 levels the ability reaches), model size by .1
It damages enemies any undead and heals allies.
Trust me, it can get big (IE; 1000+ healing a hit when it hits rediculous amounts of units). And yes, it IS supposed to cause healing/damage (if undead) to the caster when they cast it!

Require's vJASS!
It has sounds, fully customizable (I did turn it into a healing spell), the only thing missing is MUI. It is 449 lines of code, all written by me, with a little syntactical help by Vex and some others.
(Screenshot does some justice... Ignore the caption though, I forgot what the spell was named

)

Code:

JASS:

library UserDecFunctions
    globals
        private unit TEMPUnit
        private effect TEMPEffect
    endglobals
    function Expiration takes nothing returns nothing
        call KillUnit(EmpoweredLight.ProjDummy)
        call Projectile.destroy(EmpoweredLight)
        call DestroyTimer(Movement)
        call DestroyTimer(EmpoweredTimer)
        call StopSound(Sound,false,false)
    endfunction
    //Functions used in the structs (IE, Collision functions) made by you go here
    function TenSeconds takes nothing returns nothing
        local unit u = TEMPUnit
        local effect e = TEMPEffect
        local integer x = 0
        local timer t
        local real timeRemaining
        loop
            exitwhen x==OnHitImmunityDuration
            if (1 > 0) then
                set t = CreateTimer()
                call TimerStart(t, 1, false, null)
                loop
                    set timeRemaining = TimerGetRemaining(t)
                    exitwhen timeRemaining <= 0
                    if (timeRemaining > bj_POLLED_WAIT_SKIP_THRESHOLD) then
                        call TriggerSleepAction(0.1 * timeRemaining)
                    else
                        call TriggerSleepAction(bj_POLLED_WAIT_INTERVAL)
                    endif
                endloop
                call DestroyTimer(t)
                set timeRemaining=0
            endif
            if (GetUnitState(u, UNIT_STATE_LIFE) <= 0)then
                call UnitRemoveAbility(u,OnHitAbilityRawcode)
                call DestroyEffect(e)
                return
            endif
            set x = x+1
            endloop
        call UnitRemoveAbility(u,OnHitAbilityRawcode)
        call DestroyEffect(e)
    endfunction
    private function RunChecks takes unit U returns boolean
        local boolean check1
        local boolean check2
        local boolean check3
        set check1 = (GetUnitTypeId(U)!=DummyUnitRawcode)
        set check2 = (GetUnitState(U, UNIT_STATE_LIFE) > 0)
        set check3 = ((GetUnitAbilityLevel(U, BuffRawcode) > 0)==false)
        if (check1 == true and check2 == true and check3 == true) then
            if (U==EmpoweredLight.Caster) then
                if (HitsCaster==true) then
                    return true
                else
                    return false
                endif
            endif
            if (IsUnitType(U,UNIT_TYPE_FLYING)) then
                if (HitsAir==true) then
                    return true
                else
                    return false
                endif
            endif
            if (IsUnitAlly(U,GetOwningPlayer(EmpoweredLight.Caster))) then
                if (HitsAllies==true) then
                    if (IsUnitType(U,UNIT_TYPE_STRUCTURE)) then
                        if (HitsBuildings==true) then
                            return true
                        else
                            return false
                        endif
                    else
                        return true
                    endif
                else
                    return false
                endif
            endif
            if (IsUnitEnemy(U,GetOwningPlayer(EmpoweredLight.Caster))) then
                if (HitsEnemies==true) then
                    if (IsUnitType(U,UNIT_TYPE_STRUCTURE)) then
                        if (HitsBuildings==true) then
                            return true
                        else
                            return false
                        endif
                    else
                        return true
                    endif
                    else
                        return false
                endif
            endif

        else
            return false
        endif
        return false
    endfunction
    private function CollisionEx takes nothing returns nothing
            if (RunChecks(GetEnumUnit())==true) then
                if (IsUnitType(GetEnumUnit(),UNIT_TYPE_UNDEAD)==ReverseDamageOnUndead) or (IsUnitEnemy(GetEnumUnit(),GetOwningPlayer(EmpoweredLight.Caster))==ReverseDamageOnEnemy)  then
                    call SetUnitState((GetEnumUnit()), UNIT_STATE_LIFE, GetUnitState(GetEnumUnit(),UNIT_STATE_LIFE)+EmpoweredLight.Damage)
                    set EmpoweredLight.Size = EmpoweredLight.Size+SizeIncreasePerHit
                    call SetUnitScale(EmpoweredLight.ProjDummy,EmpoweredLight.Size,EmpoweredLight.Size,EmpoweredLight.Size)
                    set EmpoweredLight.Damage = EmpoweredLight.Damage+DamageIncreasePerHit+(R2I((EmpoweredLight.Level/SpellLevelsToUpgrade))*DamageUpgradePerXLevels)
                    set EmpoweredLight.ObjectCollisionSize = EmpoweredLight.ObjectCollisionSize+CollisionIncreasePerHit
                    call TimerStart( EmpoweredTimer, ( TimerGetRemaining(EmpoweredTimer) + TimeLifeIncreasePerHit ), false,function Expiration )
                    set TEMPEffect = AddSpecialEffectTarget(ModelPath,GetEnumUnit(),AttachmentPoint)
                    call UnitAddAbility(GetEnumUnit(),OnHitAbilityRawcode)
                    set TEMPUnit = GetEnumUnit()
                    call ExecuteFunc("TenSeconds")
                else
                    call SetUnitState((GetEnumUnit()), UNIT_STATE_LIFE, GetUnitState(GetEnumUnit(),UNIT_STATE_LIFE)-EmpoweredLight.Damage)
                    set EmpoweredLight.Size = EmpoweredLight.Size+SizeIncreasePerHit
                    call SetUnitScale(EmpoweredLight.ProjDummy,EmpoweredLight.Size,EmpoweredLight.Size,EmpoweredLight.Size)
                    set EmpoweredLight.Damage = EmpoweredLight.Damage+DamageIncreasePerHit+(R2I((EmpoweredLight.Level/SpellLevelsToUpgrade))*DamageUpgradePerXLevels)
                    set EmpoweredLight.ObjectCollisionSize = EmpoweredLight.ObjectCollisionSize+CollisionIncreasePerHit
                    call TimerStart( EmpoweredTimer, ( TimerGetRemaining(EmpoweredTimer) + TimeLifeIncreasePerHit ), false,function Expiration )
                    set TEMPEffect = AddSpecialEffectTarget(ModelPath,GetEnumUnit(),AttachmentPoint)
                    call UnitAddAbility(GetEnumUnit(),OnHitAbilityRawcode)
                    set TEMPUnit = GetEnumUnit()
                    call ExecuteFunc("TenSeconds")
                endif
            endif
    endfunction
    function OnUnitCollision takes nothing returns nothing
        local group g = CreateGroup()
        call GroupEnumUnitsInRangeOfLoc(g,GetUnitLoc(EmpoweredLight.ProjDummy) , EmpoweredLight.ObjectCollisionSize, null)
//       set g = GetUnitsInRangeOfLocAll(EmpoweredLight.ObjectCollisionSize,GetUnitLoc(EmpoweredLight.ProjDummy))
        call ForGroup(g, function CollisionEx)
        call DestroyGroup(g)
    endfunction
endlibrary
library VectorLib initializer SYSTEMINIT
////////////////////////////////////
//This is TheSecretArts'          //
//WIP Basic Vector System         //
//Only for use in Spell Making    //
//Contest #10.  Only TheSecretArts//
//can use this system.            //
////////////////////////////////////
    globals
        Vector GRAVITYVECTOR
        Vector MathVector
    endglobals
    struct Vector
        real x //This detirmines where the vector 'is'
        real y //This detirmines where the vector 'is'
        real z //This detirmines where the vector 'is'
        real Fx //These values are counterintuitive from what you might think
        real Fy //These are based on planes, rather than force, a negative is backwards, thats why there is no directional value
        real Fz //This way, it requires less math and is easier and less taxing if many events are happening at once
        //the force values should be speed/sec.
        method SetX takes real x returns nothing
            set this.x = x
        endmethod
        method SetY takes real y returns nothing
            set this.y = y
        endmethod
        method SetZ takes real z returns nothing
            set this.z = z
        endmethod
        method SetFx takes real m returns nothing
            set this.Fx = m
        endmethod
        method SetFy takes real m returns nothing
            set this.Fy = m
        endmethod
        method SetFz takes real m returns nothing
            set this.Fz = m
        endmethod
        static method create takes real X, real Y, real Z, real FX, real FY, real FZ returns Vector
            local Vector Vec = Vector.allocate()
            set Vec.x = X
            set Vec.y = Y
            set Vec.z = Z
            set Vec.Fz = FZ
            set Vec.Fy = FY
            set Vec.Fx = FX
            return Vec
        endmethod
    endstruct
    function VectorNull takes Vector A returns Vector
        set MathVector.x = A.x
        set MathVector.y = A.y
        set MathVector.z = A.z
        set MathVector.Fx = 0
        set MathVector.Fy = 0
        set MathVector.Fz = 0
        return MathVector
    endfunction
    function VectorAdd takes Vector A, Vector B returns Vector
        set MathVector.Fx = A.Fx + B.Fx
        set MathVector.Fy = A.Fy + B.Fy
        set MathVector.Fz = A.Fz + B.Fz
        return MathVector
    endfunction
    function VectorSubtract takes Vector A, Vector B returns Vector
        set MathVector.Fx = A.Fx - B.Fx
        set MathVector.Fy = A.Fy - B.Fy
        set MathVector.Fz = A.Fz - B.Fz
        return MathVector
    endfunction
    function VectorMultiply takes Vector A, Vector B returns Vector
        set MathVector.Fx = A.Fx * B.Fx
        set MathVector.Fy = A.Fy * B.Fy
        set MathVector.Fz = A.Fz * B.Fz
        return MathVector
    endfunction
    function VectorDivide takes Vector A, Vector B returns Vector
        set MathVector.Fx = A.Fx / B.Fx
        set MathVector.Fy = A.Fy / B.Fy
        set MathVector.Fz = A.Fz / B.Fz
        return MathVector
    endfunction
    private function SYSTEMINIT takes nothing returns nothing //MUST BE CALLED ON INITIALIZATION, I CAN'T STRESS THIS ENOUGH.
        set MathVector = Vector.create(0,0,0,0,0,0)
        set GRAVITYVECTOR = Vector.create(0,0,0,0,0,-9.8)
        set GRAVITYVECTOR.Fz = 0 //(I've modified it so that my projectiles won't fall.)
    endfunction
endlibrary
library ProjSyst needs VectorLib, UserDecFunctions
///////////////////////////////////////
//This is TheSecretArts' WIP         //
//projectile system.                 //
//This version is for use with       //
//Spell Making Contest #10 ONLY      //
//Only TheSecretArts can use this WIP//
///////////////////////////////////////
    globals
        Projectile EmpoweredLight
    endglobals
    struct Projectile
        real TimeLife
        private real BaseTerrainLevel // This is used when FollowsTerrainHeight is FALSE, this stands as the base terrain level
//    real Cd //This is the drag coefficient, this effects how air drag effects the projectile
//    real RA //This is the reference area, this is used in calculating drag
        real ObjectCollisionSize //Say the unit has a proximity effect, this would allow control over that proximity size
//    real Mass // To make a projectile that doesnt fall, set mass to zero
        location TargetPoint
        unit Target //More or less for homing projectiles
        unit ProjDummy
        integer Level
        sound Noise //The sounds associated with the projectile
        real Damage
        real Size
        real TimeStep
        unit Caster
        string UnitCollision //Function name to run on unit collision, will check if you hit allies and if this unit can hit allies.
//////////////////////////////The Following have been deprecated in this instance of this system
//////////////////////////////Because it is all handled by outsides functions.....
//    boolean HitsUnits
//    boolean EffectedByWind //At the moment this does not effect the unit, but when wind is implemented, spells that create wind or natural wind will not effect the projectile, for most objects this should probably be used.
//    boolean HitsCliffs //this could be toggled false so that it floats through cliffs
//    boolean ExplodesOnGround
//    boolean FollowsTerrainHeight //This is a big one, this determines wether the unit's z is based off terrain height, or a base level (the base level is intially based of terrain height, but then becomes independed of terrain height)
//    boolean HitsCaster //If the spell rebounds back by some means, can it hit the caster
//    boolean HitsAllies
//    string CasterCollision //Function name to run on caster collision
//    string AllyCollision //Function name to run on allied collision
//    string GroundCollision //Function name to run on Ground collision
//    string CliffCollision //Function name to run on cliff collision
//////////////////////////////
//////////////////////////////
        Vector Ve=0
        method Initialization takes real x, real y, real z, real Fx, real Fy, real Fz returns nothing
            set this.Ve = Vector.create(x,y,z,Fx,Fy,Fz)
            set this.Ve.x = x
            set this.Ve.y = y
            set this.Ve.z = z
            set this.Ve.Fx = Fx
            set this.Ve.Fy = Fy
            set this.Ve.Fz = Fz
        endmethod
        method DetectUnitCollision takes nothing returns nothing
            local boolean TFBool = this.CheckCollision()
            if (TFBool==TRUE) then
                call ExecuteFunc(this.UnitCollision)
            endif
        endmethod
        method SetNewXYZ takes nothing returns nothing //Doesnt move unit, just sets the values to prepare movement.  Has a use for debugging
            set this.Ve.x = this.Ve.x + (this.Ve.Fx * this.TimeStep)
            set this.Ve.y = this.Ve.y + (this.Ve.Fy * this.TimeStep)
//        if (this.FollowsTerrainHeight == TRUE) then
            call VectorAdd(this.Ve,GRAVITYVECTOR)
//          set this.Ve.z = this.Ve.Fz + this.Ve.z
//        else
            // ((z-grav*X)*TS)
//            call VectorAdd(v,GRAVITYVECTOR)
//            set this.Ve.Fz = (TERRAINHEIGHT-this.BaseTerrainLevel)
            set this.Ve.z = this.Ve.Fz + this.Ve.z

//       endif
        endmethod
        method MoveToXYZ takes nothing returns nothing
            call SetUnitPosition(this.ProjDummy,this.Ve.x,this.Ve.y)
            call UnitAddAbility(this.ProjDummy,'Amrf')
            call SetUnitFlyHeight(this.ProjDummy,this.Ve.z,0)
            call UnitRemoveAbility(this.ProjDummy,'Amrf')
        endmethod
        method SmartMove takes nothing returns nothing // this pretty much combines MovetoXYZ and SetNewXYZ
            set this.Ve.x = this.Ve.x + (this.Ve.Fx * this.TimeStep)
            set this.Ve.y = this.Ve.y + (this.Ve.Fy * this.TimeStep)
//        if (this.FollowsTerrainHeight == TRUE) then
            call VectorAdd(this.Ve,GRAVITYVECTOR)
//        set this.Ve.z = this.Ve.Fz + this.Ve.z
//        else
            // ((z-grav*X)*TS)
//            call VectorAdd(this.Ve,GRAVITYVECTOR)
//            set this.Ve.Fz = (TERRAINHEIGHT-this.BaseTerrainLevel)
            set this.Ve.z = this.Ve.Fz + this.Ve.z
//        endif
            call SetUnitPosition( this.ProjDummy , this.Ve.x , this.Ve.y )
            call UnitAddAbility( this.ProjDummy , 'Amrf' )
            call SetUnitFlyHeight( this.ProjDummy , this.Ve.z , 0 )
            call UnitRemoveAbility( this.ProjDummy , 'Amrf' )
            call this.DetectUnitCollision()
        endmethod
        private method CheckCollision takes nothing returns boolean
            local group g = CreateGroup()
            call GroupEnumUnitsInRangeOfLoc(g,GetUnitLoc(this.ProjDummy) , this.ObjectCollisionSize, null)
            if (CountUnitsInGroup(g)>0) then
                call DestroyGroup(g)
                return TRUE
            else
                call DestroyGroup(g)
                return FALSE
            endif
        endmethod
    endstruct
endlibrary
library EmpoweredLight initializer SpellInitializer needs ProjSyst
///////////////////////////////////////////
//This is spell making contest #10       //
//entry: Empowered Light                 //
//Also check the Library UserDecFunctions//
//for it also contains part of this spell//
//that is used by my system.             //
///////////////////////////////////////////
    globals
        //Here are some user-declarable variables used by CascadingCataclysm!
        private trigger CheckCast
        timer Movement
        timer EmpoweredTimer
        private constant real TimeLifeBase = 1.75
        private constant real TimeLifeIncrementPerLevel = .25
        constant real TimeLifeIncreasePerHit = .25
        private constant real DamageBase = -50
        private constant real DamageIncrementPerLevel = -10
        constant real DamageIncreasePerHit = -10
        constant real Size = 1
        constant real DamageUpgradePerXLevels = -25
        constant real SizeIncreasePerHit = .1
        private constant real CollisionSize = 75
        constant real CollisionIncreasePerHit = 7.5
        constant integer SpellLevelsToUpgrade = 3
        constant integer DummyUnitRawcode = 'u000'
        constant integer AbilityRawcode = 'A001'
        constant integer BuffRawcode = 'B000'
        constant integer OnHitAbilityRawcode = 'A002'
        constant integer OnHitImmunityDuration = 10
        private constant string UnitCollisionFunction = "OnUnitCollision"
        //The Model Path below is automatically preloaded by VectorInitialization
        constant string ModelPath = "Abilities\\Spells\\NightElf\\FaerieFire\\FaerieFireTarget.mdl"
        constant string AttachmentPoint = "overhead"
        constant string SoundPath = "Abilities\\Spells\\Human\\Resurrect\\ResurrectTarget.wav"
        sound Sound = CreateSound(SoundPath, true, true, true, 1, 0, "SpellsEAX")
        constant boolean HitsAir = true
        constant boolean HitsAllies = true
        constant boolean HitsCaster = true
        constant boolean HitsEnemies = true //I have no idea why you would want this to be false unless you were modding this into a healing spell... LIKE THIS ONE!!!!
        constant boolean HitsBuildings = false
        constant boolean ReverseDamageOnEnemy = true
        constant boolean ReverseDamageOnUndead = true //If the spell is holy healing, will hurt undead instead.  Same thing with Death Coil(ish) spells.
    endglobals
    private function MoveConditions takes nothing returns nothing
        if (R2I(TimerGetRemaining(EmpoweredTimer)) > 0 ) then
            call EmpoweredLight.SmartMove()
        endif
    endfunction
    private function CastCondition takes nothing returns boolean
        if ( GetSpellAbilityId() == AbilityRawcode ) then
            return true
        endif
        return false
    endfunction
    private function CalculateForceX takes unit u returns real
        local location p = Location(GetLocationX(GetUnitLoc(u)) + 1000 * Cos(GetUnitFacing(u) * bj_DEGTORAD),GetLocationY(GetUnitLoc(u)) + 1000 * Sin(GetUnitFacing(u) * bj_DEGTORAD))
        local real XMX //X minus X to find delta X
        local real XC //X over (distance/speed) 1000/200=5
        set XMX = GetLocationX(p)-GetLocationX(GetUnitLoc(u))
        set XC = (XMX/(TimeLifeBase+TimeLifeIncrementPerLevel))
        return XC
    endfunction
    private function CalculateForceY takes unit u returns real
        local location p = Location(GetLocationX(GetUnitLoc(u)) + 1000 * Cos(GetUnitFacing(u) * bj_DEGTORAD),GetLocationY(GetUnitLoc(u)) + 1000 * Sin(GetUnitFacing(u) * bj_DEGTORAD))
        local real YMY //Y minus Y
        local real YC //Y over (distance/speed)
        set YMY = GetLocationY(p)-GetLocationY(GetUnitLoc(u))
        set YC = (YMY/(TimeLifeBase+TimeLifeIncrementPerLevel))
        return YC
    endfunction
    private function Casted takes nothing returns nothing
        local unit U
        set U = CreateUnitAtLoc(Player(0),DummyUnitRawcode,GetUnitLoc(GetTriggerUnit()),0)
        set EmpoweredLight = Projectile.create()
        call EmpoweredLight.Initialization(GetUnitX(U),GetUnitY(U),100,CalculateForceX(GetTriggerUnit()),CalculateForceY(GetTriggerUnit()),0)
        set EmpoweredLight.Caster = GetTriggerUnit()
        set EmpoweredLight.Level = GetUnitAbilityLevel(GetTriggerUnit(),AbilityRawcode)
        set EmpoweredLight.ObjectCollisionSize =CollisionSize
        set EmpoweredLight.Size = Size
        set EmpoweredLight.Damage = ((DamageIncrementPerLevel*(EmpoweredLight.Level)))+DamageBase
        set EmpoweredLight.ProjDummy = U
        call AttachSoundToUnit(Sound,EmpoweredLight.ProjDummy)
        call SetSoundVolume(Sound,1254)//127
        call StartSound(Sound)
        set EmpoweredLight.TimeStep = .04 //Don't Change!  Unless you want choppy movement or a higher CPU tax
        set EmpoweredLight.TimeLife = ((TimeLifeIncrementPerLevel*(EmpoweredLight.Level)))+TimeLifeBase
        set EmpoweredLight.UnitCollision = "OnUnitCollision"
        call SetUnitFacing(EmpoweredLight.ProjDummy,GetUnitFacing(GetTriggerUnit()))
        set EmpoweredLight.TargetPoint = Location(GetLocationX(GetUnitLoc(GetTriggerUnit())) + 1000 * Cos(GetUnitFacing(GetTriggerUnit()) * bj_DEGTORAD),GetLocationY(GetUnitLoc(GetTriggerUnit())) + 1000 * Sin(GetUnitFacing(GetTriggerUnit()) * bj_DEGTORAD))
        set Movement = CreateTimer()
        set EmpoweredTimer = CreateTimer()
        call TimerStart(EmpoweredTimer, EmpoweredLight.TimeLife, false, function Expiration )
        call TimerStart(Movement, EmpoweredLight.TimeStep, true, function MoveConditions)
        set U = null
    endfunction
    private function SpellInitializer takes nothing returns nothing
        local integer index
        call Preload(ModelPath)
        call PreloadStart()
        set CheckCast = CreateTrigger(  )
        set index = 0
        loop
            call TriggerRegisterPlayerUnitEvent(CheckCast, Player(index), EVENT_PLAYER_UNIT_SPELL_FINISH, null)
            set index = index + 1
            exitwhen index == bj_MAX_PLAYER_SLOTS
        endloop
        call TriggerAddCondition( CheckCast, Condition( function CastCondition ) )
        call TriggerAddAction(CheckCast, function Casted )
        set index = 0
    endfunction
endlibrary

Attached Images


Attached Files

EmpoweredHealing.w3x (28.6 KB)

03-08-2008, 10:27 AM

#10

zen87

Sky Bomber

Requirement:

Vexorian's Caster System
My Effect System (to put this into your map, change the private prefix in the EffectTimer to public)

Description:
Sends an uncontrollable Sky bomber to bombard all units in a line. If the Sky bomber is destroyed before it throws all the bomb, all the bomb it stored will be dropped. Each bomb deals 250 siege damage.
You may detonate the bomber to drop all the bombs.

Level 1 - Moves up to 800 range, drops 4 bombs.
Level 2 - Moves up to 1150 range, drops 6 bombs.
Level 3 - Moves up to 1500 range, drops 8 bombs.

Spell Code:

JASS:

//*****************************************************************************
//*                                                                           *
//* Spell Making Session #10 : Sky Bomber                                     *
//* ¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯                                     *
//* Send a sky bomber to attack the enemy, destory it before its bombs falls  *
//* on you! (This map don't really use the effect system function, but it is  *
//* using the EffectTimer in the effect system to create the bomb dropping    *
//* and the bomber movement)                                                  *
//*                                                                           *
//*****************************************************************************

scope SkyBomber
globals

  //Sky Bomber configuration constants :
  //  SB_id          : the spell id code
  //  SB_bomber      : the sky bomber unit id
  //  SB_detonate    : the spell id for detonate
  //  SB_bomb_mode   : model path of the missle
  //  SB_bomb_launch : model path of the effect when the bomber dropping missle

    private constant integer SB_id          =  'A007'
    private constant integer SB_bomber      =  'n000'
    private constant integer SB_detonate    =  'A008'
    private constant string  SB_bomb_model  =  "Abilities\\Weapons\\DemolisherFireMissile\\DemolisherFireMissile.mdl"
    private constant string  SB_bomb_launch =  "Abilities\\Spells\\Items\\AIfb\\AIfbSpecialArt.mdl"

endglobals

  //Change the values here in any way you wish :
  //  SB_dmg    : damage of each bomb dropped
  //  SB_bomb   : total number of bomb dropped
  //  SB_dist   : total travel distance until the bomber timeout
  //  SB_spd    : movement speed of the bomber

private constant function SB_dmg takes real lvl returns real
    return ((lvl*0) + 250)       //250,250,250
endfunction

private constant function SB_bomb takes integer lvl returns integer
    return ((lvl*2) + 2)         //4,6,8
endfunction

private constant function SB_dist takes real lvl returns real
    return ((lvl*350) + 450)     //800,1150,1500
endfunction

private constant function SB_spd takes real lvl returns real
    return ((lvl*0) + 125)      //125,125,125
endfunction



//===========================================================================
// Sky Bomber spell script:
//===========================================================================
private struct ReleaseBomb extends EffectSystem_EffectTimer
    unit u
    unit d
    real h
    integer lvl
    effect e

    method onExpire takes nothing returns nothing
        if this.h <= 5 then
            call DestroyEffect(this.e)
            call DamageUnitsInAOEEx(this.u,SB_dmg(this.lvl),GetUnitX(this.d),GetUnitY(this.d),125,false,DamageTypes(ATTACK_TYPE_SIEGE,DAMAGE_TYPE_DEMOLITION)+DamageTrees()+DamageIgnore(UNIT_TYPE_FLYING))
            call CasterRecycleTimed(this.d,0,3)
            call this.destroy()
        else
            set this.h = this.h-4.25+GetRandomReal(0,1)
            call CS_MoveUnit(this.d,GetUnitX(this.d)+GetRandomReal(-2,2),GetUnitY(this.d)+GetRandomReal(-2,2))
            call SetUnitFlyHeight(this.d,this.h,0.)
        endif
    endmethod

    static method create takes unit damager, unit bomber, integer lvl returns ReleaseBomb
     local ReleaseBomb this = ReleaseBomb.allocate()
        call DestroyEffect(AddSpecialEffectTarget(SB_bomb_launch,bomber,"origin"))
        set this.d = GetACaster()
        call CS_MoveUnit(this.d,GetUnitX(bomber),GetUnitY(bomber))
        set this.u = damager
        set this.e = AddSpecialEffectTarget(SB_bomb_model,this.d,"origin")
        set this.h = ES_GetUnitZ(bomber)+100
        set this.lvl = lvl
     return this
    endmethod

endstruct

private struct BomberMovement extends EffectSystem_EffectTimer
    unit c
    unit u
    real r
    real i
    real d
    real a
    real spd
    integer lvl
    integer bomb

    method onDestroy takes nothing returns nothing
        call UnitRemoveAbility(this.c,SB_detonate)
        call UnitAddAbility(this.c,SB_id)
        call SetUnitAbilityLevel(this.c,SB_id,this.lvl)
        call SetPlayerAbilityAvailable(GetOwningPlayer(this.c),SB_id,true)
    endmethod

    method onExpire takes nothing returns nothing
        if this.u==null then
            call this.destroy()
        elseif GetWidgetLife(this.u)<=0.405 then
            loop
                set this.bomb=this.bomb-1
                exitwhen this.bomb<=0
                call ReleaseBomb.create(this.c,this.u,this.lvl)
            endloop
            call PauseUnit(this.u,false)
            call this.destroy()
        elseif this.bomb<=0 then
            call PauseUnit(this.u,false)
            call SetUnitExploded(this.u,true)
            call ShowUnit(this.u,false)
            call KillUnit(this.u)
            call this.destroy()
        else
            if this.i<=0 then
                call ReleaseBomb.create(this.c,this.u,this.lvl)
                set this.i=this.i+this.r
                set this.bomb=this.bomb-1
            endif
            set this.i=this.i-this.spd
            call CS_MoveUnit(this.u,GetUnitX(this.u)+this.spd*Cos(this.a),GetUnitY(this.u)+this.spd*Sin(this.a))
        endif
    endmethod

    static method create takes unit caster, unit bomber, integer lvl, integer bomb, real angle, real spd returns BomberMovement
     local BomberMovement this = BomberMovement.allocate()
        call AttachObject(caster,SCOPE_PRIVATE+"bomber",bomber)
        set this.r=SB_dist(lvl)/(bomb+1)
        set this.i=this.r
        set this.spd=spd*0.035
        set this.a=angle
        set this.c=caster
        set this.u=bomber
        set this.bomb=bomb
        set this.lvl=GetUnitAbilityLevel(caster,SB_id)
        call UnitRemoveAbility(caster,SB_id)
        call UnitAddAbility(caster,SB_detonate)
        call UnitRemoveAbility(bomber,'Amov')
        call SetPlayerAbilityAvailable(GetOwningPlayer(caster),SB_id,false)
        call PauseUnit(bomber,true)
     return this
    endmethod

endstruct

private function SkyBomber takes nothing returns nothing
 local unit u = GetTriggerUnit()
 local location l = GetSpellTargetLoc()
 local real x = GetUnitX(u)
 local real y = GetUnitY(u)
 local real a = Atan2(GetLocationY(l)-y,GetLocationX(l)-x)
 local integer lvl = GetUnitAbilityLevel(u,SB_id)
    call BomberMovement.create(u,CreateUnit(GetOwningPlayer(u),SB_bomber,x,y,57.2958*a),lvl,SB_bomb(lvl),a,SB_spd(lvl))
    call RemoveLocation(l)
 set l=null
 set u=null
endfunction

private function SkyBomberDetonate takes nothing returns nothing
 local unit u = GetAttachedUnit(GetTriggerUnit(),SCOPE_PRIVATE+"bomber")
    if u!=null then
        call SetUnitExploded(u,true)
        call KillUnit(u)
    endif
 set u=null
endfunction

function InitTrig_Sky_Bomber takes nothing returns nothing
    call OnAbilityEffect(SB_id,SCOPE_PRIVATE+"SkyBomber")
    call OnAbilityEffect(SB_detonate,SCOPE_PRIVATE+"SkyBomberDetonate")
    call PreloadAbility(SB_id)
    call PreloadAbility(SB_detonate)
endfunction
endscope

Attached Images


Attached Files

Spell Making Session - Sky Bomber.w3x (188.5 KB)

03-08-2008, 09:50 PM

#11

Rising_Dusk

Shrapnade
v1.04

Description

Background:
The spell is made specifically for the Spell Session #10 on wc3c. The spell also complies with the JESP manifest, is fully multi-instanceable, and requires Grimoire and vJass.

Download

Attached Images


Attached Files

SpellSession10_Shrapnade_v1.04.w3x (72.9 KB)

03-09-2008, 10:30 PM

#12

bomber7

Heres my submission, I'll be adding a screenshot shortly.

Btw, I'm surprised at the intensity of the competition here.

I might update my spell at a later time to make its end more dramatic.

Note, the screenshot sucks compared to how it looks in-game.

Requires vJASS

UPDATED!

Attached Images


Attached Files

LightningDeath.w3x (56.2 KB)

03-10-2008, 09:24 PM

#13

Here-b-Trollz

Fissure
By Here-b-Trollz

* Made specifically for this contest
* Requires vJass
* Requires a few external functions which are included in the library 'Cache'

Tooltip:

Sends out two parallel rock walls in the target direction, dealing damage to any units in their way, and then, after a short duration, the walls close in, pushing units toward the center and dealing damage to any units stuck in the middle when they meet.

Attached Images


Attached Files

Fissure.w3x (36.0 KB)

03-15-2008, 09:02 AM

#14

midiway

Multi-Shoot

-Require vJass
-Multiinstanceable

The Ranger shoots an arrow that splits into many, dealing each one 50 damage to the first target it hits. The far the point you choose to shoot it at is to the caster, the more the arrows spread out.

A given number of arrows are frozen and will slow the movement speed and attack speed by 50%. Additionally, you can chose a point where frozen arrows will be concentrated in a single one whenever you shoot in the angle of this point.

Level 1 - Split into 5 arrows, 2 frozen.
Level 2 - Split into 7 arrows, 3 frozen.
Level 3 - Split into 9 arrows, 4 frozen.

Attached Images


Attached Files

MultiShoot.w3x (78.1 KB)

03-15-2008, 12:51 PM

#15

HINDYhat

~ update 2 ~

- Requires JassHelper (JassNewGenPack) for vJass syntax.
- Follows the JESP standard.

Ptyalize

This hero spits a rotating sludge ball towards the target point. Any enemy units who collide with it will become attached to it. Consequently, any other enemy unit who collides with an attached unit will become attached to that unit. After a certain time, the sludge ball explodes, all attached units are damaged and flinged away in a centrifugal manner.

Level 1 - Lasts 3 seconds. Deals 40 damage + angular velocity * radius from the sludge ball.
Level 2 - Lasts 4 seconds. Deals 55 damage + angular velocity * radius from the sludge ball.
Level 3 - Lasts 5 seconds. Deals 70 damage + angular velocity * radius from the sludge ball.

Attached Files

Ptyalize.w3x (68.9 KB)
