Knockback System

03-30-2008, 11:06 PM

Knockback System
v1.07

Background:
I made this system awhile ago and have had it lying around for awhile now. Someone posted something about needing one in the trigger forum, and then someone linked them to the one in the database. Well, I was going through that old system and noticed that it is so terrible! It needed cache, ran each unit on an individual timer, and so forth. So I decided in my infinite generosity (Haha, yeah right) to clean this thing up and submit it.

Requirements:

LastOrder, by Rising_Dusk
UnitIndexingUtils, by Rising_Dusk
TerrainPathability, by Rising_Dusk
GroupUtils, by Rising_Dusk

Warnings:

Be careful when using extremely large initial speed values, you could potentially jump your units over what otherwise would be an obstacle.
Be careful with terrain pathing, as you can potentially path between objects depending on the current speed of the knockback.

System Specs:

Requires vJass.
Everything for every knockback ever used in the map runs out of one timer.
Totally configurable special effect fields for different effects on land or shallow water.
Includes two special effects of my own making for users who can't find their own for land/water based knockbacks.
Includes two test spells of my own making in the map to showcase the system.
Allows you to destroy destructables or not with a boolean argument.
Requires no outside storage systems.
Easy to use and implement.
Clean and efficient.

Change Log

System Code:

System Code:

//******************************************************************************
//*                                                                            *
//*                             K N O C K B A C K                              *
//*                                Actual Code                                 *
//*                                   v1.07                                    *
//*                                                                            *
//*                              By: Rising_Dusk                               *
//*                                                                            *
//******************************************************************************

library Knockback initializer Init needs TerrainPathability, GroupUtils, UnitIndexingUtils, LastOrder
globals
    //*********************************************************
    //* These are the configuration constants for the system
    //*
    //* EFFECT_ATTACH_POINT:  Where on the unit the effect attaches
    //* EFFECT_PATH_WATER:    What special effect to attach over water
    //* EFFECT_PATH_GROUND:   What special effect to attach over ground
    //* DEST_RADIUS:          Radius around which destructs die
    //* DEST_RADIUS_SQUARED:  Radius squared around which destructs die
    //* ADJACENT_RADIUS:      Radius for knocking back adjacent units
    //* ADJACENT_FACTOR:      Factor for collision speed transfers
    //* TIMER_INTERVAL:       The interval for the timer that gets run
    //* ISSUE_LAST_ORDER:     A boolean to issue last orders or not
    //*
    private constant string         EFFECT_ATTACH_POINT = "origin"
    private constant string         EFFECT_PATH_WATER   = "MDX\\KnockbackWater.mdx"
    private constant string         EFFECT_PATH_GROUND  = "MDX\\KnockbackDust.mdx"
    private constant real           DEST_RADIUS         = 180.
    private constant real           DEST_RADIUS_SQUARED = DEST_RADIUS*DEST_RADIUS
    private constant real           ADJACENT_RADIUS     = 180.
    private constant real           ADJACENT_FACTOR     = 0.75
    private constant real           TIMER_INTERVAL      = 0.05
    private constant boolean        ISSUE_LAST_ORDER    = true

    //*********************************************************
    //* These are static constants used by the system and shouldn't be changed
    //*
    //* Timer:                The timer that runs all of the effects for the spell
    //* Counter:              The counter for how many KB instances exist
    //* HitIndex:             Indexes for a given unit's knockback
    //* Knockers:             The array of all struct instances that exist
    //* Entries:              Counters for specific unit instances in system
    //* ToClear:              How many instances to remove on next run
    //* DesBoolexpr:          The check used for finding destructables
    //* AdjBoolexpr:          The check for picking adjacent units to knockback
    //* DestRect:             The rect used to check for destructables
    //*
    private          timer          Timer               = CreateTimer()
    private          integer        Counter             = 0
    private          integer  array HitIndex
    private          integer  array Knockers
    private          integer  array Entries
    private          integer  array ToClear
    private          boolexpr       DesBoolexpr         = null
    private          boolexpr       AdjBoolexpr         = null
    private          rect           DestRect            = Rect(0,0,1,1)

    //* Temporary variables used by the system
    private          real           TempX               = 0.
    private          real           TempY               = 0.
    private          unit           TempUnit1           = null
    private          unit           TempUnit2           = null
endglobals

//* Boolean for whether or not to display effects on a unit
private function ShowEffects takes unit u returns boolean
    return not IsUnitType(u, UNIT_TYPE_FLYING)
endfunction

//* Functions for the destructable destruction
private function KillDests_Check takes nothing returns boolean
    local real x = GetDestructableX(GetFilterDestructable())
    local real y = GetDestructableY(GetFilterDestructable())
    return (TempX-x)*(TempX-x) + (TempY-y)*(TempY-y) <= DEST_RADIUS_SQUARED
endfunction

private function KillDests takes nothing returns nothing
    call KillDestructable(GetEnumDestructable())
endfunction

//* Functions for knocking back adjacent units
private function KnockAdj_Check takes nothing returns boolean
    return TempUnit2 != GetFilterUnit() and IsUnitEnemy(GetFilterUnit(), GetOwningPlayer(TempUnit1)) and IsUnitType(GetFilterUnit(), UNIT_TYPE_GROUND) and not IsUnitType(GetFilterUnit(), UNIT_TYPE_MECHANICAL) and GetWidgetLife(GetFilterUnit()) > 0.405 and GetUnitAbilityLevel(GetFilterUnit(), 'Avul') <= 0
endfunction

//******************************************************************************
//* Some additional functions that can be used
function KnockbackStop takes unit targ returns boolean
    local integer id = GetUnitId(targ)
    set ToClear[id] = Entries[id]
    return ToClear[id] > 0
endfunction
function IsKnockedBack takes unit targ returns boolean
    return Entries[GetUnitId(targ)] > 0
endfunction

//* Struct for the system, I recommend leaving it alone
private struct knocker
    unit Source      = null
    unit Target      = null
    group HitGroup   = null
    effect KBEffect  = null
    integer FXMode   = 0
    boolean KillDest = false
    boolean KnockAdj = false
    boolean ChainAdj = false
    boolean ShowEff  = false
    real Decrement   = 0.
    real Displace    = 0.
    real CosA        = 0.
    real SinA        = 0.

    public method checkterrain takes knocker n returns integer
        local integer i = 0
        local real x = GetUnitX(n.Target)
        local real y = GetUnitY(n.Target)
        if IsTerrainPathingType(x, y, TERRAIN_PATHING_LAND) then
            set i = 1
        elseif IsTerrainPathingType(x, y, TERRAIN_PATHING_SHALLOW) then
            set i = 2
        endif
        return i
    endmethod
    static method create takes unit source, unit targ, real angle, real disp, real dec, boolean killDestructables, boolean knockAdjacent, boolean chainAdjacent returns knocker
        local knocker n = knocker.allocate()
        set n.Target    = targ
        set n.Source    = source
        set n.FXMode    = n.checkterrain(n)
        set n.HitGroup  = NewGroup()
        set n.KillDest  = killDestructables
        set n.KnockAdj  = knockAdjacent
        set n.ChainAdj  = chainAdjacent
        set n.ShowEff   = ShowEffects(targ)
        set n.Decrement = dec
        set n.Displace  = disp
        set n.CosA      = Cos(angle)
        set n.SinA      = Sin(angle)

        if n.ShowEff then
            if n.FXMode == 1 then
                set n.KBEffect = AddSpecialEffectTarget(EFFECT_PATH_GROUND, n.Target, EFFECT_ATTACH_POINT)
            elseif n.FXMode == 2 then
                set n.KBEffect = AddSpecialEffectTarget(EFFECT_PATH_WATER, n.Target, EFFECT_ATTACH_POINT)
            debug else
                debug call BJDebugMsg(SCOPE_PREFIX+" Error (On Create): Unknown Terrain Type")
            endif
        endif

        return n
    endmethod
    private method onDestroy takes nothing returns nothing
        local integer id = GetUnitId(this.Target)
        set Entries[id] = Entries[id] - 1
        if GetWidgetLife(this.Target) > 0.405 and Entries[id] <= 0 and ISSUE_LAST_ORDER then
            //* Issue last order if activated
            call IssueLastOrder(this.Target)
        endif
        if this.ShowEff then
            //* Destroy effect if it exists
            call DestroyEffect(this.KBEffect)
        endif
        call ReleaseGroup(this.HitGroup)
    endmethod
endstruct

private function Update takes nothing returns nothing
    local unit u       = null
    local unit s       = null
    local rect r       = null
    local knocker n    = 0
    local knocker m    = 0
    local integer i    = Counter - 1
    local integer j    = 0
    local integer mode = 0
    local integer id   = 0
    local real xi      = 0.
    local real yi      = 0.
    local real xf      = 0.
    local real yf      = 0.

    loop
        exitwhen i < 0
        set n    = Knockers[i]
        set u    = n.Target
        set mode = n.FXMode
        set id   = GetUnitId(u)

        set xi   = GetUnitX(u)
        set yi   = GetUnitY(u)

        if n.Displace <= 0 or ToClear[id] > 0 then
            //* Clean up the knockback when it is over
            if ToClear[id] > 0 then
                set ToClear[id] = ToClear[id] - 1
            endif
            call n.destroy()
            set Counter = Counter - 1
            if Counter < 0 then
                call PauseTimer(Timer)
                set Counter = 0
            else
                set Knockers[i] = Knockers[Counter]
            endif
        else
            //* Propagate the knockback in space and time
            set xf = xi + n.Displace*n.CosA
            set yf = yi + n.Displace*n.SinA
            call SetUnitPosition(u, xf, yf)
            set n.FXMode = n.checkterrain(n)

            //* Modify the special effect if necessary
            if n.ShowEff then
                if n.FXMode == 1 and mode == 2 then
                    call DestroyEffect(n.KBEffect)
                    set n.KBEffect = AddSpecialEffectTarget(EFFECT_PATH_GROUND, n.Target, EFFECT_ATTACH_POINT)
                elseif n.FXMode == 2 and mode == 1 then
                    call DestroyEffect(n.KBEffect)
                    set n.KBEffect = AddSpecialEffectTarget(EFFECT_PATH_WATER, n.Target, EFFECT_ATTACH_POINT)
                debug elseif n.FXMode == 0 then
                    debug call BJDebugMsg(SCOPE_PREFIX+" Error (In Update): Unknown Terrain Type")
                endif
            endif

            //* Decrement displacement left to go
            set n.Displace = n.Displace - n.Decrement

            //* Destroy destructables if desired
            if n.KillDest then
                set TempX = GetUnitX(u)
                set TempY = GetUnitY(u)
                call MoveRectTo(DestRect, TempX, TempY)
                call EnumDestructablesInRect(DestRect, DesBoolexpr, function KillDests)
            endif

            //* Knockback nearby units if desired
            if n.KnockAdj then
                set xi         = GetUnitX(u)
                set yi         = GetUnitY(u)
                set TempUnit1  = n.Source
                set TempUnit2  = u
                call GroupEnumUnitsInRange(ENUM_GROUP, xi, yi, ADJACENT_RADIUS, AdjBoolexpr)
                loop
                    set s = FirstOfGroup(ENUM_GROUP)
                    exitwhen s == null
                    if not IsUnitInGroup(s, n.HitGroup) then
                        set xf = GetUnitX(s)
                        set yf = GetUnitY(s)
                        call GroupAddUnit(n.HitGroup, s)
                        set m = knocker.create(n.Source, s, Atan2(yf-yi, xf-xi), n.Displace*ADJACENT_FACTOR, n.Decrement, n.KillDest, n.ChainAdj, n.ChainAdj)
                        call GroupAddUnit(m.HitGroup, u)
                        set Knockers[Counter] = m
                        set Counter           = Counter + 1
                    endif
                    call GroupRemoveUnit(ENUM_GROUP, s)
                endloop
            endif
        endif
        set i = i - 1
    endloop

    set u = null
    set s = null
endfunction

//******************************************************************************
//* How to knockback a unit
function KnockbackTarget takes unit source, unit targ, real angle, real startspeed, real decrement, boolean killDestructables, boolean knockAdjacent, boolean chainAdjacent returns boolean
    local knocker n  = 0
    local integer id = GetUnitId(targ)
    local boolean b  = true

    //* Protect users from themselves
    if decrement <= 0. or startspeed <= 0. or targ == null then
        debug call BJDebugMsg(SCOPE_PREFIX+" Error (On Call): Invalid Starting Conditions")
        set b = false
    else
        //* Can't chain if you don't knockback adjacent units
        if not knockAdjacent and chainAdjacent then
            set chainAdjacent = false
        endif
        set n = knocker.create(source, targ, angle*bj_DEGTORAD, startspeed*TIMER_INTERVAL, decrement*TIMER_INTERVAL*TIMER_INTERVAL, killDestructables, knockAdjacent, chainAdjacent)
        if Counter == 0 then
            call TimerStart(Timer, TIMER_INTERVAL, true, function Update)
        endif

        set Entries[id]       = Entries[id] + 1
        set HitIndex[id]      = Counter + 1
        set Knockers[Counter] = n
        set Counter           = Counter + 1
    endif
    return b
endfunction

private function Init takes nothing returns nothing
    call SetRect(DestRect, -DEST_RADIUS, -DEST_RADIUS, DEST_RADIUS, DEST_RADIUS)
    set DesBoolexpr = Condition(function KillDests_Check)
    set AdjBoolexpr = Condition(function KnockAdj_Check)
endfunction
endlibrary

Special Thanks:
All credits to anything used in the spell are in the testmap, but I'll do it again here. Thanks to Vex for vJass, thanks to xombie for reporting a critical bug in the system, thanks to wc3c for being awesome, and thanks to whoever actually takes the time to read through this!

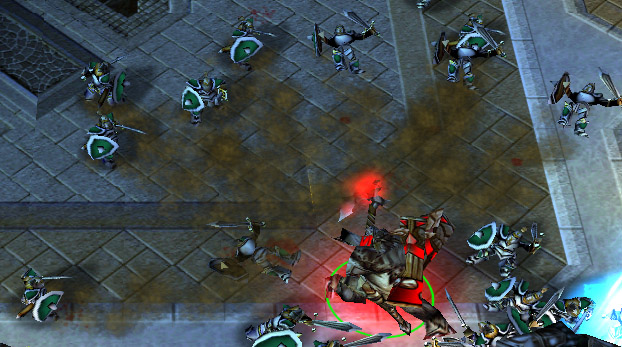

Attached Images


03-30-2008, 11:16 PM	#2
Strilanc	I think it's faster to store cartesian velocity (vx,vy) than polar (speed, angle). You don't need to use trig functions at all when using cartesian. JASS: //given vx, vy, subtract F from speed c = 1 - F/SquareRoot(vxvx + vyvy) vx = c vy = c

03-30-2008, 11:20 PM	#3
Rising_Dusk	It could be, but squareroot is a really slow function for computation and I managed to avoid it entirely doing it this way. I'll see what some other people think before doing anything. EDIT: I just noticed I forgot to do something, damned! Stupid additional functions!

03-30-2008, 11:46 PM

Toadcop

Quote:

set xf = xi + (n.Speed) * Cos(n.Angle*0.01745328)
set yf = yi + (n.Speed) * Sin(n.Angle*0.01745328)

TT + a bit too weak for a system... (ah yes i mean use vectors instead of Sin\Cos)

03-30-2008, 11:53 PM	#5
Fulla	Neat system, works smoothly, easy to implement & use.

03-31-2008, 12:02 AM

Pyrogasm

Most of your globals should be constant globals so they get inlined, like so (you should also move the TimerInterval constant to the top so that it can more easily be seen an changed):

JASS:

globals
    //*********************************************************
    //* These are the configuration constants for the system
    //*
    //* EffectLocation:     Where on the unit the effect attaches
    //* EffectPath_Water:   What special effect to attach over water
    //* EffectPath_Ground:  What special effect to attach over ground
    //* DestDestroy_Radius: Radius around which destructs die
    //*
    private constant string EffectLocation         = "origin"
    private constant string EffectPath_Water       = "MDX\\KnockbackWater.mdx"
    private constant string EffectPath_Ground      = "MDX\\KnockbackDust.mdx"
    private constant real DestDestroy_Radius       = 180.
    private constant real TimerInterval            = 0.05
endglobals

This line (and the other 5 lines in the script like it): set n.KBEffect = AddSpecialEffectTarget(EffectPath_Ground, n.Target, "origin") Should be changed to: set n.KBEffect = AddSpecialEffectTarget(EffectPath_Ground, n.Target, EffectLocation)
You forgot a "debug" here (both places you wrote this):

JASS:

        debug else
            debug call BJDebugMsg("System Error: Unknown Terrain Type")

In fact, where you check this in the Update function can be re-written in a more optimized form:

JASS:

if (n.FXMode == 1) and (mode == 2) then
    call DestroyEffect(n.KBEffect)
    set n.KBEffect = AddSpecialEffectTarget(EffectPath_Ground, n.Target, "origin")
elseif n.FXMode == 2) and (mode == 1) then
    call DestroyEffect(n.KBEffect)
    set n.KBEffect = AddSpecialEffectTarget(EffectPath_Water, n.Target, "origin")
    debug elseif n.FXMode == 0 then
        debug call BJDebugMsg("System Error: Unknown Terrain Type")
endif

You can remove the InitTrig function, as they are no longer forced by the editor.

Any time you have local knocker n = 0, you don't need to initialize "n" at all. Another thing: why are you typecasting to integers in the global array? It would make more sense as a knocker array: private knocker array Knockers
The order in which you used SetUnitPosition is wrong; since it takes into account pathing and sorts of things like that, it is conceivable that the unit does not end up where you think it will and it might be on a different type of terrain than the effect you are using. It should be in this order:

JASS:

set xf = xi + (n.Speed) * Cos(n.Angle*0.01745328)
set yf = yi + (n.Speed) * Sin(n.Angle*0.01745328)
call SetUnitPosition(n.Target, xf, yf)
set n.FXMode = n.checkterrain(n)

You don't need a local variable to reference n.Target; your usage of "u" is unnecessary.

Instead of using a local rect, r, and creating a new handle every iteration of the loop, you should use a global rect and use SetRect on it:

JASS:

globals
    //...
    private rect R
endglobals

    //...
    call SetRect(R, xf-DestDestroy_Radius, yf-DestDestroy_Radius, xf+DestDestroy_Radius, yf+DestDestroy_Radius)
    //...

    private function KnockbackSystemInit takes nothing returns nothing
        set Boolexpr = Condition(function KillDests_Check)
        set R = CreateRect()
    endfunction

Why even bother to deal with degrees at all? Radians are more standard anyway, and you should just tell people that the functions take radians in the ReadMe. This will save you from some calculations

Finally (on the subject of angles and cartesian velocity and all that crap), the way you've done it (as opposed to what Strilanc said) makes more sense because you're changing the velocity constantly. That being said, you should store the Cosine and Sine of the angle instead of just the angle in the struct:

JASS:

private struct knocker
    unit Target
    effect KBEffect
    integer FXMode
    boolean KillDest
    real Decrement
    real Speed
    real ASin
    real ACos

    method checkterrain takes knocker n returns integer
        local real x = GetUnitX(n.Target)
        local real y = GetUnitY(n.Target)
        if IsTerrainPathable(x, y, PATHING_TYPE_FLOATABILITY) then
            return 1
        elseif not IsTerrainPathable(x, y, PATHING_TYPE_WALKABILITY) then
            return 2
        endif
        return 0
    endmethod
    static method create takes unit targ, real angle, real startspeed, real decrement, boolean killDestructables returns knocker
        local knocker n = knocker.allocate()
        set n.Target = targ
        set n.FXMode = n.checkterrain(n)
        if n.FXMode == 1 then
            set n.KBEffect = AddSpecialEffectTarget(EffectPath_Ground, n.Target, EffectLocation)
        elseif n.FXMode == 2 then
            set n.KBEffect = AddSpecialEffectTarget(EffectPath_Water, n.Target, EffectLocation)
        debug else
            debug call BJDebugMsg("System Error: Unknown Terrain Type")
        endif
        set n.KillDest = killDestructables
        set n.Decrement = decrement
        set n.Speed = startspeed
        set n.ASin = Sin(angle)
        set n.ACos = Cos(angle)
        return n
    endmethod
    private method onDestroy takes nothing returns nothing
        call DestroyEffect(this.KBEffect)
    endmethod
endstruct

//...
    set xf = xi + (n.Speed) * n.ACos
    set yf = yi + (n.Speed) * n.ASin

Aside from that...

03-31-2008, 12:14 AM

Rising_Dusk

Now, that's impressive. Consider it all done. (Some things I disagree with, but the majority is good stuff)

Quote:

Originally Posted by Pyrogasm

Any time you have local knocker n = 0, you don't need to initialize "n" at all. Another thing: why are you typecasting to integers in the global array?

Because a struct is nothing other than an integer, it doesn't matter what you store them as. It's more intuitive for me to consider them as integers unless its required to be otherwise.

Quote:

Originally Posted by Pyrogasm

Good call, I must've mistyped that.

Quote:

Originally Posted by Pyrogasm

In fact, where you check this in the Update function can be re-written in a more optimized form:

Truth, I must've missed it while cleaning it up. (Although if you'd look at your 'optimized' version it wouldn't even compile) I know what you meant, though. :p

Quote:

Originally Posted by Pyrogasm

Why even bother to deal with degrees at all? Radians are more standard anyway, and you should just tell people that the functions take radians in the ReadMe. This will save you from some calculations

As a system, I find it simpler for the public to understand degrees. It's also easier and more intuitive to type 45 than it is to type 0.78539. Out of virtue of simplicity, I'll just convert the value to rads after the user inputs them in degrees.

Quote:

Originally Posted by Pyrogasm

The order in which you used SetUnitPosition is wrong; since it takes into account pathing and sorts of things like that, it is conceivable that the unit does not end up where you think it will and it might be on a different type of terrain than the effect you are using. It should be in this order:

Minor point, but a valid one. It shall be done.

Quote:

Originally Posted by Pyrogasm

That being said, you should store the Cosine and Sine of the angle instead of just the angle in the struct:

Good call, if I had thought of it at the time I probably would have done just that.

Quote:

Originally Posted by Pyrogasm

(you should also move the TimerInterval constant to the top so that it can more easily be seen an changed)

I disagree entirely. It's a constant that users shouldn't be playing with (Imagine if they typed in 1 or something). In order to protect users from themselves, I put it down below. If people know what it does, it's still very easily accessible so that it can be changed.

EDIT:
And you don't have to give me all of the examples. You should've saved yourself all of that time, I can figure stuff out strictly by words alone. :p

03-31-2008, 12:19 AM	#8
darkwulfv	Yay, a decent knockback system. I would use it if I weren't forcing myself to code my own (using a tutorial) so I can both have a systm AND learn vJass.

03-31-2008, 12:40 AM

Pyrogasm

Yeah, well I like examples :)

Quote:

Originally Posted by Rising_Dusk

Ah, but how often will someone call the function with a static angle argument? Wouldn't it more likely be used as the angle between two points (say maybe a caster and the target?)

JASS:

function Actions takes nothing returns nothing
    local unit U = GetTriggerUnit()
    local unit Target = GetSpellTargetUnit()

    call KnockbackUnit(Target, Atan2(GetUnitY(Target)-GetUnitY(U), GetUnitX(Target)-GetUnitX(U)), 500.00, 15.00, true)

    set U = null
    set Target = null
endfunction

Also, you might want to mention in the readme that there is no internal pausing of the unit in the system and that users ought to make sure to do it themselves.

Out of curiosity, what happens when you initiate a knockback on a unit that is already being knocked back? Does the system bug out at all (I think KnockbackStop would)?

03-31-2008, 12:53 AM

#10

Rising_Dusk

Quote:

Originally Posted by Pyrogasm

Out of curiosity, what happens when you initiate a knockback on a unit that is already being knocked back? Does the system bug out at all (I think KnockbackStop would)?

Nope, it doesn't. It functions the same way as vector addition of two velocity vectors. One is pointed in the direction of the first KB call, the next in the direction of the second one. Each has individual magnitudes, cleans up accordingly, and works perfectly. Even the Stop works, since it clears all instances where the unit exists as a target. (That means it stops multiple vector knockbacks if they exist)

Quote:

Originally Posted by Pyrogasm

Ah, but how often will someone call the function with a static angle argument? Wouldn't it more likely be used as the angle between two points (say maybe a caster and the target?)

It's tough to say that for all users, though. I know a few people myself who use wrappers to put things into degrees so they can then be used in conjunction with SetUnitFacing (Which takes degrees as an argument).

Quote:

Originally Posted by Pyrogasm

Also, you might want to mention in the readme that there is no internal pausing of the unit in the system and that users ought to make sure to do it themselves.

No need, SetUnitPosition functionally blocks all external commands. It works like a pause without removing the unit's command card, which is a big plus.

Updated, by the way.

03-31-2008, 03:00 AM	#11
moyack	ahHAAA!!! using my technique of calling random creeps to attack your hero!!! How dare you :P One question: why you stop the timer when there's no units to move? to improve performance??? that's not necessary, and you save code. Even better, you can replace (optionally) the timer with a periodic trigger. But, in general, I see no other issue.

03-31-2008, 03:45 AM

#12

Pyrogasm

Quote:

Originally Posted by Rising_Dusk

No need, SetUnitPosition functionally blocks all external commands. It works like a pause without removing the unit's command card, which is a big plus.

That's what I get for not actually testing the map, eh?

Quote:

Originally Posted by Rising_Dusk

Meh; it's a moot point anyway.

Quote:

Originally Posted by Rising_Dusk

I understand how they would add... I just really didn't think about it. If you really wanted to make this system perfect I would say to consolidate all knockbacks on any one unit at any time to a single knockback, so that way the system does less work. Not exactly a requirement, though.

Quote:

Originally Posted by Moyack

One question: why you stop the timer when there's no units to move? to improve performance??? that's not necessary, and you save code. Even better, you can replace (optionally) the timer with a periodic trigger.

No, it's good that he does it the way he does. You don't want a fast timer like that running when you don't need it.

On that note, I shall approve this! One question though: how did you update your post without the "last edited by" message? Special Admin edits?

03-31-2008, 04:02 AM

#13

Rising_Dusk

Quote:

Originally Posted by Pyrogasm

One question though: how did you update your post without the "last edited by" message? Special Admin edits?

I don't know. I seem to be the only admin that happens with, but I have no idea why it works like that, I probably broke something. >_<

Quote:

Originally Posted by moyack

Periodic triggers use timers internally, so it's always more efficient to directly use a timer. Also, I stop the timer because there's no sense having it run when it isn't needed.

Quote:

Originally Posted by Pyrogasm

On that note, I shall approve this!

Yay!

03-31-2008, 08:43 AM	#14
Fulla	Would be neat if you added a little collision causes knockback, i.e. when a unit is sliding back and knocks into another unit, it causes it to get knockbacked aswell.

03-31-2008, 06:17 PM

#15

Deaod

hmm, i wonder what happens when units are pushed over the edge of a pathing type (eg: from floatability to walkability). The Effect shouldnt change, afaics. nvm, just noticed the if statement in the uptdate function.

Besides, from reading i would say, that units will move far too fast, youll have to replace (n.Speed) with (n.Speed*TimerInterval) to make it userfriendly, or you put into the readme, that users have to pass (desiredspeed * TimerInterval). Same applies to decrement.
